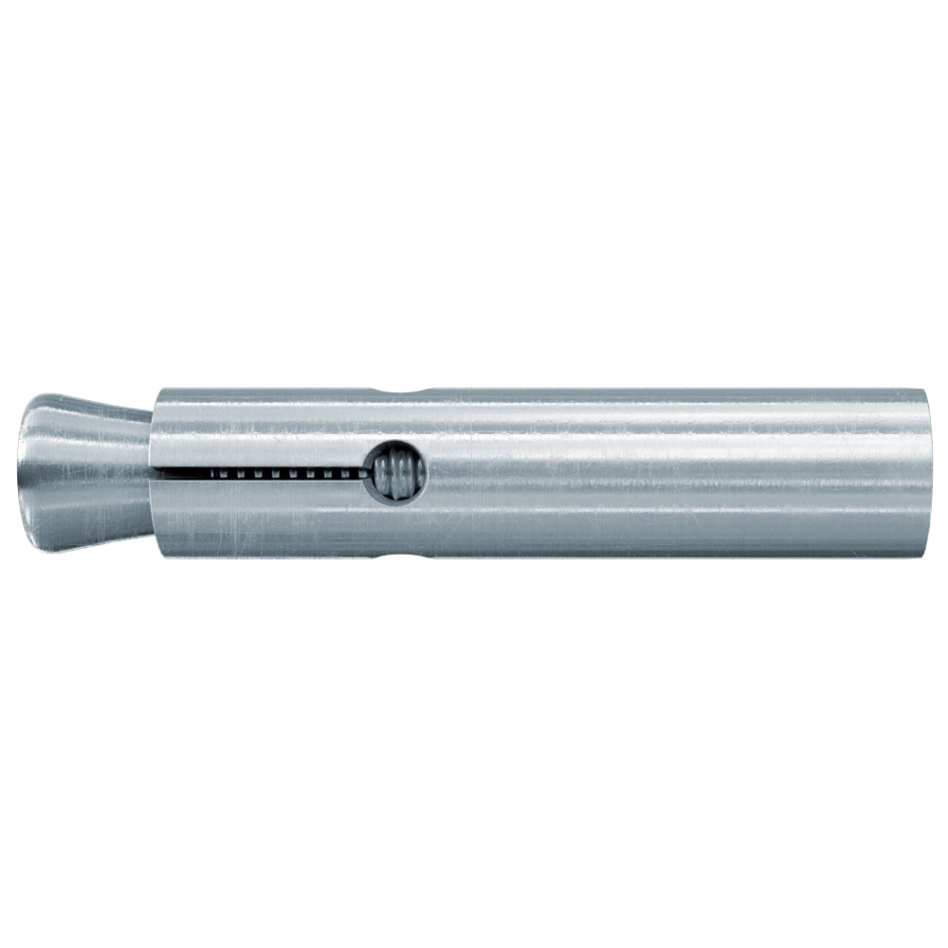

Fischer Zykon internal thread anchor FZA-I 22 x 100 M12 I ev 060763
Special features
- The fischer Zykon impact anchor with internal thread FZA-I is an anchor made of galvanized steel
- In one work cycle, the back-cutting borehole is drilled with the special drill bit FZUB
- The back-cutting anchor is installed using the time-saving pre-drilling method
- With the mounting aid FZE Plus, the expansion sleeve is pulled over the cone and completely fills the back-cutting borehole
- The fischer Zykon impact anchor with internal thread FZA-I is ideal for fastening steel structures, ceiling installations, and consoles indoors in cracked concrete
- The impact anchor with internal thread for the very best safety in cracked concrete
- Maximum safety through matching connection
- High degree of flexibility due to the use of standard metric bolts and threaded rods
- Disassembly possible directly at the surface
- Fast assembly without changing tools
- This saves time and costs
- ETA approval for cracked concrete and fire resistance class R 120
- The special ZYKON undercut technology enables a position-fit connection and guarantees optimal safety, even with large cracks
- The metric internal thread allows the use of standard screws or threaded rods for ideal adaptation to the intended application
- FZA enables flush removal from the surface and reuse of the fastening point, thereby offering optimal flexibility
- Furthermore, ZYKON undercut anchor FZA-I offers all the advantages of FZA
- FZA-I with internal thread is suitable for through-hole mounting
- The undercut bore is made using the special FZUB drill bit
- After placing the anchor in the drill hole, the anchor sleeve is inserted through the cone using the FZED Plus mounting aid; the undercut drill hole is filled with a positive form fit
Technical data
- Approval: Yes
- DIBt approval-relevant
- Required drill bit: FZUB22 x 100
- Required mounting aid: FZE plus/FZE 22 plus
- Min. screw-in depth: 15mm
- Max. Screw-in depth: 25mm
- Packaging unit: Box
Applications
- Concrete C20/25 to C50/60, cracked and uncracked
- Concrete C12/15
- High-density natural stone
Standard included
- 10 Pieces
