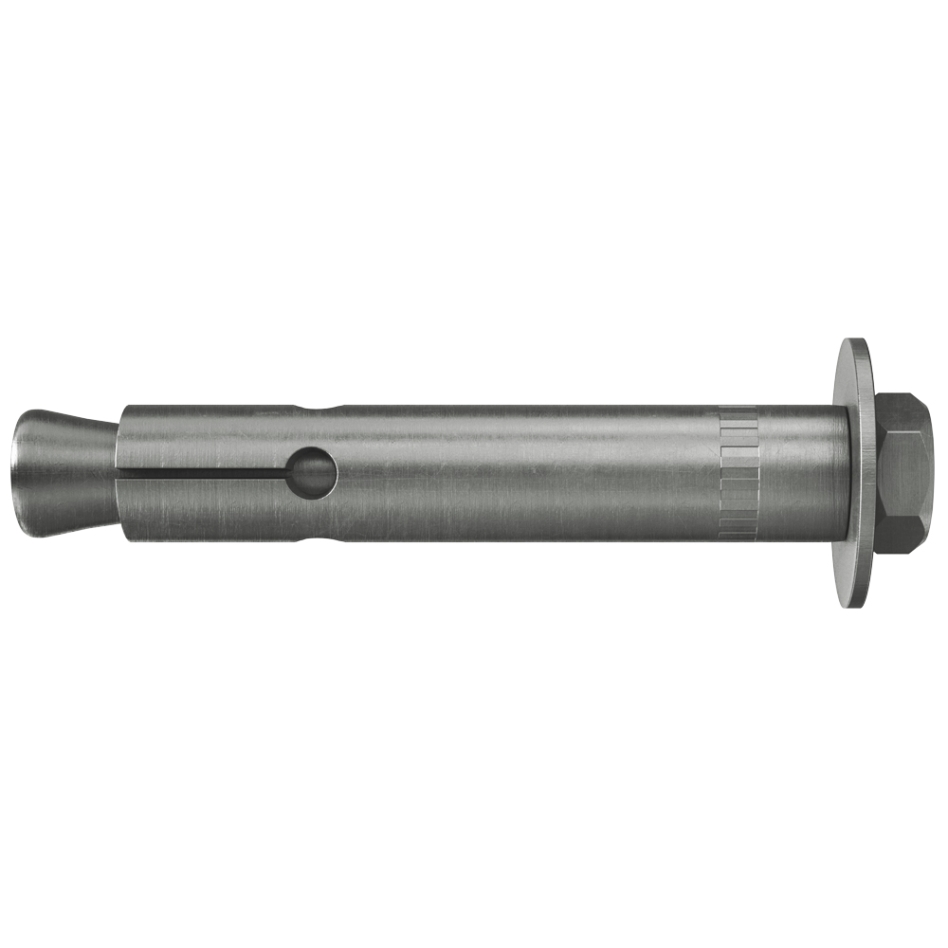

Fischer Zykon through-hole anchor FZA-D 18 x 130 M12 D/50 A4 060673
Special features
- The fischer Zykon through-hole anchor FZA-D is a stainless steel anchor
- In one work cycle, the back-cutting borehole is drilled with the special drill bit FZUB
- The back-cutting anchor is placed in the through-hole mounting
- With the mounting aid FZE Plus, the expansion sleeve is pulled over the cone and completely fills the back-cutting borehole
- The fischer Zykon through-hole anchor FZA is ideal for fastening facades, railings, and steel structures outdoors in cracked concrete
- The Zykon anchor made of A4 stainless steel for through-hole mounting in cracked concrete
- Maximum safety thanks to matching connection
- Small edge and axial distances due to expansion-pressure-free mounting
- Fast mounting without changing tools
- This saves time and costs
- For time-saving through-hole mounting
- Made of stainless steel for outdoor fastenings
- The special ZYKON undercut technology enables a position-fit connection and guarantees optimal safety, even with large cracks
- The virtually expansion-pressure-free installation of the anchor allows for small edge and axial distances, enabling flexible use
- The FZUB special drill enables fast installation through an undercut without the need to change tools
- The geometry of the drill hole allows for very low insertion energy and thereby reduces the energy required for installation
- The ideal interaction of bolts and threaded sleeve with FZA-D allows for higher shear loads and therefore fewer fastening points
- FZA-D suitable for push-fit mounting
- The undercut borehole is made using the special FZUB drill
- After placing the anchor in the borehole, the anchor sleeve is inserted through the taper using the FZED Plus mounting aid; the undercut borehole is filled with a positive form fit
Technical data
- Approval: Yes
- Required drill FZUB18 x 130
- Required mounting aid: FZE plus/FZE 18 plus
- Anchor length: 156mm
- Max. Thickness of attachment part: 50mm
- Thread: M12
- Wrench size: 19mm
- Packaging unit: Box
Applications
- Concrete C20/25 to C50/60, cracked and uncracked
- Concrete C12/15
- High-density natural stone
Standard included
- 10 Pieces
