Fischer 59063 Spacer Screw ASL 6 x 120 electro-galvanized steel 100 pieces
The spacer screw for flexible positioning and alignment of wooden fasteners.
Special features

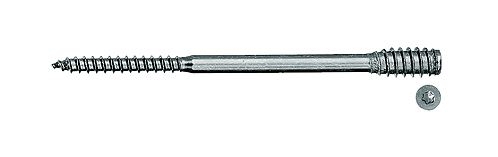

- The fischer Spacer Screw ASL is a special screw made of galvanized steel with two threads matched in pitch, for precise and time-saving spacer mounting.
- The special screw is installed using through-hole mounting.
- When screwing in the screw, the outer thread digs into the pre-drilled mounting piece and secures it.
- If the screw is installed at an angle of 15 - 30°, higher transverse loads can be accommodated.

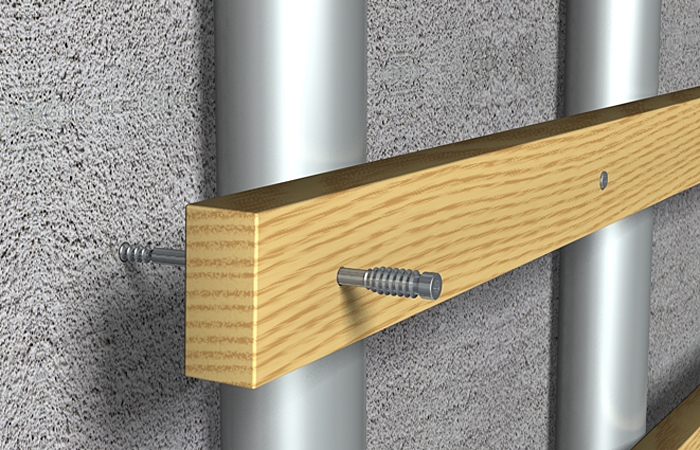

- The fischer Spacer Screw ASL is ideal for installing wooden window and door frames, cladding, and substructures without the need for plugs in wood and to fasten wood materials.
Advantages
- The coordinated threads combined with the same spacing enable pin-point fastening and alignment of the fastener, which can be mounted on the screw even at an angle.
- This allows for precise and flexible fastening.
- During installation, the fastener is not pulled on the surface, but is brought directly to the desired distance and position.
- This allows for quick and easy installation.
- It can be used in combination with SX 8 and UX 8 plugs for virtually all wall materials, guaranteeing a secure fastening.
Key features
- Precise fastening even with angled mounting pieces.
- Simple spaced mounting using two threads with the same pitch.
- Fastening in solid building material using the fischer Plug SX and in perforated building material with the fischer Universal Plug UX.
- Flexible use in wood and wood materials and in solid and hollow mineral building materials.
Applications
- Window frames Door frames Framing Cladding Wooden substructures.
Building materials
- Without plug: suitable for wood and wood panels With SX or UX plugs: all types of concrete and masonry.
Mounting
- The ASL is suitable for through-hole mounting.
- Pierce the fastener at the desired angle to achieve correct positioning and alignment.
- During tightening of the screw, the external thread cuts into the pre-drilled fastener and secures it in the specified position.
- The angled position of the screws (15° - 30°) allows for high shear loads.
Technical data
- Bore hole diameter d0 8 [mm]
- Min. drill hole depth h1 55 [mm]
- Max. distance a 75 [mm]
- Screw dimensions ds x ls 6 x 120 [mm]
- Recording T25
Supplied as standard
- 100 pieces
