Fischer 577365 HybridPower plug 10x90 T 50ST

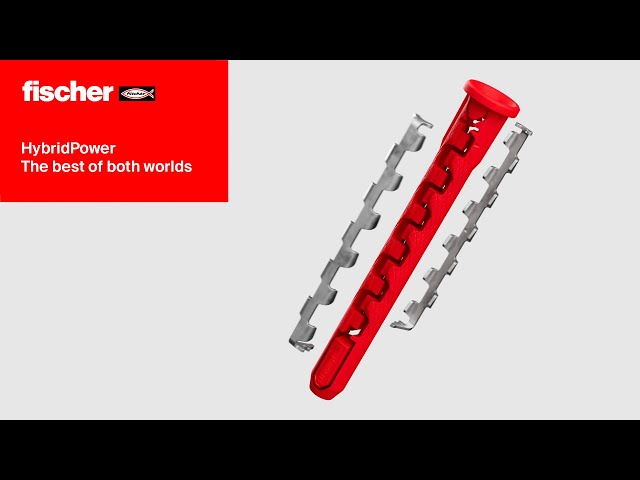

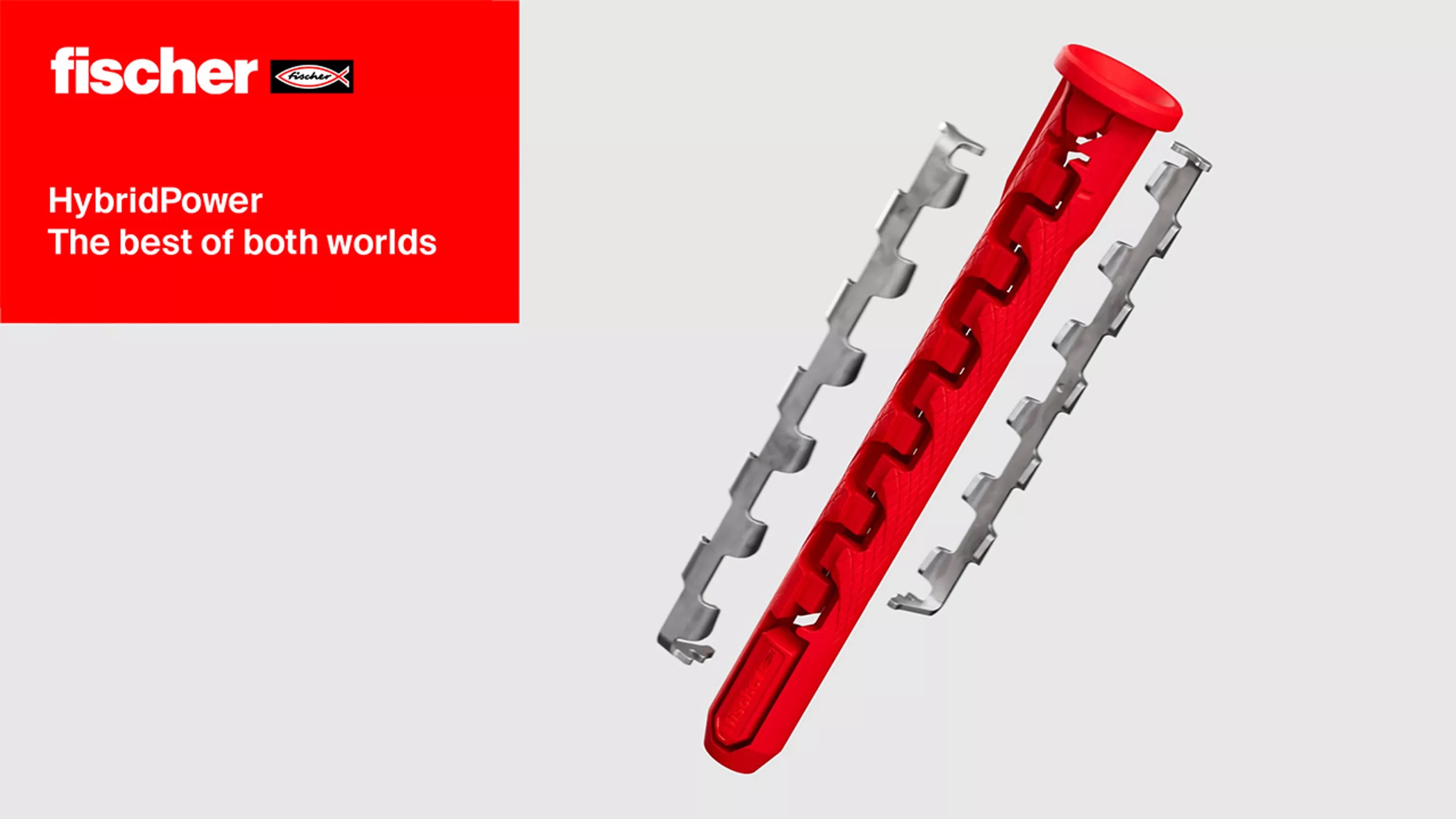

The fischer HybridPower combines the best of two worlds: the flexibility of a plastic plug with the strength and safety of a steel anchor. Thanks to the combination of both materials, the HybridPower is installed like a traditional plug and is suitable for use in all building materials. At the same time, it offers a high load capacity and secure anchoring, even in the event of a fire. The range is suitable for metal and wood fastenings up to Ø 10 mm. The plug is suitable for both head and through-hole installation.
Special features
- The HybridPower can be installed quickly and easily, just like a standard plastic plug. It can be installed by hand and no special tools or torque wrenches are required.
- Thanks to the metal component, the plug also holds heavy loads and offers high load capacity and extra safety.
- The HybridPower is universally applicable and suitable for both solid and hollow building materials. The flexible plastic expands in any building material.
- Furthermore, the metal component is fire-resistant and offers certified safety in the event of a fire.

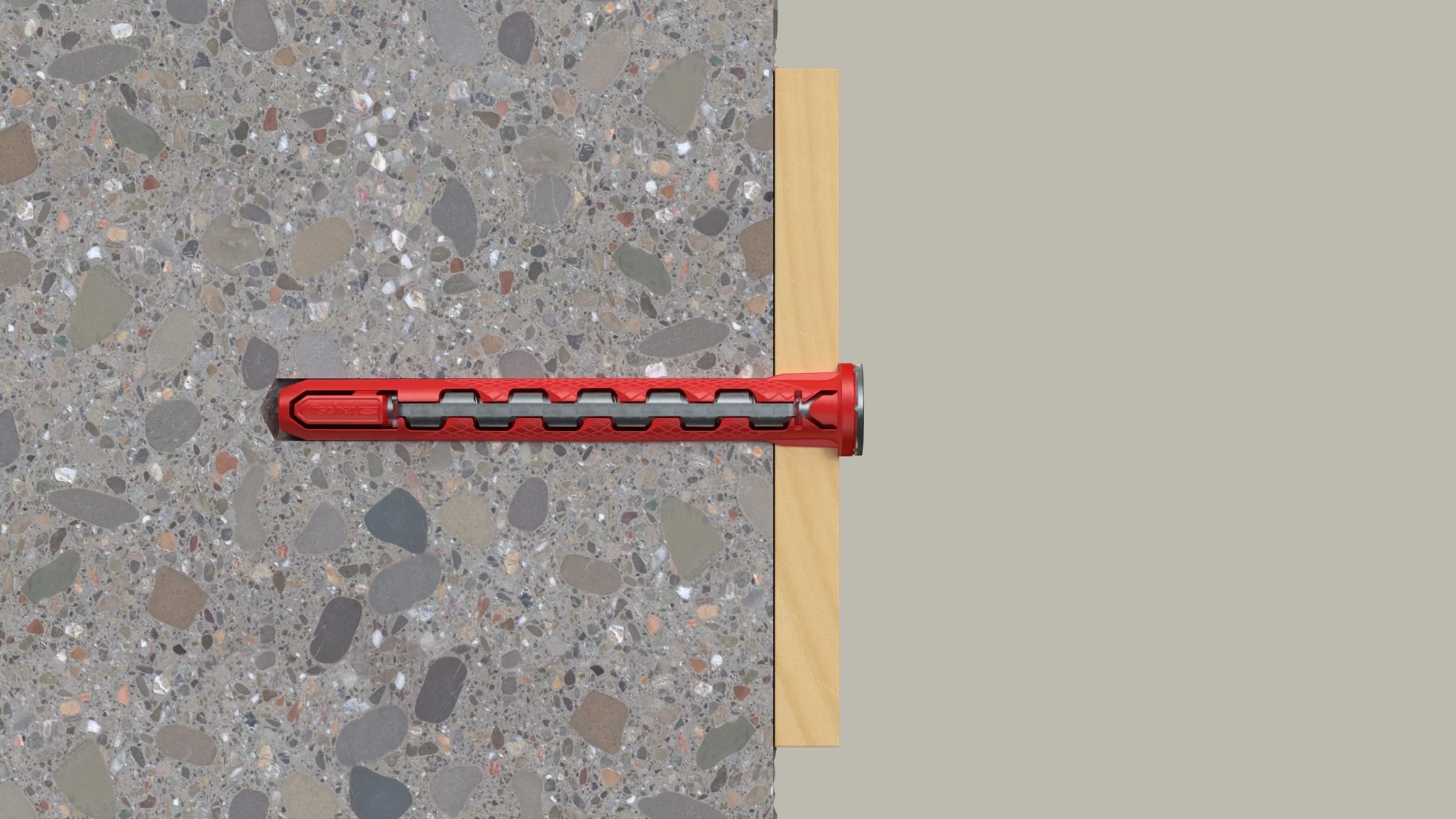

- The universal screw head allows for both pre-drilling and through-drilling, thereby offering maximum flexibility in application.
- The included screw ensures a neat and flush finish of the fastening point, without protruding threaded ends.
- The fastening point can be released at any time by simply removing the screw.
Technical data
- Drill diameter: 10 mm
- Plug length: 90 mm
- Min. Drill hole depth for through-hole mounting: 90 mm
- Screw size: 7.0 x 87 mm
- Min. drill hole depth: 90 mm
- Min. anchoring depth: 70 mm
- Max. thickness of attachment part: 10 mm
- Shaft: TX40
- Quantity: 50 pieces
