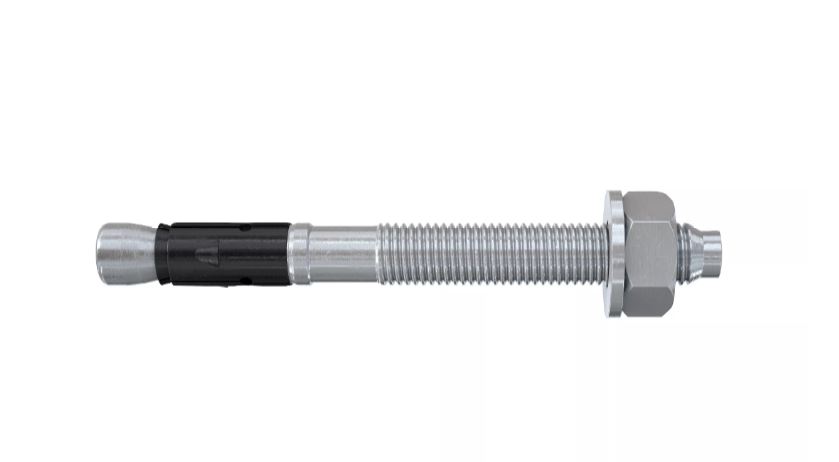

Fischer 564588 Through-anchor FAZ II Plus 12/30 EV (12x130) electro-galvanized steel 20 pieces
Features
- Fast and easy installation without borehole cleaning (M8-M24). Numerous certifications for various substrates (concrete C12/15 to C80/95, fiber-reinforced concrete, solid sand-lime brick) for a very wide range of applications.
- With the new ETA certification, tensile strengths have increased significantly. This results in fewer fastening points and therefore fewer anchors being required. The new ETA confirms the use of the FAZ II Plus for dynamic loads for diameters M16-M24.
- The quick installation of the FAZ II Plus offers an efficient fastening solution for dynamic applications (M16-24) and is also immediately loadable. The ETA certification, together with other test reports (RWS, ZTV, and ETK), guarantees high fire loads. An independent external assessment guarantees a service life of up to 120 years. This ensures the FAZ II Plus lasts forever, making it perfectly suited for large construction projects where a long service life is required (M10-M16). The FAZ II Plus absorbs high seismic loads of performance categories C1 and C2 for diameters M10-M24. The use of the FFD filler ring is optional. The variable anchoring depth allows for millimeter-accurate adjustment to the load. The first M6 segment anchor with ETA Option 1 certification guarantees secure anchoring. The FAZ II Plus through-anchor is the steel anchor of choice for the highest demands with high tensile loads for a wide range of applications. With this steel anchor, heavy loads can be secured in cracked concrete.
- The FAZ II Plus is easier and faster to install due to the elimination of borehole cleaning (applies to M8 - M24). The proven expansion clip safely transfers loads into the concrete and enables a high load-bearing capacity that is immediately loadable. The steel anchor is ideal, for example, for anchoring railings, heavy cable trays, and consoles.
Technical data
- ICC approval
- Seismic certification C1 / C2
- Drill diameter (d0) 12 mm
- Min. borehole depth with through-hole mounting (h2) 120 mm
- Max. useful length lift, stand/lift, red (tfix) 30 / 50 mm
- Anchor length 130 mm
- Thread (Ø x Length) M12 x 81 mm
- Wrench width 19 mm
- Tightening torque (Tinst) 60 N·m
Scope of delivery
- 20 pieces
