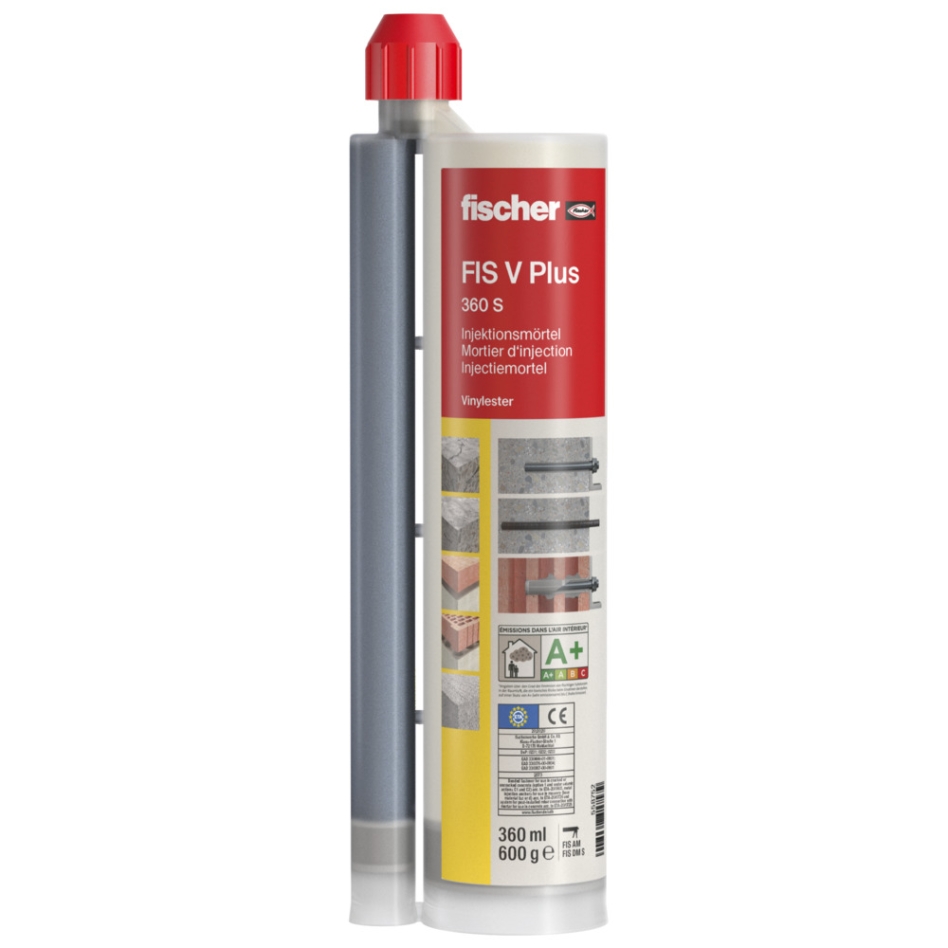

Fischer Injection Mortar FIS V Plus 360 S 558752 1 piece
The versatile injection mortar for installation in cracked concrete and masonry. The fischer Injection Mortar FIS V is the universal all-rounder that meets the highest demands. The styrene-free vinyl ester hybrid mortar is the world's first system approved for fastenings in perforated brick, solid brick, concrete, and aerated concrete. The injection mortar system is highly suitable for fastening approved system components such as threaded anchors, internal threaded impact anchors, and injection anchor sleeves in concrete, aerated concrete, and masonry, both indoors and outdoors. However, the powerful fischer Mortar FIS V is also used with the approved system components for reinforcing bars, the fischer Renovation Anchors VBS8, the Weather-Resistant Reconstruction System FWS, and the Thermax Stand-Off Mounting System.
Benefits
- The FIS V injection mortars are approved for many systems, such as in cracked and uncracked concrete, masonry, and for connections to reinforcing steel. As a result, FIS V is the universal injection mortar family with guaranteed safety for virtually every application.
- FIS VW HIGH SPEED has a substantially shorter curing time than FIS V and therefore ensures rapid progress of work even at low temperatures.
- FIS VS LOW SPEED, with a longer working time, prevents premature curing of the mortar at higher temperatures and is ideally suited for deeper boreholes.
- The extensive range of accessories is optimally matched to the FIS V injection mortar family, increases the high degree of flexibility of the system, and thereby enables a wider spectrum of applications.
Characteristic properties
- ETA approval for reinforcing bars.
- Highest load capacity for significantly greater safety
- Spread pressure-free fastening for small edge and axial distances.
- Extensive system accessories.
- Worldwide the first injection mortar system with approvals for all relevant construction materials.
Applications
- Steel structures, Timber structures, Handrails, Facade systems, Stairs, Steel consoles, Machinery, Masts, Awnings, Fencing, Consoles, Pipelines, Laminations, Satellite antennas,
- Approved for anchorages in: Concrete C20/25 to C50/60, cracked and uncracked, Hollow lightweight concrete block, Hollow concrete block, Perforated brick, Perforated sand-lime brick, Solid sand-lime brick, Cellular concrete, Solid brick, Approved for: Bonding, Renovation anchor VBS 8, Renovation system FWS II, Thermax thermal separation. The details (construction materials, loads, etc.) of the available approval apply.
- Approval ETA-02/0024 ETA-08/0266 DoP No. 0007 DoP No. 0007 - EN DoP No. 0026 DoP No. 0027 DoP No. 0027 - EN DoP No. 0072 DoP No. 0094 DoP No. 0094 - EN DoP No. 0126 DoP No. 0756-CPD-0301 DoP No. 0756-CPD-0303 ESR-2786 3538/8141-3 -Nau- EPD-FIS-20130268-IBG1-DE
Installation
- FIS V is a 2-component injection mortar based on vinyl ester hybrid.
- The resin and hardener components are stored in two separate chambers and are only mixed and activated when squeezed into the mixing nozzle.
- The mortar is injected from the bottom of the borehole without air bubbles. The mortar bonds the fastening element to the wall of the drill hole with its entire surface, thus sealing the hole.
- The injection cartridges can be used with little effort and particularly quickly in combination with fischer caulking guns.
- Opened cartridges can be reused when the mixing nozzle is replaced.
Technical data
- DIBt approval
- Approval Languages on the label D, F, NL, TR, H, UAE
- I
