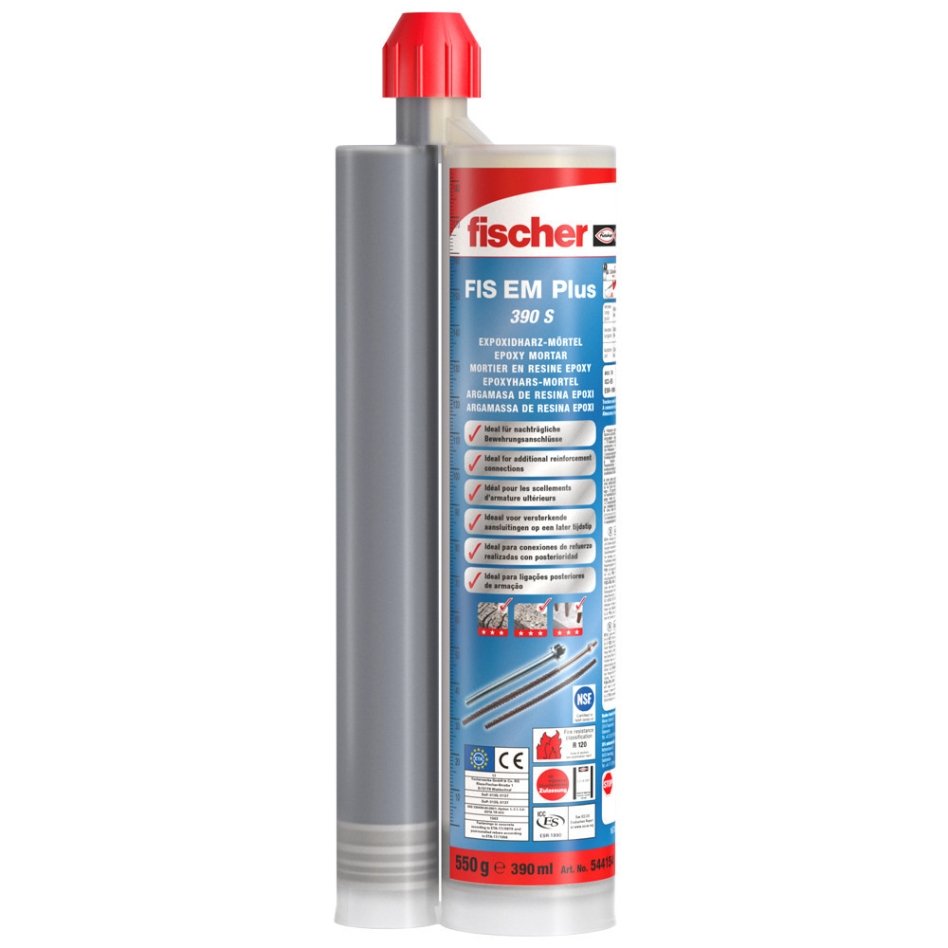

Fischer Injection Mortar FIS EM Plus 390 S 544154 1 piece
The strong injection mortar for reinforcing bars and cracked concrete. The fischer Injection Mortar FIS EM 390 S is a high-quality epoxy mortar with the best load-bearing capacity in cracked and uncracked concrete. In addition to the injection mortar, the injection system consists of reinforcing wire, the approved Threaded Rod FIS A, and the Impact Anchor with internal thread RG M I. The Threaded Rod FIS A can be installed at various anchoring depths. This allows the system to be optimally adapted to the load to be applied and improves material utilization. The epoxy resin mortar can be used for both indoor and outdoor fastenings, i.e. for filler concrete connections, high racking, or heavy steel structures.
Advantages
- The high bond strength and minimal shrinkage of the mortar allow for high loads in cracked and uncracked concrete, even with large threaded rod diameters up to M30.
- Variable anchoring depths of 4 to 20 times the diameter of the threaded rod enable ideal adaptation to the applied load and optimal installation and material utilization.
- FIS EM is also approved for holes drilled with diamond drills and water-filled boreholes, which guarantees greater flexibility on the construction site. The extensive range of approved steel types enables use in all corrosion resistance classes and provides the best possible operational reliability.
Characteristic properties
- Approved for retrofitted reinforcement bars.
- Approved for cracked concrete, including seismic loads.
- Installation in water-filled boreholes.
- Fastening in holes drilled with hammer and diamond drills.
- No borehole cleaning required when using a hollow drill, this saves time.
Applications
- Retrofitted reinforcement bars, Concrete-to-concrete connections, Edge anchorages, Seismic applications, Anchorages in diamond-drilled or water-filled drill holes, Heavy steel structures, Silo installations, High-rise racking, Sound insulation walls, Temporary or removable fixings (with internal threaded anchor RG MI), Building materials.
- Approved for anchorages in: Concrete C20/25 to C50/60, cracked and uncracked Also suitable for: High-density natural stone The details (building materials, loads, etc.) of the available approval apply.
- Approval ETA-09/0089 - Bewehrungsanschluss ETA-10/0012 ETA-10/0012 ETA-10/0012 DoP No. 0012 DoP No. 0012 - EN DoP No. 0021 DoP No. 0021 - EN DoP No. 0079 DoP No. 0079 - EN DoP No. 0088 DoP No. 0756-CPD-0324 ESR-1990 GS 3.2/13-104-1 Ä EPD-FIW-20130107-IBE-1DE Technisches Datenblatt
Installation
- The epoxy mortar FIS EM is suitable for pre-drilling and through-drilling and can be used in combination with the threaded rod FIS A or the internal threaded impact anchor RG MI.
- The resin and hardener components are stored in two separate chambers and are only mixed and activated when the injection cartridge is squeezed into the mixing nozzle.
- The mortar is injected from the bottom of the borehole without air bubbles.
- The mortar adheres the fastening element with its entire surface against the wall of the borehole, thus sealing the hole.
- The fastening element is applied by hand while rotating it slightly until the bottom of the drill hole is pressed.
- During through-hole mounting, the ring gap between the threaded rod and the mounting piece is filled with FIS EM.
Technical data
- DIBt approval
- Languages on the label D, GB, F, NL, E, P
- Contents 1 cartridge 390 ml, 2 x mixing nozzle FIS MR Plus
Standard included
- 1 piece
