Fischer 542106 RODFORCE FGD M6 x 35 50 pieces

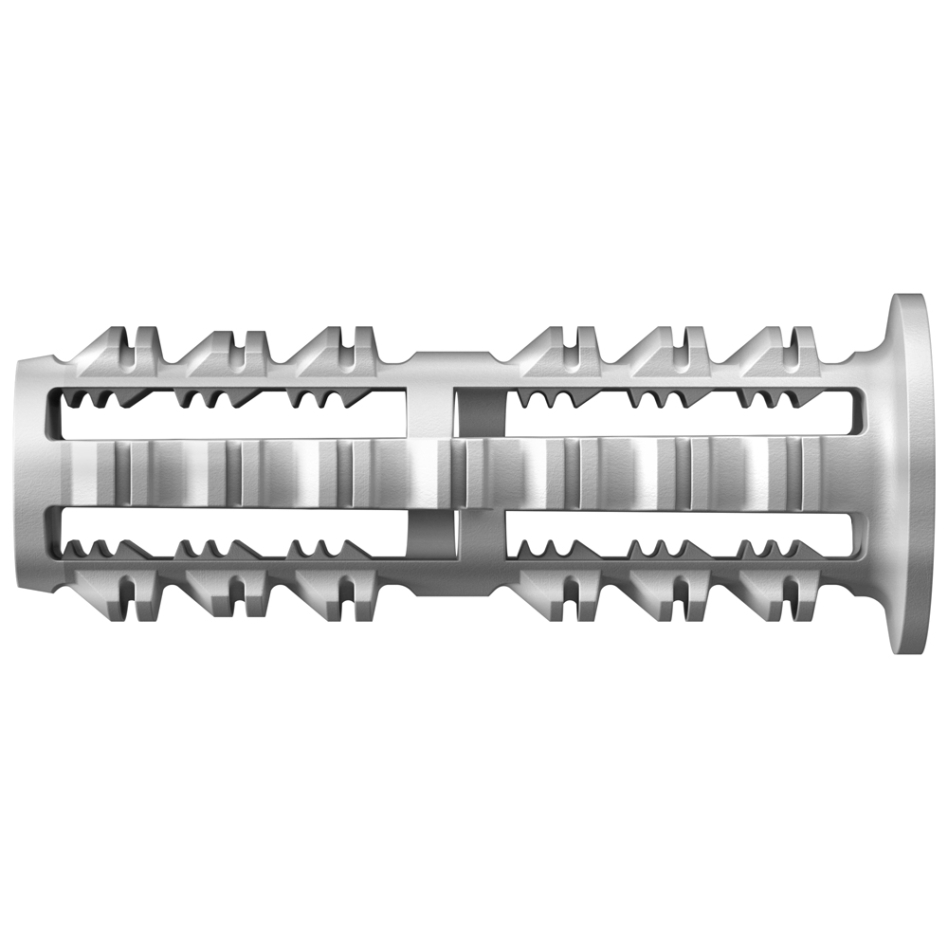

The Fischer RODFORCE FGD M6x35 is an economical choice for fastening metric threaded rods in solid substrates. The threaded rod and nylon plug can be installed quickly and easily with just a few hammer blows. The short plug length prevents rebar from being hit and reduces drilling time. The closed tip indicates the anchoring depth, but the threaded rod can also be driven through the tip to set the protruding thread.
Advantages
- The innovative design allows for quick and easy installation of the threaded rod
- The short plug length prevents hitting rebar during installation
- The internal serration allows the use of standard metric threaded rods, studs, and bolts. This eliminates the need to keep a wide range in stock.
- Installation without special tools; a hammer is sufficient
- The collar of the plug acts as a visual check. If it is flush with the surface, the plug is correctly installed.
- Easy to adjust: the tip of the plug can be pushed through, allowing the threaded rod to be inserted deeper.
Applications
- Concrete
- Solid sand-lime brick
- Solid brick
Building materials
- The RODFORCE can be applied in 2 ways; Place the plug on the threaded end and then hammer it into the drill hole, or place the plug in the drill hole and hammer in the threaded end.
- Once the threaded end is in place, the plug clamps itself against the wall of the drill hole, creating a solid connection.
- The serration in the plug corresponds exactly to the metric pitch, ensuring a form-fitting fit during installation.
- The unique design of the outer surface guarantees excellent grip on the wall of the drill hole.
Technical data
- Drill diameter: 10 mm
- Min. drill hole depth: 40 mm
- Plug length: 35 mm
- Contents: 50
