Fischer Clamping Sleeve FNH 6/60 541897 100 pieces
The easy-to-install clamping sleeve for light fastenings in solid material. The fischer FNH clamping sleeve is an easy-to-install clamping sleeve made of steel with a corrosion-protective coating. The FNH clamping sleeve is hammered into place in a time-saving manner during through-hole mounting and clamps against the wall of the drilled hole along its entire length. This allows for the low-cost fastening of wooden and metal substructures, metal profiles, and solid timber indoors and temporarily outdoors.
Advantages
- No plugs or screws are required for the single clamping sleeve.
- This ensures easy installation.
- Thanks to the geometry of the clamping sleeve, it can be easily pressed into the drill hole.
- This saves time and money.
Characteristic features
- Hammer it in – done.
- Fastening without screws and plugs.
- This saves time and reduces costs.
Applications
- Ratting, Wooden and metal substructures, Metal profiles
Building materials
- Concrete, Solid sand-lime brick, High-density natural stone, Solid brick.
Mounting
- The FNH clamping sleeve is suitable for through-hole mounting.
- When driving in the clamping sleeve, it tensions against the borehole wall over the entire mounting depth.
- FNH is suitable for interior applications and for temporary exterior fixings.

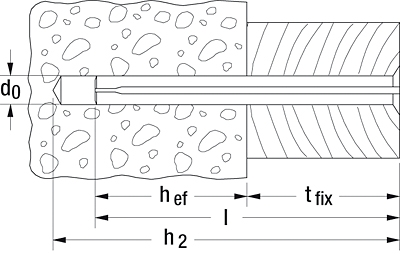

Technical data
- Borehole diameter d0 6 [mm]
- Effective anchoring depth hef 30 [mm]
- Plug length l 60 [mm]
- Max. thickness of attachment part t fix 30 [mm]
- Min. borehole depth for through-hole mounting h2 70 [mm]
Standard delivery
- 100 pieces
