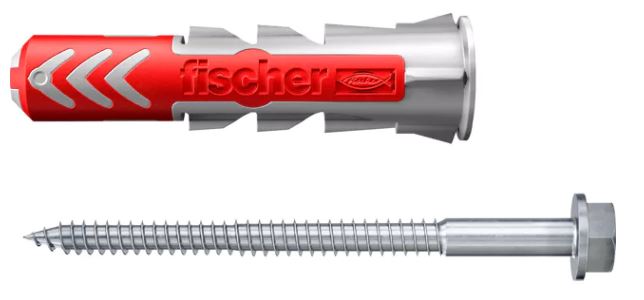

Fischer 538258 DuoPower plug 12x60 with hexagon screw 10 pieces
Special features
- Two material components for the best load ratings and smart functions, depending on the substrate.
- Best possible response (feel-good factor) of the plug. You can feel when the plug is perfectly installed.
- The narrow rim of the plug prevents it from sliding too far into the drill hole.
- The distinct anti-rotation feature prevents the plug from rotating.
- Due to the greater anchoring depth, the plug is particularly well-suited for fastenings in perforated building materials, aerated concrete, and bridging plaster layers.
Function
- The DuoPower is suitable for both head and through-hole mounting.
- The Duo, consisting of two materials and multiple operating principles (folding, spreading, knotting), allows for an expansion of the application spectrum in additional building materials subject to maximum loads.
- The required screw length is calculated as the length of the plug + thickness of the mounting piece + 1 x the diameter of the screw.
- Suitable for wood, chipboard, and lag screws.
- For sheet material, the part of the screw without thread must not exceed the mounting piece
Technical data
- Drill diameter (d0) 12 mm
- Min. drill hole depth (h1) 85 mm
- Min. sheet thickness (dp) - mm
- Plug length (l) 60 mm
- Min. screw-in depth (lE,min) 68 mm
- Chipboard screw (ds) 8.0 x 80 mm
- Recorder Hexagon

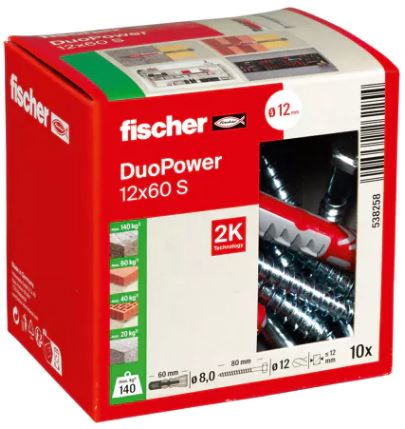

- Contents 10 x DuoPower 12 x 60, 10 x hexagon screw 8.0 x 80
- Type of packaging Box
