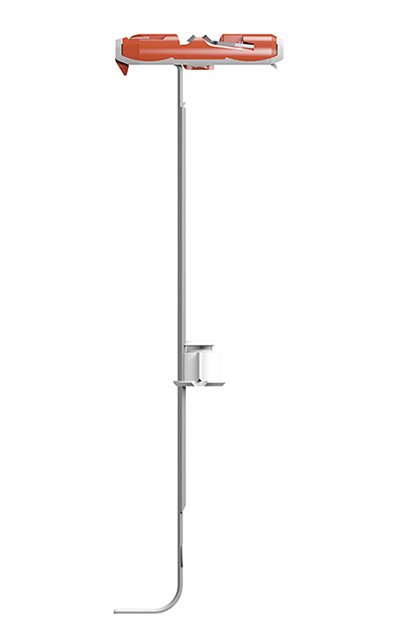

Fischer 537258 Duotec Hollow Wall Plug 50 pieces
Operation
- The DUOTEC is suitable for through-hole mounting
- Easy to install using a standard 10 mm drill bit.
- The resilience of the nylon ensures that the short crossbar expands behind the panel material. When drilling into solid materials such as concrete and wood, the DUOTEC acts as an expansion plug.
- The flexible screw adapter (stainless steel A2) allows the use of both wood and chipboard screws, as well as metric bolts and studs.
- The short crossbar simplifies installation, even in thin and insulated walls (≥ 40 mm).
- The combination of hard fiber-reinforced plastic and soft nylon allows for significantly higher loads compared to conventional hollow wall plugs, without damaging the panel material.
- If you accidentally drill into solid material, the DUOTEC can also be used as an expansion plug.
- The flexible screw adapter (stainless steel A2) allows the use of wood and chipboard screws, as well as metric bolts and pins.
- The white collar made of fiber-reinforced plastic can withstand exceptionally high shear loads.
- Very easy to install with a drill hole diameter of only 10 mm.
- No special mounting tools or accessories are necessary, making the DUOTEC suitable for use anytime and anywhere.
- The short crossbar simplifies installation, even in thin and insulated walls (≥ 40 mm).
Building materials
- Gypsum board
- Gypsum fiber board
- Wooden boards (e.g. OSB, chipboard, MDF, etc.)
- Steel sheet
- Plastic sheets
- Also suitable for: Solid materials such as concrete and wood
Applications
- Hanging kitchen cabinets
- Wall cabinets
- Bookshelves
- Wardrobes
- Handrails
- Paintings
- Mirrors
- Lamps
Technical data
- Drill hole diameter: 10 mm
- Min. board thickness 9.5 mm
- Max. Plate thickness 55 mm
- Min. cavity depth 40 mm
- Min. borehole depth LS + 10 mm.
- Plug length 47 mm.
- Screw thickness: 4.5 - 5/M5 mm
Standard delivery
- 50 pieces
