Fischer DUOPOWER 6x30 PH LD with cylinder head 535463
Special features
- The fischer DUOPOWER has a very high fastening value thanks to the 2 components: The grey component made of high-quality nylon automatically activates the optimal operating principle (spreading, tapping, knotting) depending on the building material for optimal hold
- The expansion wings of the red component support reliable spreading and offer extra security for the grey component
- Simply screw in the screw and finally “tighten” properly
- Do not overtighten the screw
- The rim fitted at the head prevents the plug from slipping into the drill hole
- The supplied screws with Panhead are perfectly matched to the fischer DUOPOWER expansion plug
- The powerful All-rounder
- A combination of two material components for more power
- Reliable functions for solid (spreading) and hollow and panel materials (tapping/knotting)
- Easy installation: plug with a narrow rim that prevents the plug from sliding too far into the drill hole
- Best possible plug response - you can simply feel that it fits perfectly
- With matching panhead screw 4.5 x 40 for a perfect hold
- The combination of 2 materials and 3 operating principles makes the DUOPOWER the right plug for all conditions
- The plug activates the optimal operating principle - spreading, folding, knotting - depending on the substrate.
- Best possible feedback from the plug; it is clearly felt when the screw is properly tightened
- The thin collar prevents the plug from disappearing into the drill hole when used in hollow walls, while through-hole mounting is still possible remains
- The serrated anti-rotation wings prevent the plug from rotating in the drill hole during installation
- The DUOPOWER is suitable for both through-hole and butt mounting
- The Duo, made of two materials and featuring multiple operating principles (folding, spreading, knotting), allows for an expansion of the application spectrum in additional building materials subject to maximum loads
- The required screw length is the result of the length of the plug + thickness of the mounting piece + 1 x the diameter of the screw
- Suitable for wood, chipboard, and dowel screws
- For sheet material, the part of the screw without thread must not exceed the mounting piece
Technical data
- Drill hole diameter: 6 mm
- Min. drill hole depth: 45 mm
- Min. plate thickness: 12.5 mm
- Plug length: 30 mm
- Min. screw-in depth: 34 mm
- Chipboard screw: 4.5 x 40 mm
- Retention: PZ2
- Max. Thickness of attachment part: 6 mm
- Packaging unit: Pieces
Applications
- Concrete
- Solid brick
- Solid sand-lime brick
- Cellular concrete
- Perforated brick
- Perforated sand-lime brick
- Gypsum board
- Gypsum board and gypsum fiber boards
- Hollow building block of lightweight concrete
- Hollow floor slabs made of bricks and concrete or equivalent
- Natural stone
- Chipboard
- Gypsum blocks
- Solid brick of lightweight concrete
Standard included
- 1 Piece

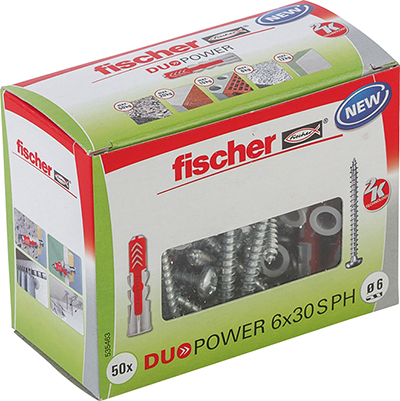

- Box with 50 x DUOPOWER 6 x 30, 50 x screw with cylindrical head 4.5 x 40
