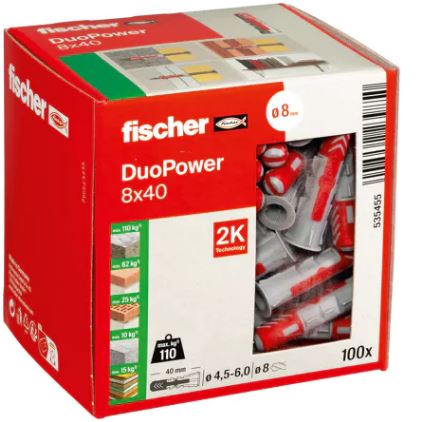

Fischer 535455 DuoPower plug 8x40 100 pieces
Special features
- The combination of 2 materials and 3 operating principles makes the DuoPower the right plug for all conditions. The plug activates the optimal operating principle – spreading, folding, knotting – depending on the substrate.
- Best possible feedback from the plug; it is clearly felt when the screw is properly tightened.
- The thin collar prevents the plug from disappearing into the drill hole when used in hollow walls, while through-hole mounting remains possible.
- The serrated anti-rotation wings prevent the plug from rotating in the drill hole during installation.
Function
- The DuoPower is suitable for both pre-drilling and through-hole mounting.
- The Duo, consisting of two materials and multiple operating principles (folding, spreading, knotting), allows for the expansion of the application spectrum to include additional building materials with maximum loads.
- The required screw length is the result of the length of the plug + thickness of the mounting piece + 1 x the diameter of the screw.
- Suitable for wood, chipboard, and lag screws.
- For sheet material the part of the screw without thread must not be longer than the mounting piece
Technical data
- Drill diameter (d0) 8 mm
- Min. bore hole depth (h1) 50 mm
- Min. plate thickness (dp) 12.5 mm
- Plug length (l) 40 mm
- Min. screw-in depth (lE,min) 46 mm
- Chipboard screw (ds) 4.5 - 6.0 mm
- Contents 100 x DuoPower 8 x 40
- Quantity 100 pcs.
- Packaging type Box
