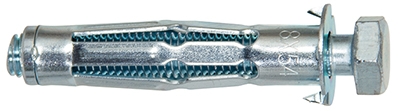

Fischer 519783 Hollow wall plug HM 8 x 54 SS with hexagon head screw 50 pieces
Features
- The fischer Metal hollow wall plug HM-SS is a versatile hollow wall plug with a hexagon screw for all sheet materials.
- The plug is inserted using the fischer Hollow wall plug pliers HM-Z 1 in the pre-drilling method.
- With the pliers, the plug is pulled into the hollow space behind the sheet material.
- The arms spread out behind the sheet material and distribute the forces over a large surface area.
- The fischer Metal hollow wall plug HM-SS is suitable for fastening lighting, shelving, light mirror cabinets, and substructures in interior construction.
Advantages
- Thanks to the extensive range, the HM is suitable for sheet material with a thickness of 3-50 mm, making it suitable for numerous applications. can be used.
- The attachment can be mounted and dismounted multiple times thanks to the metric internal thread.
- This makes the HM very flexible. The spreading arms of the HM ensure a large contact surface, allowing for high loads.
- The barbs under the collar of the plug penetrate the sheet material, preventing the plug from rotating in the drill hole and guaranteeing secure installation.
Key features
- Complete with hexagonal head screw with metric thread.
- Flexible during installation: the screw can be loosened and tightened again.
- Does not rotate: The wings (claws) on the edge of the plug hold it firmly in the sheet material.
- Holds even heavy objects in sheet material due to the large contact surface of the spreading arms.
- Suitable for through-hole mounting.
Building materials
- Gypsum board and gypsum fiber boards Channel boards Lightweight wood wool boards Chipboard Plywood
Applications
- Paintings Lamps Small shelves Towel racks Mirror cabinets Curtain rails Substructures
Mounting
- The HM hollow wall plug is suitable for through-hole mounting
- The fastening method should be selected based on the thickness of the panel material so that the arms can spread out over the largest possible surface area.
- During installation, the arms spread out and press against the back of the panel material.
- The HM can be mounted using mounting pliers.
- When using a cordless screwdriver or screwdriver, you must first remove the pre-assembled screw.
- When screwing in and spreading the arms, the mounting part or panel thickness of a maximum of 6 mm must be used to prevent the hollow wall plug from rotating in the drill hole.
Technical data
- Bore hole diameter: 12 mm
- Plate thickness 7 - 21 mm
- Plug length 54 mm.
- min. drill hole depth 60 mm.
Supplied as standard
- 50 pieces
