Fischer 519779 Hollow Wall Plug HM 6 x 80 S with Screw 50 pieces
Features
- The fischer Metal Hollow Wall Plug HM-S is a versatile hollow wall plug with a metric bolt for all sheet materials.
- The plug is installed using the fischer Hollow Wall Plug Pliers HM-Z 1 in the pre-drilling method.
- With the pliers, the plug is pulled into the hollow space behind the sheet material.
- The arms spread out behind the sheet material and distribute the forces over a large surface area.
- Alternatively, installation is also possible using a screwdriver or a cordless drill.
- The fischer Metal Hollow Wall Plug HM-S is suitable for mounting lighting, towel racks, and curtain rails in interior construction.
Advantages
- Due to the extensive range, the HM is suitable for sheet material with a thickness of 3-50 mm, allowing it to be used for numerous applications.
- The attachment part can be mounted and dismounted multiple times thanks to the metric internal thread.
- This makes the HM very flexible.
- The spreading arms of the HM ensure a large contact surface, enabling high loads.
- The barbs under the collar of the plug penetrate the sheet material, preventing the plug from rotating in the drill hole and guaranteeing secure mounting.
Characteristic properties
- Loosening and tightening the mounting piece multiple times without reducing the load-bearing capacity.
- This increases flexibility. High load-bearing capacity due to the large contact surface of the spreading arms.
- Anti-rotation protection for comfortable installation: The wings (claws) on the edge of the plug hold it firmly in the panel material.
- Suitable for front-drilling.
- Complete with metric screw.
Building materials
- Plasterboard and gypsum fiber boards Channel boards Lightweight wood wool boards Chipboard Plywood
Applications
- Paintings Lamps Small shelves Towel racks Mirror cabinets Curtain rails Substructures

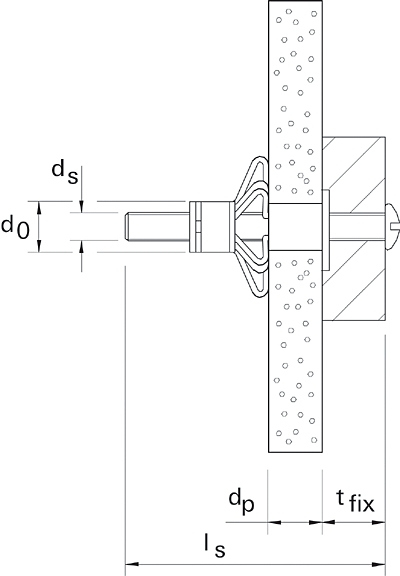

Installation
- The HM hollow wall plug is suitable for front-drilling.
- The fastener must be selected based on the thickness of the panel material so that the arms can spread out over the largest possible surface area.
- During installation, the arms spread out and press against the back of the sheet material.
- The HM can be mounted with mounting pliers.
- When using a cordless screwdriver or screwdriver, you must first remove the pre-assembled screw.
- When screwing in and spreading the arms, the mounting part or sheet thickness of a maximum of 6 mm must be used to prevent the hollow wall plug from rotating in the drill hole.
Technical data
- Drill hole diameter: 12 mm
- Sheet thickness 32 - 50 mm
- Plug length 80 mm.
- min. drill hole depth 88 mm.
Standard included
- 50 pieces
