Fischer 51291 Thermax 12/110 M12 Stand-Off Mounting System 20 pieces

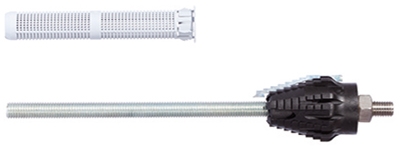

The Fischer Thermax Stand-Off Mounting System is a solution for fixing in the exterior wall or thermal bridging in the external insulation. The system consists of a special galvanized steel threaded rod with a glass fiber-reinforced cone, studs, and injection sleeves for fixing in perforated brick. In combination with the Fischer High-Performance Mortar FIS EM, FIS V, FIS SB, and FIS GREEN, the system is approved for numerous building materials. The threaded rod with the glass fiber-reinforced cone automatically cuts through the plaster into the insulation material. The threaded rod is anchored in the building material using injection mortar in the injection sleeve. The cone on the head of the threaded rod interrupts the thermal bridge and accommodates the stainless steel stud for external fixing. The Thermax secures heavy loads such as sunshades, security measures, and satellite installations in concrete, aerated concrete, and solid and perforated brick masonry.
Advantages
- The stand-off mounting system, in combination with the injection mortars FIS EM Plus, FIS V, FIS SB, and FIS Green, is approved for higher loads in many building materials. This ensures a safe and reliable fastening
- Only with a Thermax can lengths from 62 to 170 mm be bridged
- The plastic cone interrupts the thermal bridges between the mounting piece and the internal fastening, thus ensuring an energy-efficient fastening
- The glass fiber-reinforced plastic cone automatically mills into the WDVS, enabling simple, fast, and adjustable installation without the use of special tools.
Applications
- Concrete, cracked and uncracked
- Perforated brick
- Hollow lightweight concrete block
- Perforated sand-lime brick
- Solid sand-lime brick
- Solid brick
- Cellular concrete
Building materials
- Thermax 12 is suitable for through-hole mounting
- The glass fiber-reinforced The cone automatically mills through the plaster layer into the insulation material during installation.
- In this way, the anti-cold cone reliably interrupts the thermal bridge.
- For crack-resistant plasterwork (e.g. thick cement plaster), it is advisable to use the enclosed Thermax milling blade when milling.
- By sealing the ring gap using Fischer Multi-adhesive and sealant KD, the plaster level of the facade is sealed.
Technical data
- Contents: 20 M12 threaded rods, 20 thermal bridge interruptions, 20 M12 A4 threaded studs, 20 A4 washers, 20 A4 nuts, 20 sieve sleeves 20 x 130, 20 bits
- Contents: 20
