Fischer 512605 Thermax 10/200 M6 Stand-Off Mounting System 20 pieces

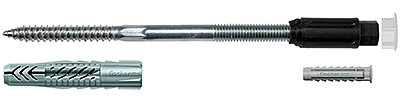

The Fischer Thermax 10 Stand-Off Mounting System is a solution for fastening in the exterior wall or for thermal bridging in the external insulation. The stud screw with the glass fiber-reinforced cone automatically drills through the plaster into the insulation material. During installation, the stud screw is screwed into the Universal Plug UX, thereby anchoring firmly in the building material. The anti-cold cone on the head of the stud screw interrupts the thermal bridge and accommodates the outer fastening. The Thermax fastens light loads such as lamps, mailboxes, or lightning rods in concrete, aerated concrete, and solid and perforated brick masonry.
Advantages
- The stand-off mounting allows the mounting piece to be adjusted for precise positioning, preventing pressure points or damage to the WDVS
- The plastic cone interrupts thermal bridges between the mounting piece and the internal fastening, thus ensuring an energy-efficient fastening
- The glass fiber-reinforced plastic cone automatically mills into the WDVS, enabling simple and quick installation without the use of special tools
- The combination of the Thermax 10 with the universal plug UX anchors itself in the substrate

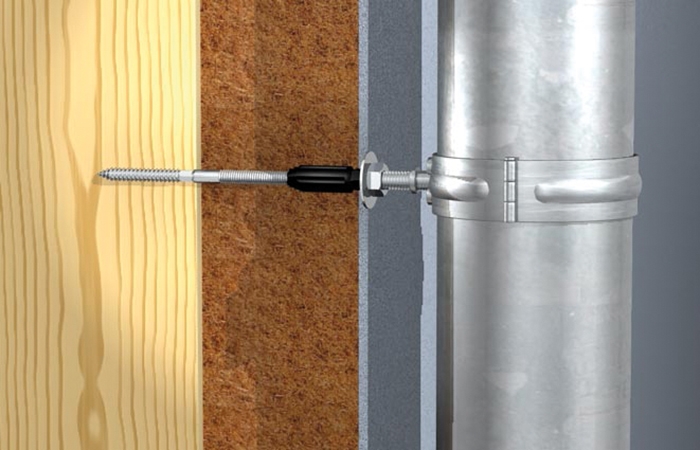

- Without the UX plug, direct mounting into the wooden substrate is also possible after pre-drilling.
Applications
- Concrete
- Perforated brick
- Hollow building block made of lightweight concrete
- Perforated calcium silicate brick
- Solid calcium silicate brick
- Solid brick
- Cellular concrete
- Wood
Building materials
- Thermax 10 is suitable for through-hole installation
- During installation, the glass fiber-reinforced cone automatically mills through the plaster layer into the insulation material
- In this way, the anti-cold cone reliably interrupts the thermal bridge
- Installation is carried out entirely without special tools
- When used in wood without a plug, the wood (see the footnote below the table) as well as the plasterwork must be pre-drilled: Thermax 10: d0 = 18 mm, h0 = 50 mm
- The range includes connection options using metric screws M6/8/10, sheet metal screws 6.3 mm, chipboard screws 6.0 mm or chipboard screws 4.5 - 5.5 mm when using an SX 5 plug.
Technical data
- Drill hole diameter: 12 mm
- Drill hole depth: 260 mm
- Anchoring depth: 70 mm
- Cap diameter: 22 mm
- Wrench size: 13 mm
- Chipboard screw and metric bolt: 4.5 - 6.0 / M6 / 6.3
- Contents: 20
