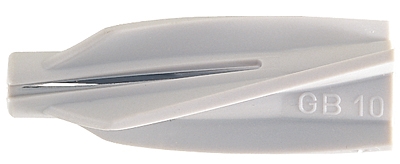

Fischer 50492 Aerated Concrete Plug GB 10 20 pieces
The Fischer Aerated Concrete Plug GB 10 is a construction-approved special plug for safety-relevant fastenings in aerated concrete. Made of high-quality nylon, the GB plug is hammered in with a rotating motion after pre-drilling. The characteristic external ribs form a properly closing connection between the plug and the building material. The Fischer GB aerated concrete plug is ideal for fastening facade and roof structures, as well as railings made of aerated concrete.
Advantages
- General building approval guarantees proven safety for use in safety-relevant applications
- The helical outer ribs cut a fit into the soft building material and thereby guarantee optimal pressure distribution and load-bearing capacity
- Can be installed with a hammer – no special tools are required, saving time and money during installation
- The GB can also be safely used outdoors (e.g. for facade mounting) when combined with the approved Fischer safety screw in A4.
Applications
- PB2, AAC2
- PB3, AAC3
- PB4, AAC4
Building materials
- The GB is suitable for through-hole mounting
- The helical outer ribs guarantee a positive fit between the building material and the plug
- The required screw length is determined based on: Plug length + thickness of the attached part + 1 x screw diameter
- The GB must be used together with Fischer security screws to comply with the approval and to achieve the maximum load capacity
- Use rotary drilling to create the borehole
- Can be used in unplastered aerated concrete
Technical data
- DIBt approval: Relevant
- Borehole diameter: 10 mm
- Min. borehole depth: 65 mm
- Plug length = min. anchoring depth: 55 mm
- Fischer Security Screw: 7 mm
- Content: 20
