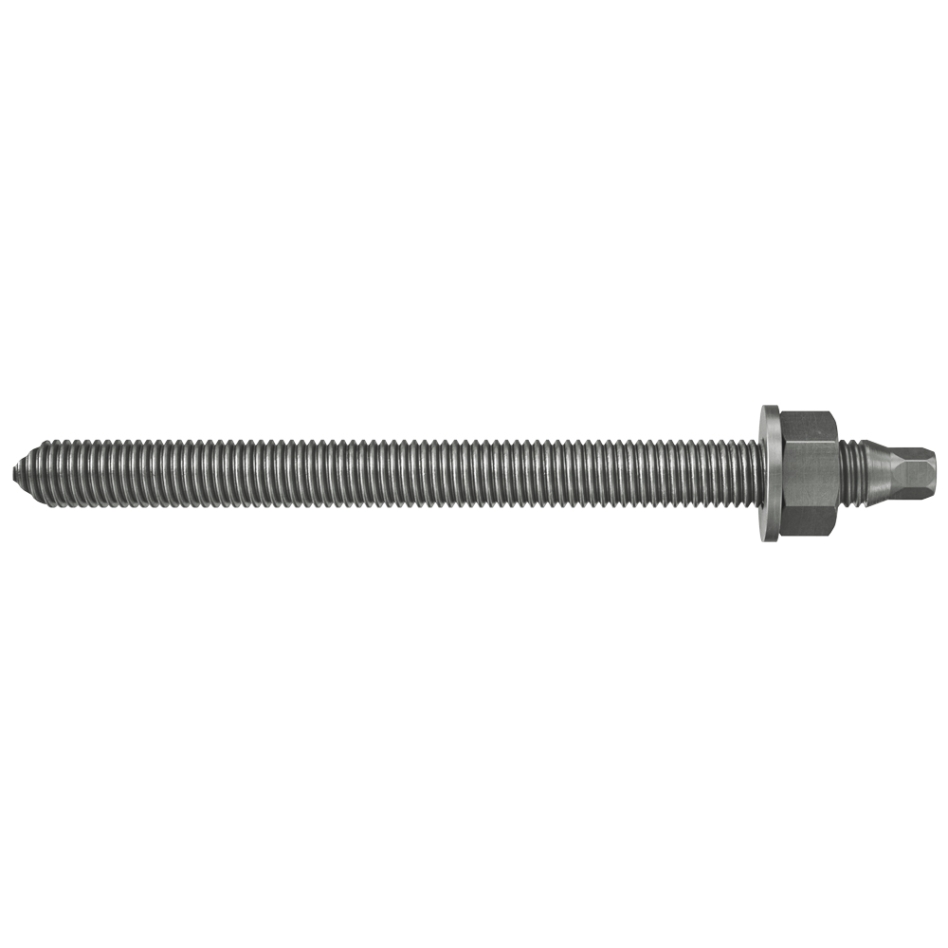

Fischer 50264 Anchor Rod RG M 10 x 130 Stainless Steel A4 10 pieces
The proven threaded rods for use in combination with mortar cartridges or injection mortar indoors. The fischer Threaded Rod RG M is made of stainless steel. The threaded rod is a system accessory for the fischer mortar cartridges or injection mortar. For individual fastenings, the use of the pre-portioned mortar cartridges is particularly efficient. When mounting with the mortar cartridge, the fischer Threaded Rod RG M is installed using a rotary hammer drill with a twisting and tapping motion. During installation, the mortar cartridge is broken, mixed, and the mortar mass is activated. When mounting with the injection mortar, the anchor rod is manually pushed into the drill hole by means of light twisting movements. The system is particularly suitable for the efficient fastening of machines, steel structures, and support legs indoors.
Advantages
- The wide range of RG M from M8 to M30 enables a broad spectrum of applications and thus offers a high degree of flexibility.
- The many types of approved steel grades for RG M allow the use of all corrosion resistance classes and offer the greatest possible safety in applications.
- Please take into account the approvals of the relevant glass capsules or mortar.
Characteristic properties
- In combination with the various mortar cartridges or injection mortars, approved for anchoring in cracked and uncracked concrete, solid stone masonry, porous stone masonry, and aerated concrete.
- Threaded rods with chamfered edge and hexagon for easy assembly with pre-portioned glass capsule.
- Galvanized steel for indoor use.
Approval
- ETA-02/0024 DoP No. 0007 DoP No. 0007 - EN DoP No. 0072 DoP No. 0094 DoP No. 0094 - EN DoP No. 0756-CPD-0300 DoP No. 0756-CPD-0301 DoP No. 0756-CPD-0490
Installation
- Thanks to the chamfered end, the RG M threaded rod is particularly suitable for use in combination with glass capsules.
- The RG M threaded rod is inserted using a rotary hammer and the corresponding mounting tool with a twisting and tapping motion.
- During installation, the capsule is broken, mixed, and the mortar is activated by the chamfered end of the RG M.
- The use of injection mortar is also possible. The threaded rod is pressed by hand, with a slight twist, until it reaches the bottom of the bore hole.
Technical data
- Bore hole diameter d0 12 [mm]
- Wrench size (hexagonal) 6kt SW 7 [mm]
- Wrench size (hexagonal nut) SW 17 [mm]
Standard included
- 10 pieces
