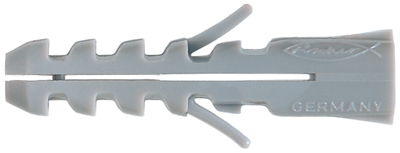

Fischer Plug S 10 DP double pack 050127
Special features
- The fischer Expansion Plug S is the original and a classic proven millions of times over decades
- The plastic plug is manufactured entirely from high-quality nylon
- As a result, the plug is particularly strong during installation and guarantees long-lasting security
- Because the plug expands in only two directions, the expansion forces can be applied precisely parallel to the edge of the material by turning
- This prevents the material from crumbling when fastening close to the edge
- Wood or chipboard screws can be used to fasten the object
- The fischer Expansion Plug S is ideal for fastening in concrete and solid stone masonry
- The easy-to-install nylon plug with 2-way expansion
- The plug rimless is suitable for both front and through-hole mounting
- For quick installation, the plug can be easily inserted
- Anti-rotation prevents rotation in the drill hole
- This guarantees a high degree of safety during installation
- The rimless plug sleeve makes it possible to place the plug as deep as necessary under the plaster on the substrate, thus achieving maximum load-bearing capacity
- Because the plug expands in only two directions, the expansion pressures can be directed so that, by rotating the plug, they run parallel to the edge of the building material
- This allows for smaller edge distances
- Thanks to the slimline plug geometry, the plug can be easily pressed into the drill hole
- This enables quick and easy installation
- Wings prevent the plug from rotating in the drill hole, ensuring safe installation
- The S plug is suitable for both front and through-hole mounting Through-hole mounting
- When the screw is turned inwards, the S plug expands in two directions, thereby providing a firm anchorage in the building material
- The required screw length is determined based on the plug length + plaster and/or thickness of the insulation material + thickness of the attached part + 1 x screw diameter
- Suitable for both wood screws and chipboard screws
- The edge distance must be at least one plug length
- When mounting near the edge, it is recommended to turn the plug so that the wings are parallel to the edge
Technical data
- Drill hole diameter: 10mm
- Plug length: 50mm
- Min. Drill hole depth: 70mm
- Chipboard screw: 6-8mm
- Packaging unit: Pieces
Applications
- Concrete
- Solid sand-lime brick
- High-density natural stone
- Solid lightweight concrete brick
- Solid brick
Standard included
- 100 Pieces
