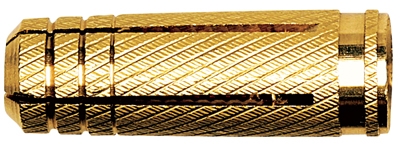

Fischer Brass Plug MS 4 x 15 mm 026424
Special features
- The fischer Brass Plug MS is a brass expansion plug for accommodating metric threads
- The expansion plug is installed using the pre-drilling method
- When screwing in the screw or threaded rod, the brass plug expands and anchors against the wall of the drilled hole
- The fischer Brass Plug MS is particularly suitable for fastening shelving units, water heaters, and units made of solid material
- The brass plug with metric thread
- Fast installation thanks to compact design
- Does not rotate due to anti-slip surface structure
- Flexibility through the use of standard screws and threaded rods
- Disassembly possible flush with the surface
- The compact design of the brass plug reduces the required drilling, which contributes to quick assembly
- The special geometry of the MS prevents the fastener from rotating in the drill hole
- This ensures even more secure installation
- The metric internal thread allows the use of standard metric screws or threaded rods and enables flush removal and reuse of the fastening point
- This ensures a high degree of flexibility
- The MS brass plug is suitable for both front and through-hole mounting
- By turning the metric screw inwards, the front part of the brass plug expands and anchors firmly in the substrate
- Calculating screw length for flush mounting: Fastening length + thickness of the attachment part = min. screw length
- Suitable for metric bolts and threaded bolts
- The brass plug may need to be spread slightly before installation by turning the screw inwards
Technical data
- Drill hole diameter 5 mm
- Min. drill hole depth 20 mm
- Plug length 15 mm
- Internal thread M4
- Min. screw-in depth 15 mm
- Packaging unit: Pieces
Applications
- Concrete
- Solid sand-lime brick
- High-density natural stone
- Solid brick
Standard included
- 100 Pieces
