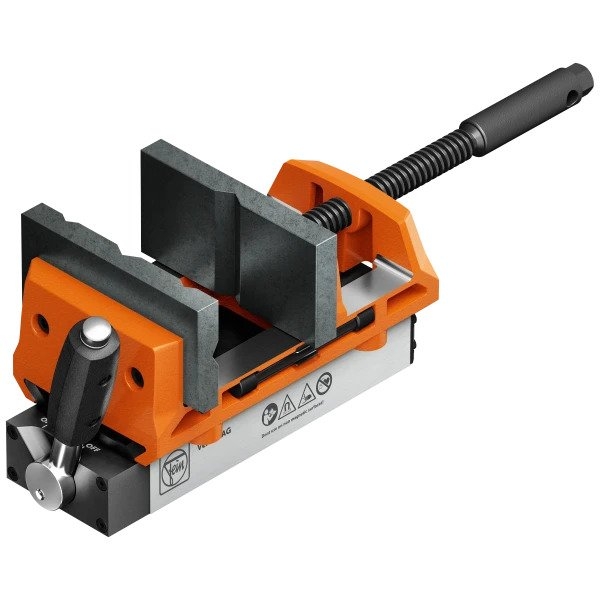

Fein 90701003020 PMV 100 S VERSAMAG Magnetic vise with a clamping jaw width of 100 mm
Features
- Mobile, flexible, and quick to use. Adapts to any workplace thanks to a compact design and extra-narrow permanent magnet.
- Optimizes every workplace: neat and safe working with a wide range of applications.
- Modular system: the unique modular system ensures a reliable grip in the most diverse working situations and can also be continuously expanded with matching accessories.
- The vise has a clamping range of 108 mm and a jaw width of 100 mm.
- Interchangeable jaws in different heights to secure larger materials such as plates and tubes.
- Thanks to an innovative 2-rotor system, a magnetic force of up to 7800 N for reliable clamping on all magnetic surfaces, even with thin plates (from a thickness of 4 mm).
- Clamping in tight spaces or on vertical surfaces? Thanks to a compact design and an extra-narrow permanent magnet, this is no problem.
- Precise alignment of the permanent magnet using a 30% pre-magnetization.
- Secure attachment of parts for further processing with dedicated power tools, e.g. angle grinder, cordless drill, saws, MULTIMASTER, etc.
Technical data
- Clamping jaw height 40 mm
- Clamping jaw width 100 mm
- Magnetic holding force 7,800 N
- Magnetic base dimensions 212 x 70 mm
- Weight according to EPTA 7.25 kg
Scope of delivery
- 1 permanent magnet
- 1 mounting plate
- 1 vise
- 1 hexagon wrench 3 mm
- 1 lashing strap
