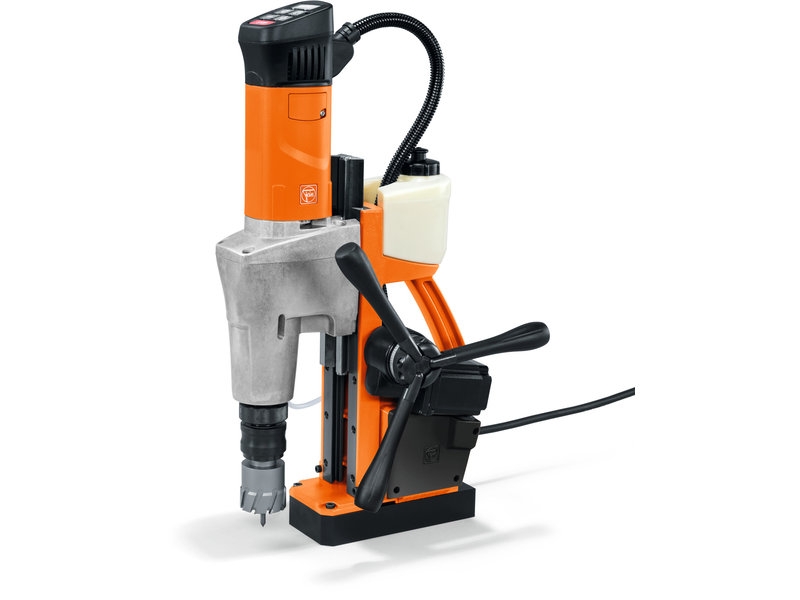

Fein Core Drilling Unit 50mm KBM 50 Auto + 5-year dealer warranty
Order your Fein machine now and benefit from the total 5-year warranty on Fein Machines(*)
(*) In addition to the Fein manufacturer's warranty (3 years after registration with Fein), you will receive an extra 2 years of TOOLPLUS warranty from us. ToolNation TOOLPLUS Warranty: 2 years extra Toolplus warranty on power tools, extra security from Toolnation.
Special features
- Time and cost savings for large drilling volumes thanks to digitally controlled drill feed.
- Plannable working times for job-based and series work thanks to reproducible and timed drilling times.
- Universal operation, such as thread cutting during manual operation, thanks to reverse/right rotation and MK3 interface.
- High-power FEIN motor with stable speed.
- Electronic speed setting.
- High magnetic force.
- Comfortable magnetic force indicator.
- Integrated coolant tank.
- Tilt sensor.
- Controls in plain sight.
- * optional with accessories.
- ** only with manual machine use
Technical data
- HM core drill max. Ø 50 mm
- HSS core drill max. Ø 40 mm
- Core drills drilling depth max. 50(75*) mm
- Spiral drill max. Ø 18/23** mm
- Tapping M 16**
- Galvanizing max. Ø 50** mm
- Reaming max. Ø 23** mm
- Nom. input power 1 200 W
- Dep. Power 610 W
- 1st gear 130-260 1/min
- 2nd gear 260-520 1/min
- QuickIN core chuck (3/4 in Weldon: AU,CA,US,UK)
- Tool holder MK 3
- Stroke 145 mm
- Tot. Stroke range 315 mm
- Magnetic holding force 12,500 N
- Magnetic base dimensions 195 x 90 mm
- Cable with plug 4 m
- Weight according to EPTA 16.2 kg
- 230V X
Standard included:
- 1 case
- 1 coolant reservoir
- 1 lashing strap
- 1 chip hook
- 1 centering pins
- 1 ejection wedge
- 1 contact protection
*Toolnation, as the sole supplier of Fein, extends the warranty from 3 to 5 years. We take over the warranty provisions after the 3rd year and keep track of them in our computer system. (Warranty only valid after registration, see conditions in this link)
Dealer warranty:
Toolnation is an official Fein dealer and offers you a full warranty in accordance with Fein's terms and conditions.
It is important for you as a customer to purchase a product with a full warranty. In practice, it turns out all too often that items are offered at lower prices via private websites. These are often machines from abroad that are frequently modified. This can result in malfunctions or even fire. Consequently, the manufacturer's warranty on these products is usually not available or is limited to a maximum of 12 months. Therefore, always ensure that you make your purchases from an official brand dealer! At Toolnation, you are assured of this!
"
