Euroboor ADG.2E-CASE Air Grinder, 22000 RPM
Special Features
Our extended straight air grinder ADG.2E operates on air and is the perfect solution when the use of power tools is not possible, such as in the offshore, mining, and oil and gas industries. The ADG.2E (extended straight air grinder) is perfect for grinding, polishing, deburring, and flattening sharp edges. Also suitable for hard-to-reach places. Our air grinders are designed to make your work easier, safer, and more efficient.
VibraTec
VibraTec minimizes machine vibrations. This contributes to ease of operation and the creation of smooth, high-quality finishes. These machines feature an ergonomic soft grip that absorbs vibrations. The machines are developed with high-quality materials, such as special bearings that allow the die cutter to rotate as stably as possible.
- Extremely suitable for grinding, polishing, deburring, and flattening sharp edges
- VibraTec minimizes vibrations
- Four-position speed controller
- Rotatable air outlet (360°)
- Safety on/off switch
- Also available in combination with die cutters

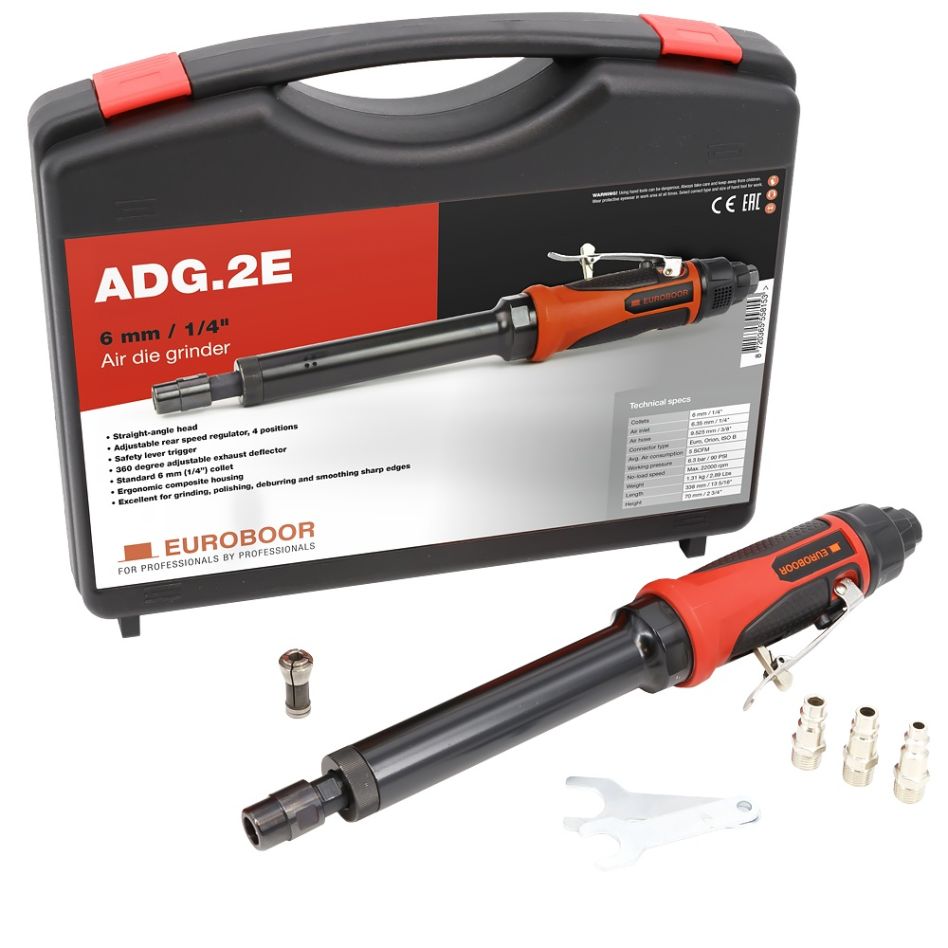

Scope of delivery
- Luxury case – ADG.2E-CASE
- Standard 6 mm (1/4”) and 3 mm (1/8”) collet
- 1x ADG.2E Die Grinder Extended
- 1x Air connection type EURO 6 mm (1/4”)
- 1x air connector type ORION 4.7 mm (3/16")
- 1x Air connector type ISO B 6 mm (1/4")
- 1x Wrench 16 mm (5/8")
- 1x Wrench 19 mm (3/4")
- 1x User manual
Technical data
- Application: grinding
- Connection 1 model: internal
- Connection 1 size: 6 mm
- Connection 1 type: chuck
- Electronic speed adjustment: yes
- Height: 70 mm
- Length: 338 mm
- Machining medium: burrs
- Net weight: 1.31 kg
- Power source connection: air hose connection with internal diameter 3/8"
- Supply source flow rate: 8.5 m³/h
- Supply source pressure: 6.3 bar
- Supply source: mains power
- Supply source type: pneumatic
- No-load maximum speed gear 1: 22000 rpm
- Measuring system: mm (metric)
