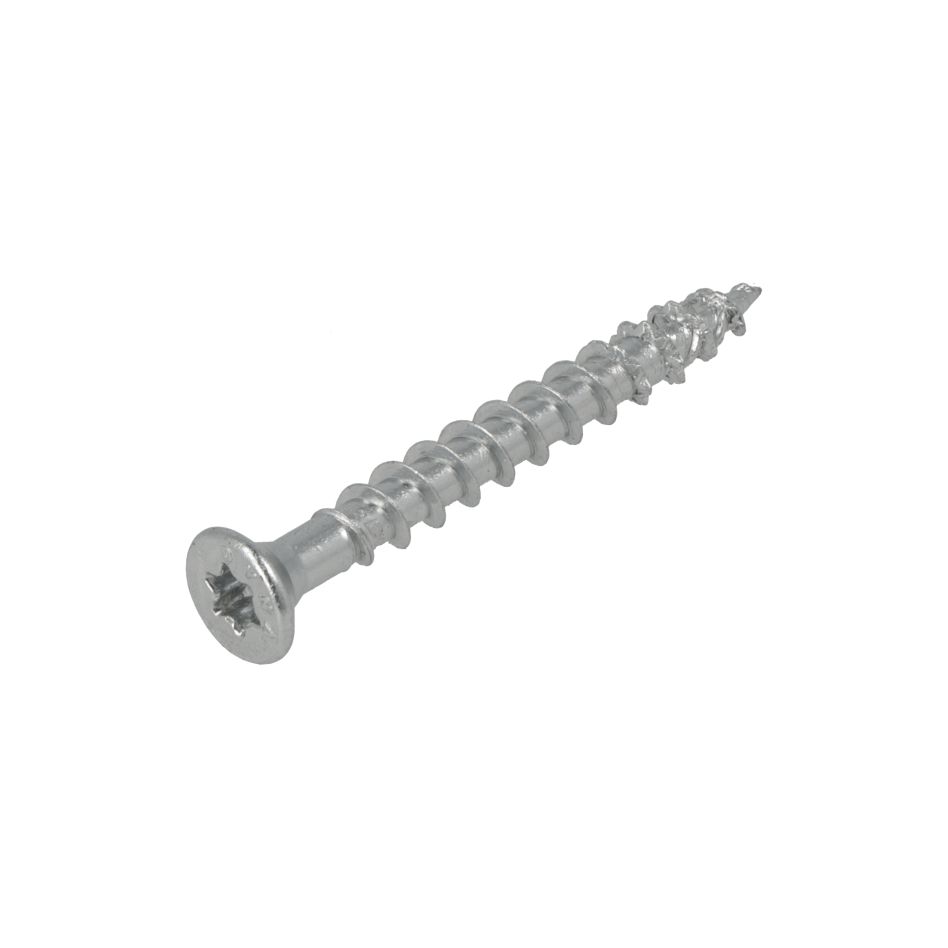

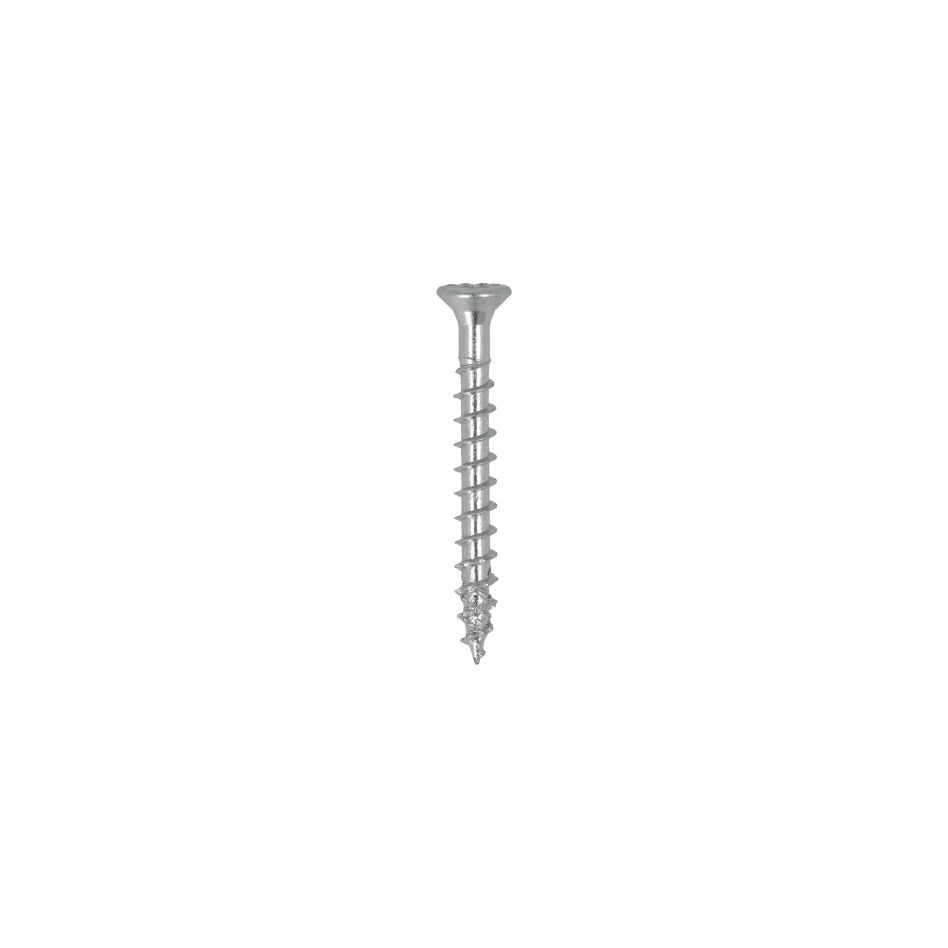

Dynaplus 0285.01.33601 Fitting Screw VZ PK-8mm TX-20 4.5 x 40 mm - 200 pieces
Special features
- Dynaplus® fitting screws are specially developed for fastening window and door fittings
- A very important feature of these screws is that they are extra strong and flexible at the same time. This minimizes the risk of the screw head breaking off during screwing.
- The extra-small screw head without milling ribs ensures that the zinc coating of the fitting or hinge is not damaged during screwing.
- The screw is available in two sizes;
- the 4.0x40 fitting screws have a head diameter of Ø 7.0mm and fit perfectly into the screw holes of tilt-and-turn fittings and strike plates, making them real bestsellers in the carpentry industry.
- The 4.5x40 fitting screws, with a head diameter of Ø 8.0 mm, fit exactly into the screw holes of door hinges and, due to their thicker diameter, are an ideal problem solver when reinstalling hinges in old screw holes.
- The lower head shape of the fitting screw ensures a nice flush finish in the screw holes of the fitting.
- The special drill point with cross-sections pre-drills well and prevents splitting of the wood, thereby ensuring a high pull-out value of the screw
- These fitting screws are therefore allowed to bear the SKH-98-08 quality mark for burglary-resistant facade joinery and are thus approved for use in security fittings (Police Quality Mark Safe Living)
- Especially for white or black coated fittings, there are also fitting screws with a white or black head
Technical data
- Diameter: 4.5 mm
- Length: 40 mm
- Drive: TX-20
- Drill point type: Cross-sections|Serrated thread
- Thread type: Full thread
- Head model: Flat head
- Head diameter: 8 mm
- CE Standard: 14592
- Quality mark: SKH-9808
- Material: Carbon steel
- Surface treatment: Electrolytically galvanized
- Surface treatment color: Blue
- Lubricant: BASF
- Packaging type: Box
- Package contents quantity: 200 piece(s)
