CMT Conversion cutter with end guide 9.5 x 25.4 mm shank 8 mm
Conversion cutter with end guide bearing
Special features
- To simplify the conversion process in the most difficult cases, we have designed a series of truly indispensable cutters.
- The sizes we have produced meet all requirements.

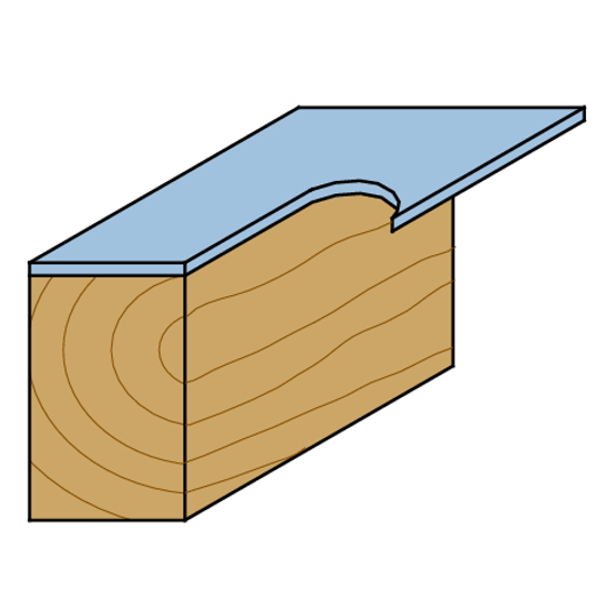

- These cutters with a tungsten-carbonide coating can be used for precision work on laminates or for fast profile work.
- Suggestions: These cutters are ideal for achieving continuous machining on wood.
- Using a cutter with straight cutting tips ø 13mm (711.130.11), create a channel approx. 5 mm deep on the edge of the wood piece where you want to perform the continuous machining.
- With a wood drill ø 13mm (517.130.31) drill a hole in one end of the channel that runs through the piece of wood.
- The piece is then turned over to finish the machining.
- Use a ø 12.7 mm outrigger with a cutting length slightly greater than the thickness of the molding, while using the guide bearing to follow the path of the channel followed from the opposite side of the wood.

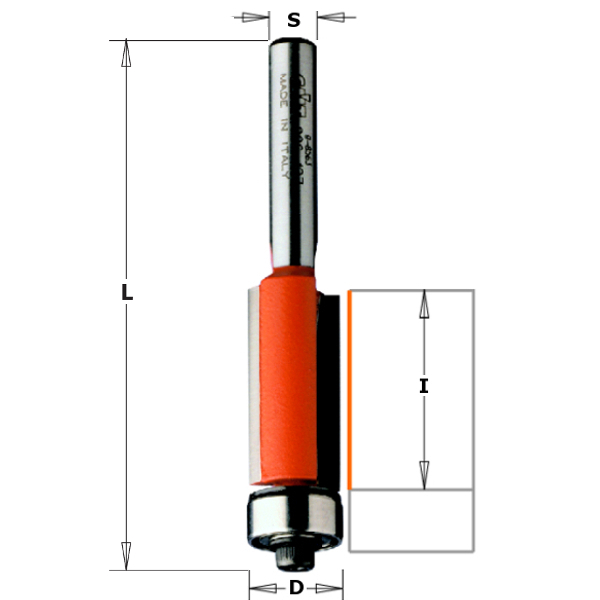

Technical data
- Cutter diameter D=9.5 mm

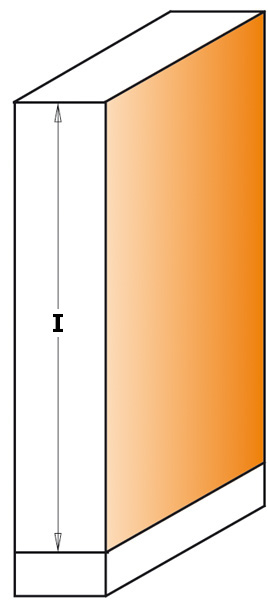

- Cutter height I=25.4 mm
- Bearing 791.002.00
- Shank S=8 mm
