CMT 3-piece adjustable groove cutter 140 x 30 with WPL blades type MAN
Special features

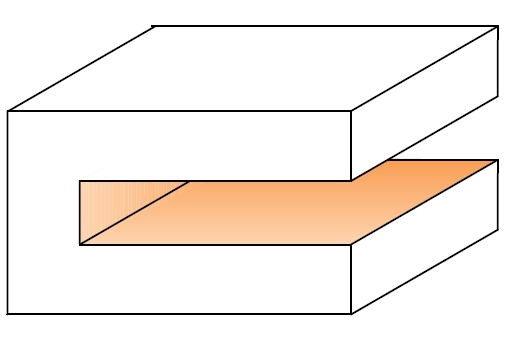

- This 3-piece, adjustable groove cutter is ideally suited for creating groove widths of all widths between 4 and 15 mm.
- Easily adjustable in width using the included rings.
- Suitable for working with soft and hardwoods, but also suitable for milling grooves in sheet material.
- Steel cutter body
- 2 x HWM blades 7.65x12x1.5 mm
- 4 x HWM blades 18x18x1.5 mm
- 4 x HWM blades 14x14x1.2 mm
Technical data
- Diameter D=140 mm
- Axe hole F=30
- Interchangeable knives 4+4+2 pieces

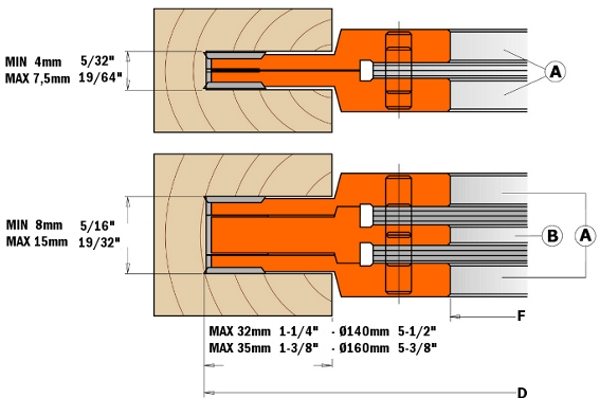

- Cutting height A= min 4 - max 7.5 mm (adjustable)
- Cutting height B= min 8 - max 15 mm (adjustable)
- Speed 5,500-9,500 RPM
Standard included
- 2-piece groove cutter set (A) Z4 + V4
- 1 intermediate cutter width 8mm (B) Z2
- 12 intermediate rings, thickness from 0.1 to 2 mm
- Plastic Box
