Bosch Blue0601B44100 GTS 18V-70 Table Saw
Special features
- Brushless motor delivers the power of a corded saw with maximum mobility
- Cutting height of 70 mm, best in class
- Rip capacity of 635 mm for larger workpieces
- Compact and portable design, easy to transport with one hand
- Two Click & Clean dust outlets minimize dust and keep the workplace clean
- Draw guide with rack and pinion system for accurate and precise ripping
- Fine adjustment of rip angle via manual knob for optimal precision
- Adjustable miter guide for precise angled cuts

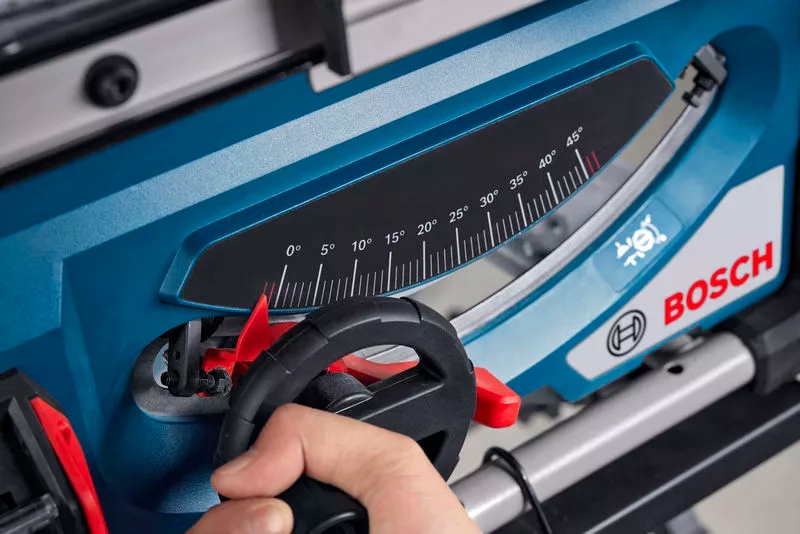

- Tool-free bevel cutting from -2° to 47° for maximum versatility
- Handy clamping zones to securely fasten workpieces to the table top
- Groove in draw guide for mounting a spring plate to protect against kickback
- Quick brake system for extra safety
- Output shaft lock for easy and safe saw blade changes
- Soft start technology for controlled starting of the saw
Technical data
- Battery voltage: 18.0 V
- Table size: 593 x 494 mm
- No-load speed: 5,500 rpm
- Saw blade diameter: 216 mm
- Weight: 21.2 kg
- Max. Sawing capacity right: 635 mm
- Packaging dimensions (W x L x H): 655 x 665 x 380 mm
- Machine dimensions (W x L x H): 608 x 593 x 329 mm
- Saw blade bore Ø: 30 mm
- Bevel setting: 47° left / -2° right
- Max. cutting capacity left: 305 mm
- BITURBO: No
Scope of delivery
- 1x Dust extraction adapter - 1 619 PS3 515
- 1x Hexagon socket wrench - 1 619 PS3 582
- 1x Push stick - 1 619 PS3 483
- 1x Profile rail - 1 619 PS3 603
- 1x Parallel guide - 1 619 PS3 599
- 1x Miter guide Protective cover with dust extraction adapter - 1 619 PS3 600
- 1x Ring spanner - 1 619 PS3 584
- 1x cordless saw blade, Standard for Wood, 216 x 30 x 2.0 mm, 24 - 2 608 837 724
