Bosch 0601077300 GDM 600-15 Professional Multimeter
Now a total of 5 years warranty on Bosch Blue Machines(*)
(*) In addition to the Bosch factory warranty, you receive an extra 2 years TOOLPLUS* warranty from us.
ToolNation TOOLPLUS* Warranty: 2 years extra toolplus warranty on power tools
Features
- The GDM 600-15 Professional is designed to increase efficiency with accurate True RMS measurements.
- The large inverted LCD screen ensures clear readability in demanding applications.
- This versatile tool measures frequency, continuity, resistance, and electrical capacitance, and also records signal fluctuations with Min/Max/Average measurements.

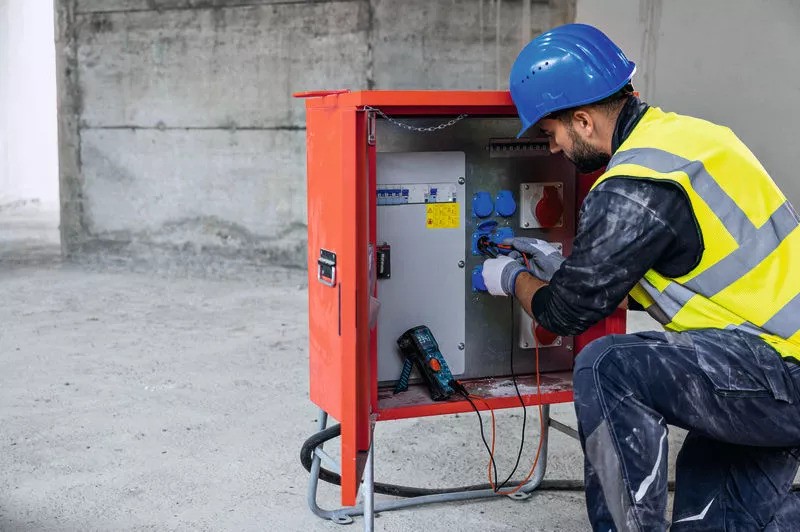

- The tool is designed to withstand rugged construction sites and features an IP65 rating for enhanced robustness and protection against drops from a height of up to 2 m.
- And with a comfortable handle that reduces fatigue during work, the GDM 600-15 Professional can be relied upon for the performance required—even under the most demanding conditions.
- The GDM 600-15 Professional is ideal for electricians, HVAC installers, facility managers, and electrical engineers, and is indispensable for electrical installations, maintenance, and repairs.

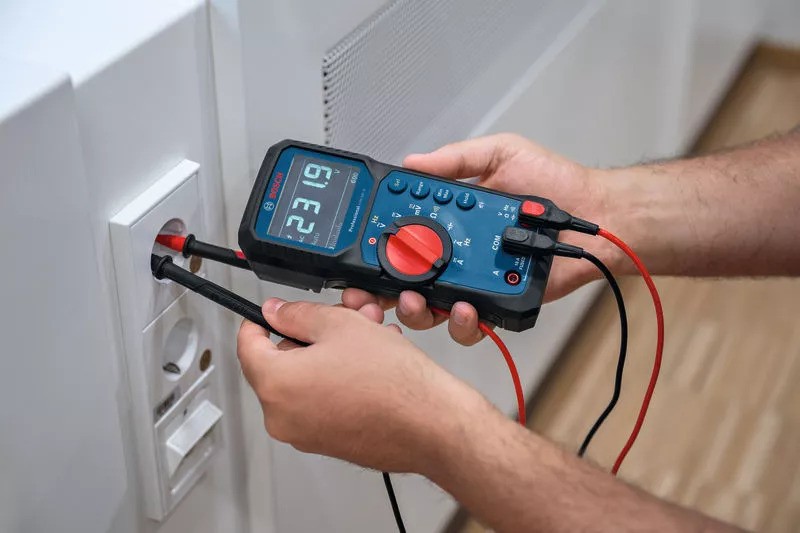

- The tool measures voltage, current, and resistance in specific electrical systems to ensure proper operation and detect faults.
- The compact design allows for easy one-handed operation, while an integrated stand and a separate magnetic hanger offer hands-free convenience.

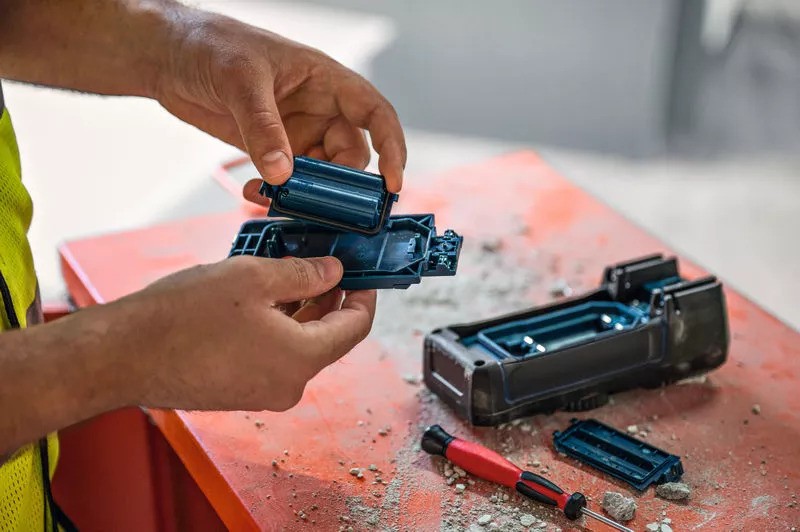

- The GDM 600-15 Professional is compatible with the Li-Ion battery pack and offers long-lasting power.
- The tool has been safety tested with a measuring circuit rating of CAT III 600V and also features high-quality test pins made of flexible, durable silicone to ensure reliability.
- This multimeter is compact and efficient and designed to support all electrical jobs.
Technical specifications
- IP protection IP65
- Display type Inverted LCD
- Acoustic feedback Yes
- AC voltage 600 V
- AC voltage resolution 0.1 mV
- AC voltage accuracy ± 1.0 % + 3
- AC current 10 A
- AC current resolution 0.001 A
- DC current accuracy ± 1.5% + 3, ± 1.0 % + 3
- Frequency measurement range 50 kHz AC / 2 kHz AC
- ACA Frequency min 600
- ACA Frequency max 10
- Frequency Resolution 0.01 Hz
- Frequency Accuracy ± 0.1 % + 2
- DC Voltage 600 V
- DC Voltage Resolution 0.1 mV
- DC Voltage Accuracy ± 0.5 % + 2
- DC Current 10 A
- DC Current Resolution 0.001 A
- Resistance Measurement Range 40 MΩ
- Resistance Resolution 0.01 MOhm
- Resistance Accuracy ± 2.0 % + 5
- Electrical Capacitance 1000 µF
- Electrical capacity accuracy ± 1.9 % + 2
- Continuity yes
- True RMS yes
- Safety class CAT II 1000 V
- Continuity resolution 0.1 Ohm
- Continuity accuracy ± 1.0 % + 5
- Packaging dimensions (width x length x height) 59 x 177 x 78 mm

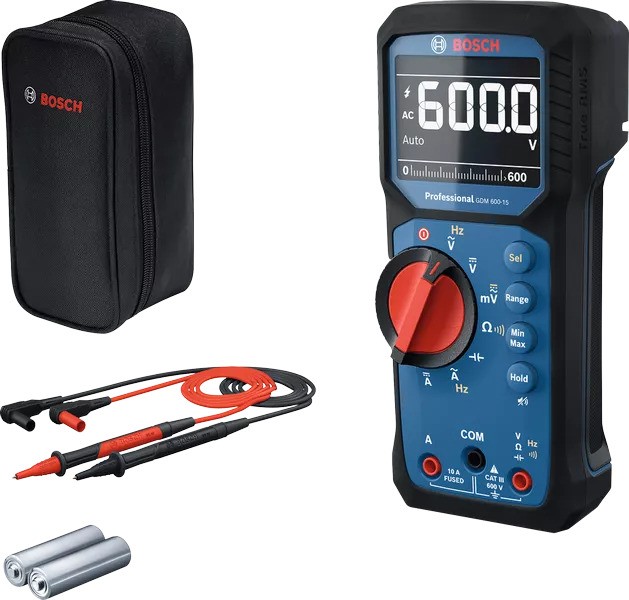

Scope of delivery
- Bag
- 2 x 1.5 V LR6 battery (AA)
- MS 90 Professional Order number: 1 600 A03 8D2
- Cardboard box
