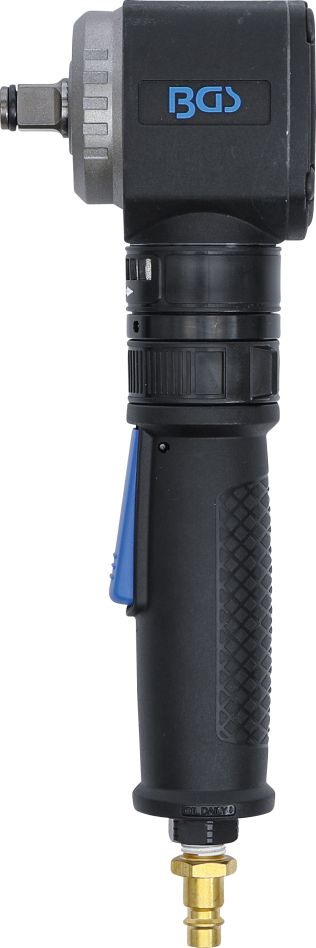

BGS 6684 Pneumatic impact wrench angled 12.5 mm (1/2") 550 Nm
Special features
- Compact design with a length of only 69 mm, making it very useful for work in confined spaces
- Length (incl. square): 88 mm
- The ring switch allows the direction of rotation to be changed with one hand
- Torque adjustable in 3 steps for clockwise rotation
- Low weight and low vibration for effortless work
- Reliable loosening of stubborn screw connections thanks to the Jumbo hammer mechanism
- Non-slip handle
- Air outlet direction adjustable on the handle
- Hammer mechanism: Jumbo hammer
- Max. loosening torque (clockwise rotation): 550 Nm
- Max. torque (clockwise rotation): 325 Nm
- Recommended inner diameter of the compressed air hose: 10 mm (3/8") (WD)
- Vibration level: ahd = 9.96 m/s² / K = 2.10 m/s²
Technical data
- Holding profile size, inch: 1/2 "
- Holding profile size, metric: 12.5 mm
- Operating pressure: 6.3 bar
- Gross weight: 1336 g
- Max. torque: 325 Nm
- Min. torque: 27 Nm
- Compressed air connection: 1/4 "
- Idle speed: 8500 rpm
- Max. breakaway torque: 550 Nm
- Air consumption: 113 l/min
- Max. sound pressure level: 87.9 dB(A)
- Max. sound power level: LwA 98.9 dB(A)
