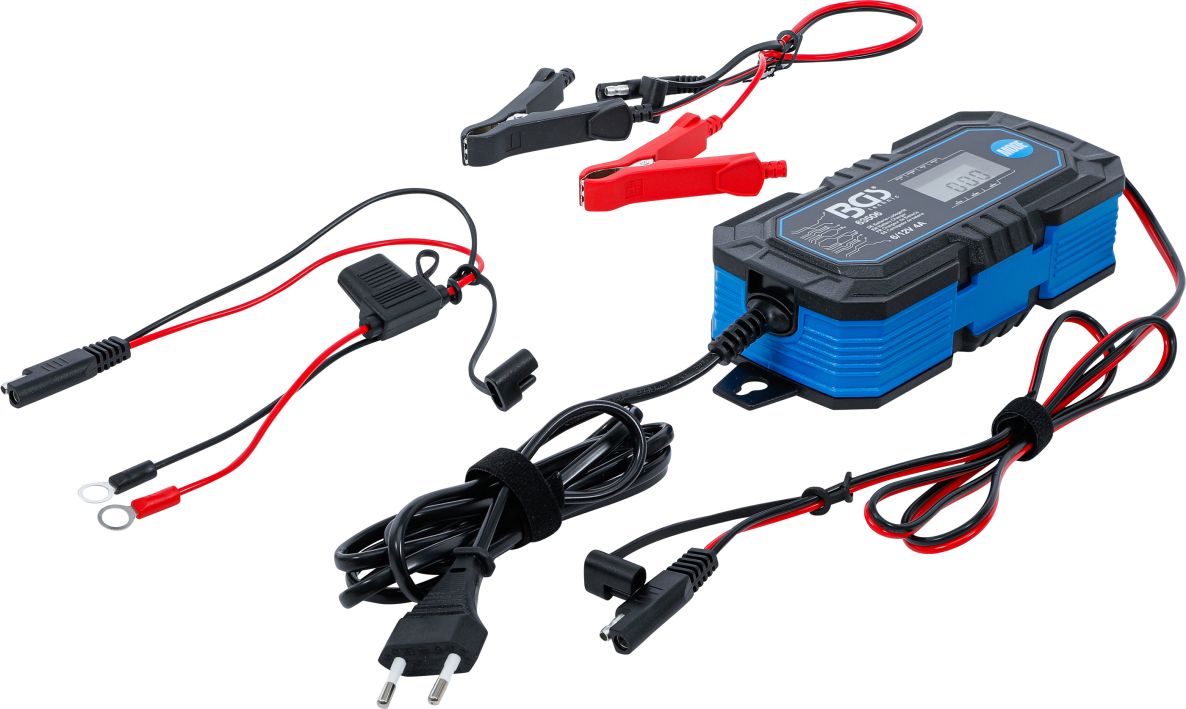

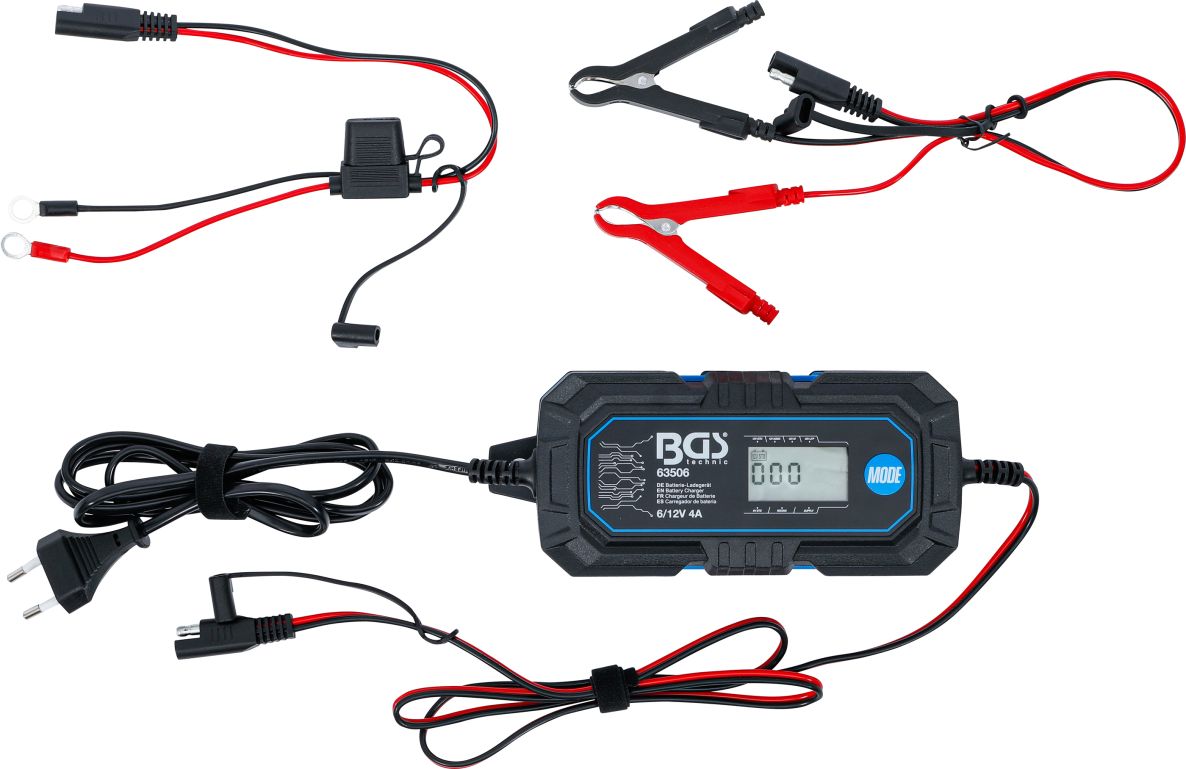

BGS 63506 Digital Battery Charger 6/12 V 4 A
Special features
- For charging 6 V and 12 V vehicle batteries with a capacity of 4 to 120 Ah
- Optimized to protect motorcycle and car batteries
- Also suitable for maintaining 12 V batteries not used in winter
- Use as a temporary power supply and preserve storage data when replacing a battery
- Suitable for lithium, gel, AGM, and standard lead-acid batteries
- Short-circuit protection
- Overvoltage protection
- Reverse polarity protection
- Overflow protection
- Over-temperature protection
- Input power: max. 70 W
- Charging mode 12 V STD / AGM / GEL, final charge voltage 14.4 V (+/- 0.3 V) / max. charging current 4 A
- Charging mode 12 V LFP, final charge voltage 14.6 V (+/- 0.3 V) / maximum charging current 4 A
- Charging mode 12 V maintenance, final charge voltage 14.4 V (+/- 0.3 V) / max. charging current 1 A
- Charging mode 12 V RECOND (reconditioning), final charge voltage 16.5 V (+/- 0.3 V) / max. charging current 1.5 A
- Charging mode 6 V STD, final charge voltage 7.5 V (+/- 0.3 V) / max. charging current 2 A
- Functional output SUPPLY (power adapter), max. 3 A
- Battery capacity: 4 - 120 Ah
Technical data
- Operating temperature max.: 40 °C
- Operating temperature min.: -20 °C
- Gross weight: 808 g
- Nominal frequency: 50 - 60 Hz
- Nominal voltage: 220 - 240 V (AC)
- Protection class: II | IP65
- Packaging suitable for wall covering: Yes
