BGS 63401 Digital Multimeter with USB Port
Special Features
- Ideal measuring instrument for the automotive sector
- Suitable for 2- and 4-stroke engines
- Illuminated display with 3-5/6 characters
- USB port for connection to PC
- Automatic range selection; Automatically selects the appropriate range
- Relative mode, enables differential measurement
- Data hold function, freezes the measured value
- Overload indicator
- Low battery voltage indicator
Measurement ranges:
- DC voltage 6 V - 60 V - 600 V - 1,000 V
- AC voltage 6 V - 60 V - 600 V - 750 V
- DC current 60 mA - 600 mA - 6 A - 20 A
- AC 60 mA - 600 mA - 6 A - 20 A
- Resistance 600 Ω - 6 kΩ - 600 kΩ - 6 mΩ - 60 M™¦
- Continuity buzzer sounds below 20 ™¦
- Diode test current approx. 0.8 mA
- Capacity 40 nF to 4000 µF
- Temperature -20 - 400 °C
- Frequency 10 Hz - 10 MHz
- Probe ratio 0.5 - 99.9 %
- Rotational speed 120 - 20000 rpm
- Closing angle 0° - 90° / 0° - 72° / 0° - 60° / 0° - 45°
- Pulse width 0.5 ms - 20 ms
Technical data
- Gross weight: 1088 g

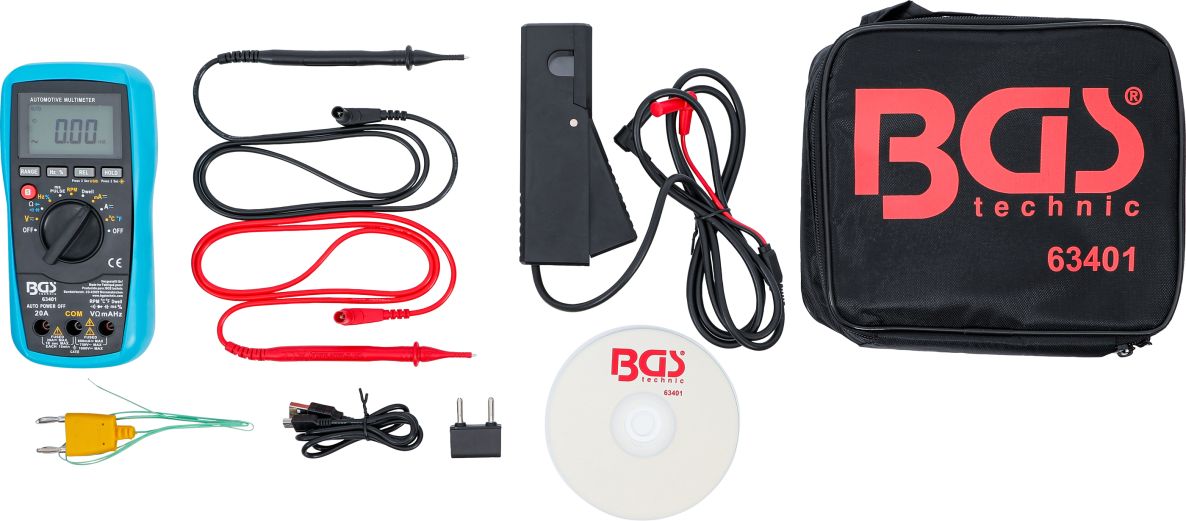

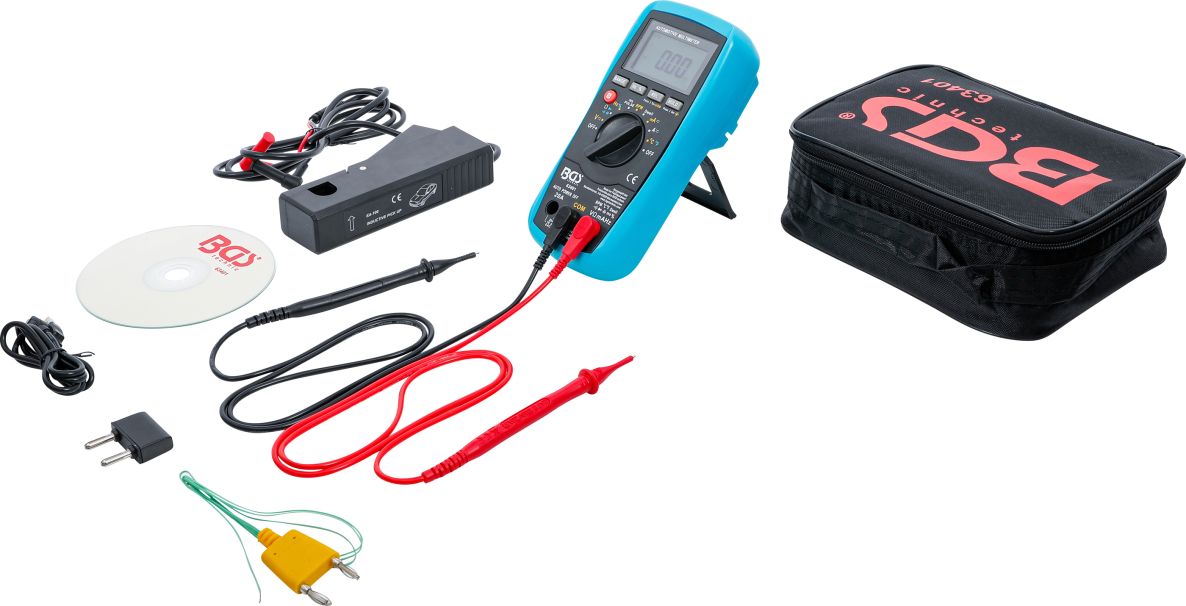

Scope of delivery
- Includes: Temperature measuring probe
- Capacitor adapter
- Inductive clamp
- 2 measuring cables
- USB cable
- CD with driver/software
- Pocket and 9 V battery
