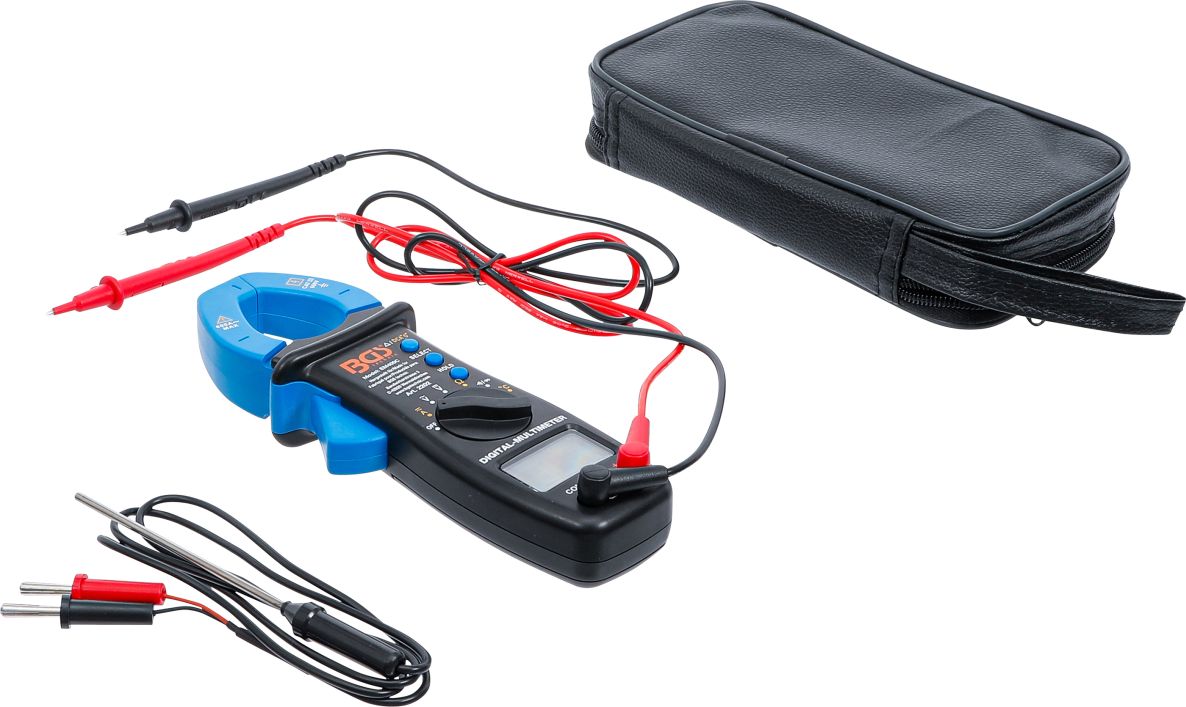

BGS 2202 Digital multimeter with clamp for DC and AC current
Special features
- Specially designed for the automotive sector, but can also be used in other fields
- Display 3-3/4 character LCD, with max. reading 3999
- 2 batteries 1.5 V, AAA or similar
- Low battery charge indicator
- Storage environment -10 - 50 °C, max. 85% RH
- Dimensions 194 x 71 x 38 mm
- Weight approx. 215 g (incl. batteries)
- Suitable for category CAT II
Measurement ranges:
- Measurement ranges DC and AC voltage 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
- Resistance 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ
- AC and direct current up to 400 A, minimum measured value 100 mA
- Negative polarity display and measuring range exceeded
- Max. clamp opening 33 mm, max. conductor Ø 28 mm
Technical data
- Gross weight: 430 g
- Packaging suitable for wall covering: Yes
