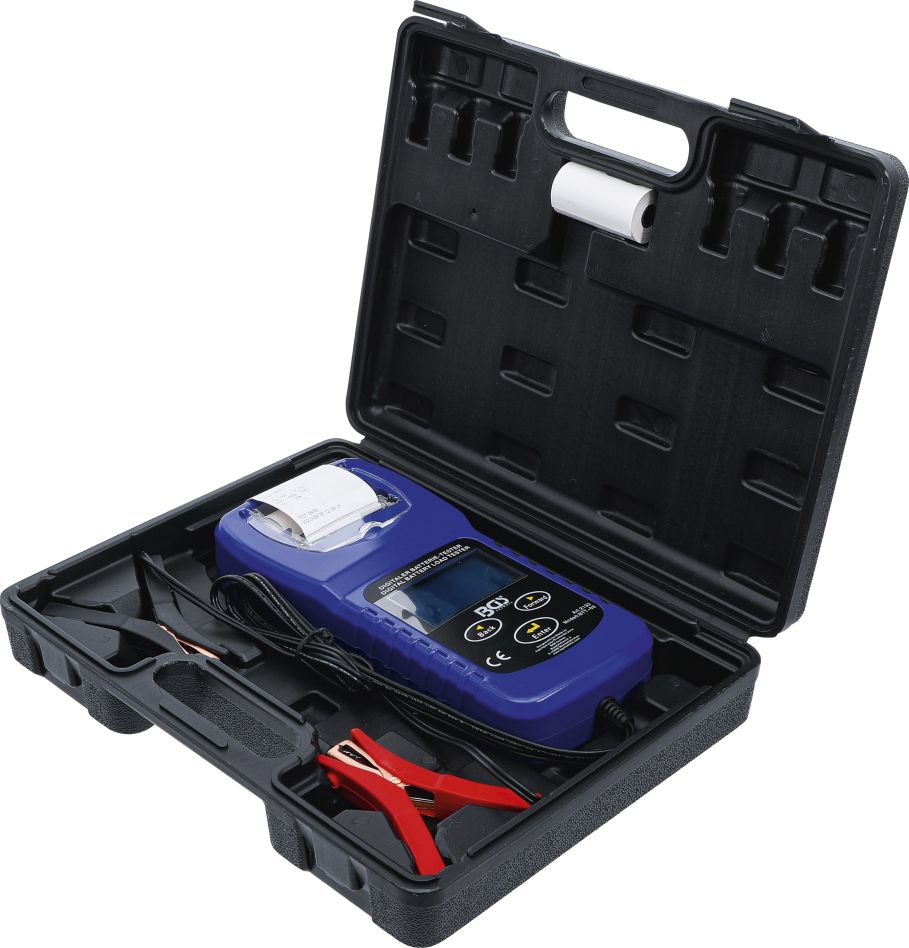

BGS 2133 Digital battery and charging system tester with printer
Special features
- Suitable for 12 V batteries (lead-acid, gel, wet cell, MF, VRLA, AGM and deep cycle batteries)
- Menu-driven, intuitive operation
- Automatic control of the entire test process via menu guidance
- For quick and easy determination of battery performance, taking temperature compensation into account
- Connects to the battery via two plastic-coated alligator clips
- Enables professional examinations for:
- 6 & 12 Volt batteries incl. Measurement of the battery's internal resistance (tolerance: 5 %)
- 12 and 24 V starting systems
- 12 and 24 V charging systems
- Voltage range: 1.5 - 30 V (tolerance: 0.1 V)
- Multi-standard test: SAE, DIN, EN, IEC, CA, JIS
- Operating range SAE: 40 - 2,000 CCA
- Operating range IEC: 30 - 1,500 CCA
- Operating range EN: 40 - 2,100 CCA
- Operating range DIN: 25 - 1,500 CCA
- Operating range CCA: 240 - 1,440 CCA
- Thermal printer for printing the test result
- Display type: 66 x 33 mm LCD
- Battery type: 6 x 1.5 V AA
- Languages: German, English, French, Spanish, Portuguese
Technical data
- Operating temperature max.: 50 °C
- Gross weight: 1742 g
Scope of delivery
- Digital battery and charging system tester
- 2 rolls of printer paper, width: 58 mm, length: 10 m
- 6 batteries, 1.5 V type AA
