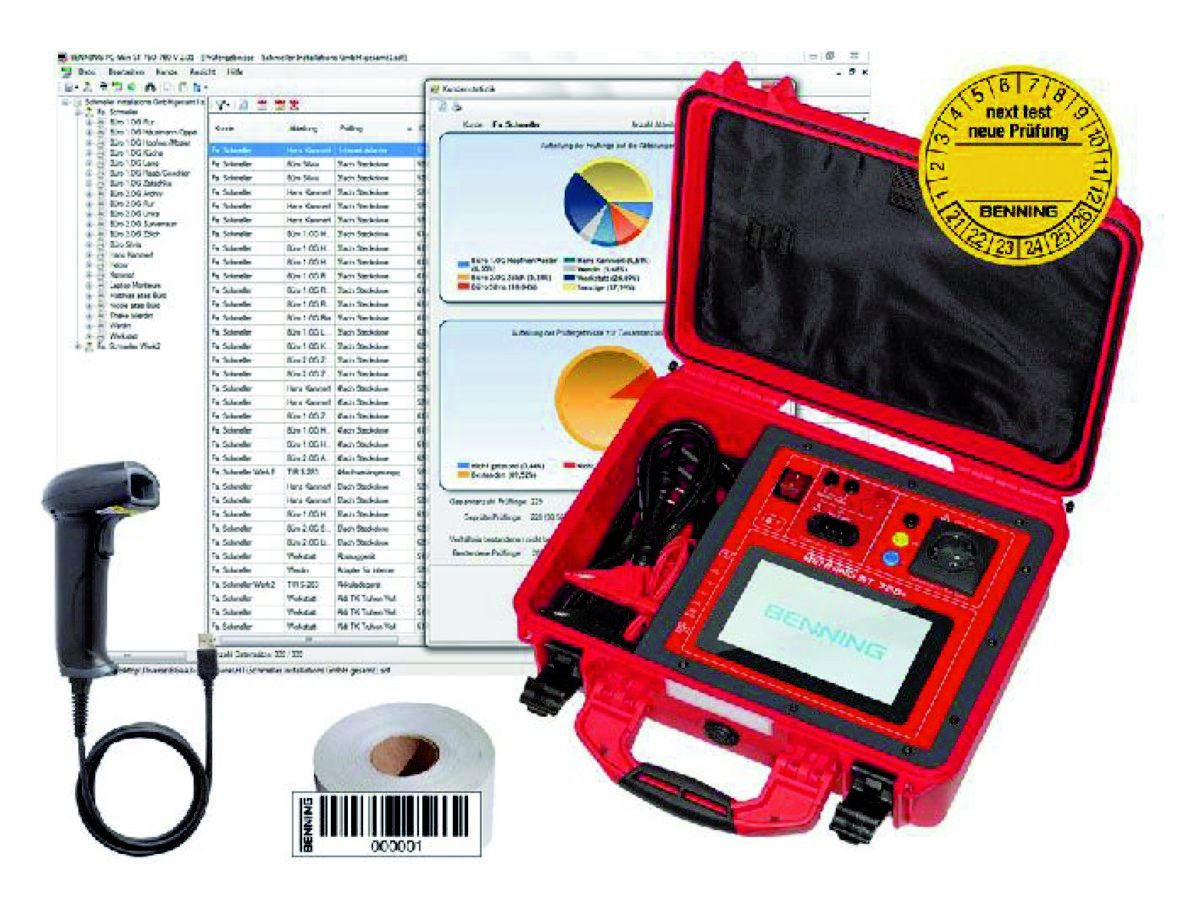

Benning 050333 ST 755+ Appliance Tester Set
For testing electrical appliances and medical electrical devices. The set contains: BENNING ST 755+ (item no. 4405032), BENNING PC-Win ST 750-760 software (item no. 44047002), Barcode scanner (item no. 44009369), Barcode labels (1000 pieces) (item no. 44756301), "new test" test labels (300 pieces) (item no. 44756212).
Special features
- 35% larger user interface thanks to a brilliant 7-inch color touchscreen
- Individually customizable device templates (24 templates per test standard) for quick test preview setup at the touch of a button
- Auto-ID function for automatically increasing the ID number when creating new test objects
- Device data that can be displayed separately via "On/Off Slider" for optimal handling
- Favorites menu to go directly to frequently used submenus
- Delivery includes calibration certificate
Technical data
- Display: Color touchscreen
- Earth resistance (Rpe): 0.05 Ohm - 10 Ohm
- Insulation resistance (Riso): 0.1 MOhm - 100 MOhm
- Ipe/Iber via differential current measurement: 0.03 mA - 25 mA
- Ipe/Iber via equivalent leakage current: 0.03 mA - 25 mA
- Ipe/Iber via direct measurement: 0.03 mA - 25 mA
- RCD test current: 10 mA - 300 mA
- Voltage range: 1 V - 360 V
- Current: 0.1 A - 16 A
- Measurement memory: SD card
- Interface: WLAN, Bluetooth® , 4 x USB, Mini-USB, RJ45
- Software: BENNING PC-Win ST 750-760
Scope of delivery
- Test device in impact-resistant case (IP 67)
- Set of test leads/crocodile clips
- 2-pole test lead
- IEC lead
- SD card
- calibration certificate
- PC-Win ST755-760 software
- Barcode scanner
- Barcode labels (1 set)
- Test labels (1 set)
