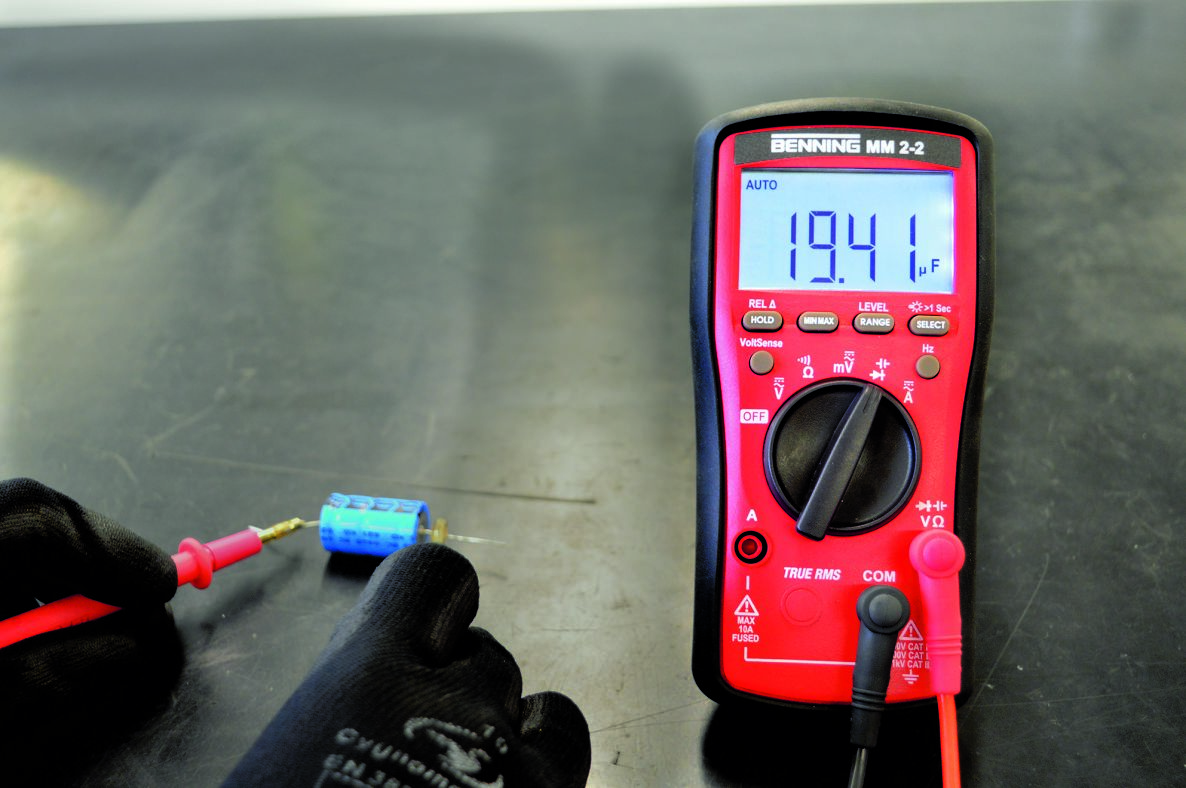

Benning 044692 MM 2-2 Digital Multimeter TRUE RMS
Multimeter in an ergonomic housing with a robust rubber protective cover. For the most demanding measurement tasks in electrical engineering, industry, service, and HVAC technology.
Special features
- Connection check (visual/acoustic) in the A range with warning message in case of incorrect operation (fuse protection)
- Fast continuity test (< 15 ms) with optical and acoustic indication, diode test
- Voltage sensor with 2 sensitivity levels for contactless voltage indication and cable break check
- LCD display with 19 mm digit height and backlight Measurement functions:
- Voltage, current, resistance, continuity, diode test, frequency, capacitance
- Standard: IEC/EN 61010-1 (DIN VDE 0411-1)
- Dimensions: 161 x 80 x 50 mm
- Weight: 334 g (with protective cover and batteries)
- Includes rubber protective cover, carrying case, high-quality silicone test leads with gold-plated 2 mm and 4 mm test tips (screw-on), batteries (2 x 1.5 V micro AAA/IEC LR03) and instruction manual
Technical data
- Distance range: 6,000
- Bar graph: No
- Backlight: Yes
- Accuracy: 0.2 %
- Voltage AC: 10 µV - 600 V
- Voltage DC: 10 µV - 600 V
- Current AC: 1 mA - 10 A
- Current DC: 1 mA - 10 A
- Resistance: 0.1 Ohm - 60 MOhm
- Continuity: Yes
- Diode: Yes
- Frequency: 10 Hz - 1 kHz
- Capacity: 0.01 nF - 10 mF
- Voltage sensor: Yes
- Measurement range selection: Automatic/Manual
- Auto Power-Off: Yes
- Memory function: HOLD, MIN/MAX/AVG, REL
- Measurement method: TRUE RMS
- Measurement category: CAT III 600V
