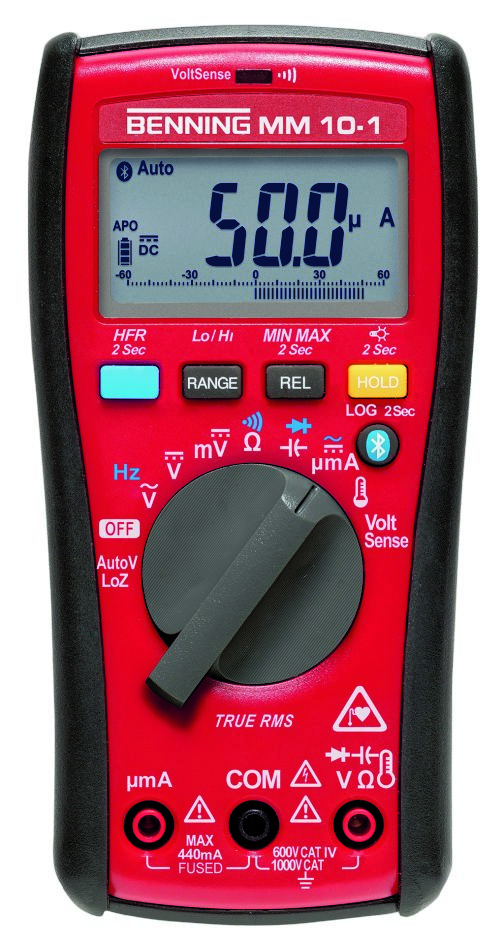

Benning 044687 MM 10-1 Digital Multimeter TRUE RMS
HVAC multimeter for heating, ventilation, and air conditioning, as well as service and industry. With data logger, Bluetooth®, and free app. Microampere current range for ionization current measurements (flame detection) and anodes in hot water supply. AutoV function with low input impedance (LoZ) for suppressing reactive voltages.
Special features
- Data logging function, memory function and Bluetooth® Low Energy 4.0 interface
- BENNING MM-CM Link app for downloading, saving and sharing measurement values via smartphone/tablet
- Low-pass filter (HFR - High-frequency suppression) for measurements on frequency converters (motor controls)
- Memory for measurement value (HOLD) and minimum/maximum value memory (MIN/MAX)
- Voltage sensor for contactless voltage indication and cable break detectionMeasurement functions:
- Voltage, current, resistance, continuity, diode test, frequency, capacitance, temperature
- Standard: IEC/EN 61010-1 (DIN VDE 0411-1)
- Dimensions: 163 x 82 x 50 mm (with protective cover)
- Weight: 425 g (with protective cover)
- Includes rubber protective cover, magnetic holder, carrying bag, safety test leads, wire temperature sensor, batteries, and instruction manual
Technical data
- Distance range: 6,000
- Bar graph: Yes
- Backlight: Yes
- Accuracy: 0.5 %
- Voltage AC: 0.1 mV - 1000 V
- Voltage DC: 0.1 mV - 1000 V
- Current AC: 0.1 µA - 400 mA
- Current DC: 0.1 µA - 400 mA
- Resistance: 0.1 Ohm - 40 MOhm
- Passage: Yes
- Diode: Yes
- Frequency: 0.01 Hz - 100 kHz
- Capacity: 1 nF - 10 mF
- Temperature: -40 °C to +400 °C
- Voltage sensor: Yes
- Interface: Bluetooth®
- Software: app (IOS/Android)
- Filter function: HFR filter (800 Hz)
- Measurement range selection: Automatic
- Auto Power-Off: Yes
- Memory function: HOLD, MAX/MIN, REL, SAVE
- Data logging function: 4000 measurements
- Measurement method: TRUE RMS
- Measurement category: CAT IV 600V
