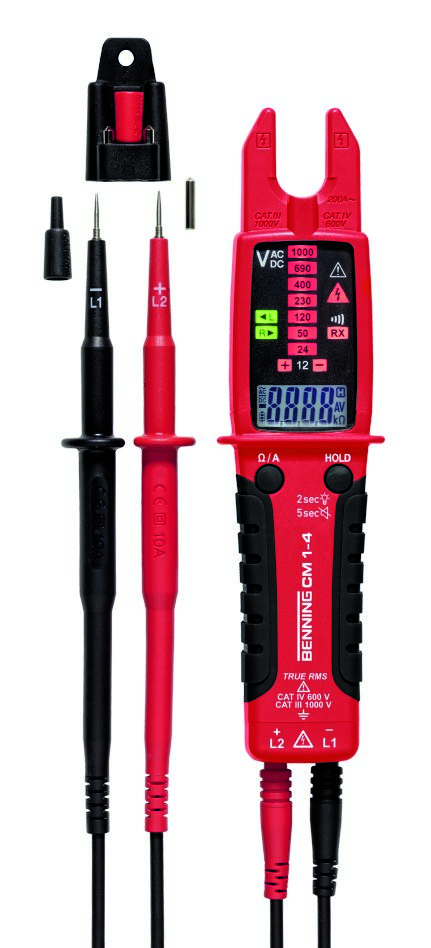

Benning 044686 CM 1-4 Open Clamp Multimeter TRUE RMS
AC measurement up to 200 A AC via open clamp. Voltage measurement up to 1000 V AC/DC (with/without acoustic signal). .
Special features
- Operates without batteries from 50 V onwards
- LED level indication 12, 50, 120, 230, 400, 690, 1000 V
- Rotating field direction indication via green LED
- Single-pole phase indication via red LED
- Continuity test via red LED + acoustic signal
- Polarity indication by means of +/- LED

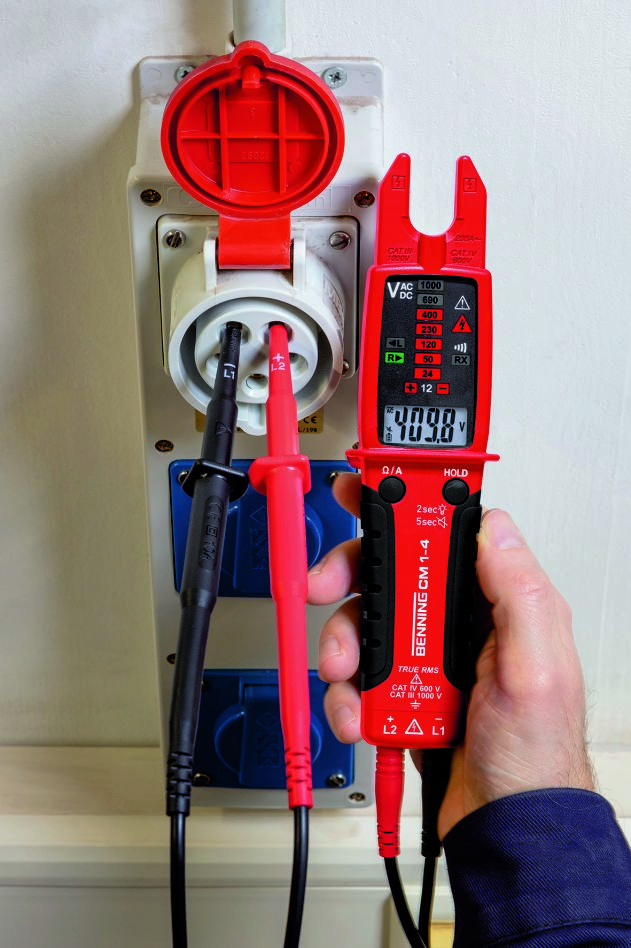

- One-hand operation for voltage measurement at wall sockets (19 mm hole spacing)
- LED measurement object illuminationMultimeter functions:
- Voltage, resistance, continuity
- Standard: IEC/EN 61010-1 (DIN-VDE 0411-1)
- Dimensions: 220 x 57 x 35 mm
- Weight: 200 g
- Includes belt holster, safety test leads, test point protection, insert caps, 4 mm test point magnifiers, batteries and instruction manual
Technical data
- Indication range: 9999
- Bar graph: No
- Backlight: Yes
- Accuracy: 1 %
- Voltage AC: 6 V - 1000 V
- Voltage DC: 6 V - 1000 V
- Current AC: 0.1 A - 200 A
- Resistance: 1 Ohm - 50 kOhm
- Continuity: Yes
- Diode: No
- Voltage sensor: No
- Measurement range selection: Automatic
- Auto-Power-Off: Yes
- Memory function: HOLD
- Measuring method: TRUE RMS
- Clamp opening: 16 mm
- Measurement category: CAT IV 600V
