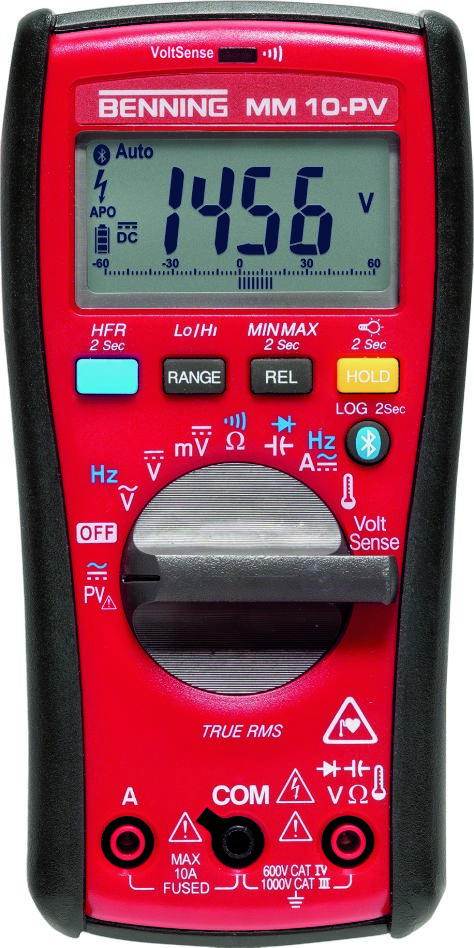

Benning 044089 MM 10-PV Digital Multimeter TRUE RMS
PV multimeter for photovoltaic systems and high-voltage applications. With data logger, Bluetooth® and free app.
Special features
- Data logging function, memory function and Bluetooth® Low Energy 4.0 interface
- BENNING MM-CM Link app for downloading, saving and sharing measurement values via smartphone/tablet
- Low-pass filter (HFR High-frequency suppression) for measurements on frequency converters (motor controls)
- Memory for measurement value (HOLD) and minimum/maximum value memory (MIN/MAX)
- Voltage sensor for contactless voltage indication and cable break detectionMeasurement functions:
- Voltage, current, resistance, continuity, diode test, frequency, capacitance, temperature
- Standard: IEC/EN 61010-1 (DIN VDE 0411-1)
- Dimensions: 163 x 82 x 50 mm (with protective cover)
- Weight: 425 g (with protective cover)
- Includes rubber protective cover, magnetic holder, bag, safety test leads, safety alligator clips, TA PV test adapter, wire temperature sensor, batteries and user manual
Technical data
- Indication range: 6,000
- Bar graph: Yes
- Backlight: Yes
- Accuracy: 0.5 %
- Voltage AC: 0.1 mV - 1000 V (1500 V via TA PV)
- Voltage DC: 0.1 mV - 1000 V (2000 V via TA PV)
- Current AC: 1 mA - 10 A
- Current DC: 1 mA - 10 A
- Resistance: 0.1 Ohm - 40 MOhm
- Continuousness: Yes
- Diode: Yes
- Frequency: 0.01 Hz - 100 kHz
- Capacity: 1 nF - 10 mF
- Temperature: -40 °C to +400 °C
- Voltage sensor: Yes
- Interface: Bluetooth®
- Software: app (IOS/Android)
- Filter function: HFR filter (800 Hz)
- Measurement range selection: Automatic
- Auto Power-Off: Yes
- Memory function: HOLD, MAX/MIN, REL, SAVE
- Data logging function: 4000 measurements
- Measurement method: TRUE RMS
- Measurement category: CAT IV 600V
