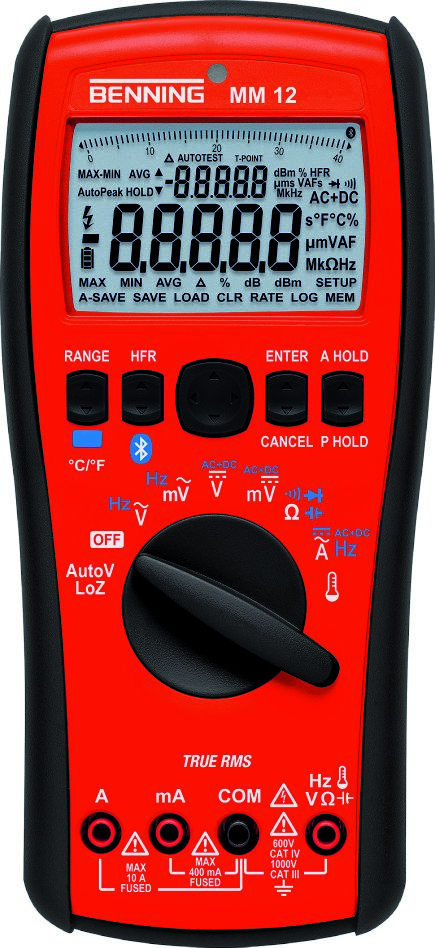

Benning 044088 MM 12 Digital Multimeter TRUE RMS

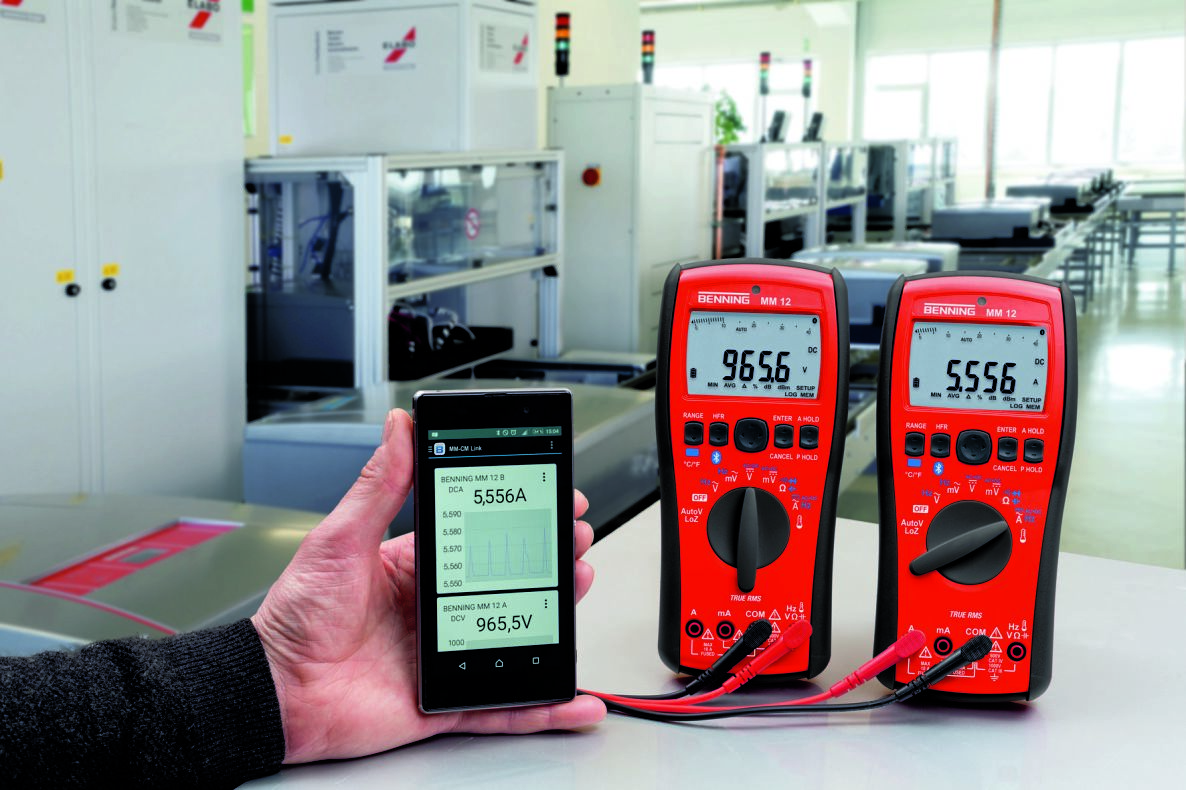

Multimeter with data logging function and Bluetooth® interface, for all advanced measuring tasks in industry and service. Monitor, store, and share measured values for further evaluation within your organization via the free BENNING MM-CM Link app.
Special features
- Data logging function LOG (40,000 measured values, sampling frequency: 1 s to 10 min.)
- Memory function MEM (1,000 measured values, automatic storage of stable measured values and manual storage with a simple keystroke)
- Bluetooth® Low Energy 4.0 and optical interface via USB connection, IOS and Android™ app for data transfer to smartphone/tablet
- AutoV function for automatic AC/DC voltage detection and low input impedance (LoZ for suppressing reactive voltages)
- Low-pass filter (HFR) suppresses high-frequency interference signals during measurements on electronic motor controllers
- Easy selection of menu functions via the cursor key
- Measurement value memory (HOLD), peak value (P-HOLD), relative value (REL), maximum/minimum/average values (MAX/MIN/AVG) and level measurement (dB/dBm)
- Secondary display shows stored memory value
- Auto-SAVE function, save without button operationMeasurement functions:
- Voltage, current, resistance, continuity, diode test, frequency, capacitance, temperature
- Standard: IEC/EN 61010-1 (DIN VDE 0411-1)
- Dimensions: 206 x 94 x 54 mm (with rubber protective cover)
- Weight: 640 g (with rubber protective cover)

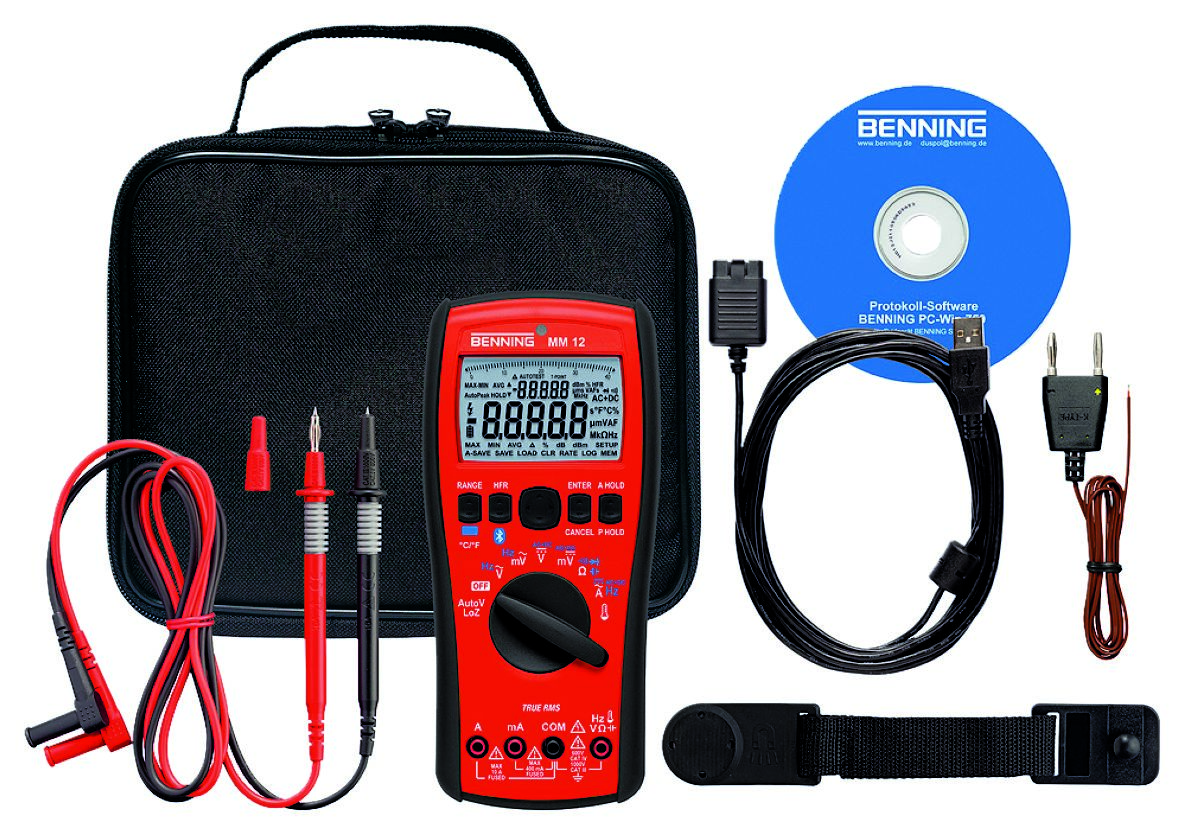

- Includes rubber protective cover, magnetic holder, bag, safety test leads, temperature sensor, PC software, USB data cable, batteries, user manual and calibration certificate
Technical data
- Indication range: 40,000
- Bar chart: Yes
- Backlight: Yes
- Accuracy: 0.5 %
- Voltage AC: 10µV - 1000 V
- Voltage DC: 10µV - 1000 V
- Current AC: 10 µA - 10 A
- Current DC: 10µA - 10 A
- Resistance: 0.1 Ohm - 40 MOhm
- Continuity: Yes
- Diode: Yes
- Frequency: 0.1 Hz - 100 kHz
- Capacity: 0.01 nF - 40 mF
- Temperature: -200 °C to +1200 °C
- Voltage sensor: No
- Interface: Bluetooth®, USB
- Software: PC-Win MM 12
- Filter function: HFR filter (800 Hz)
- Measurement range selection: Automatic/Manual
- Auto Power-Off: Yes
- Memory function: HOLD, PEAK, MAX/MIN, SAVE
- Data logging function: 40,000 measurements
- Measurement method: TRUE RMS
- Measurement category: CAT IV 600V
