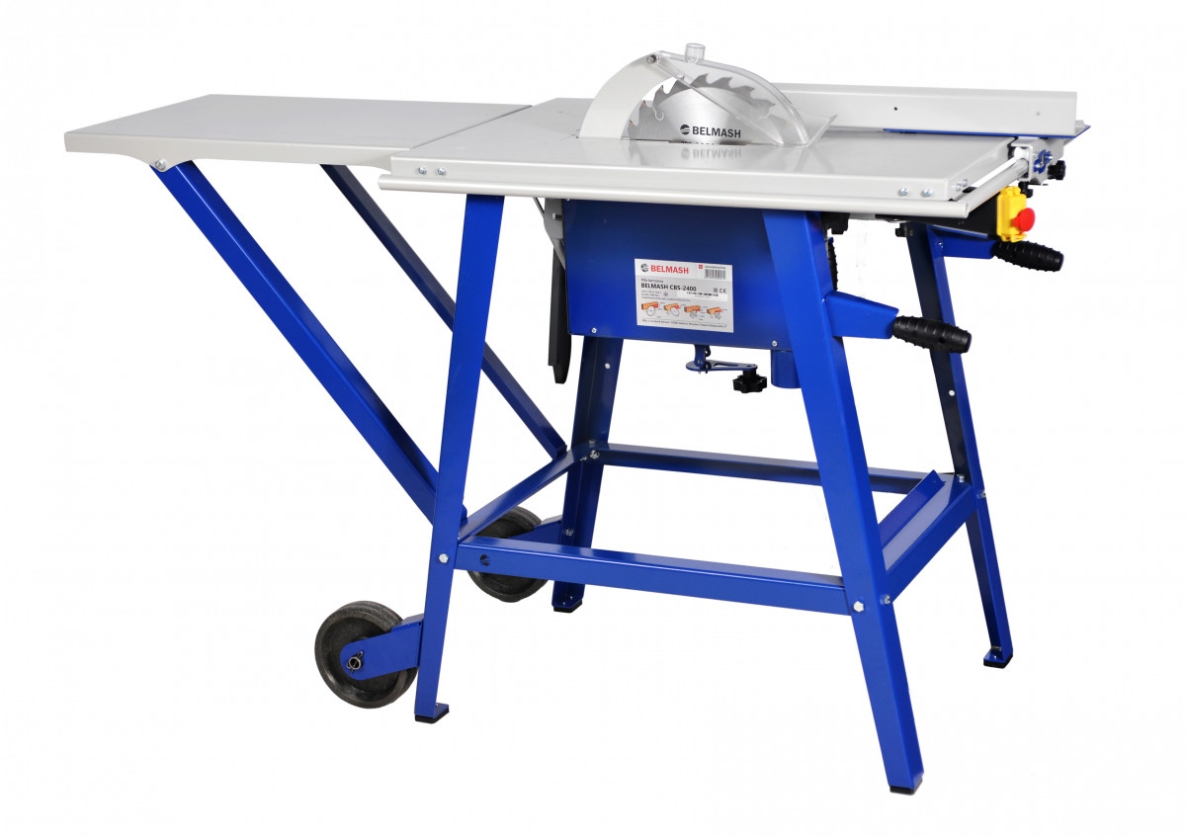

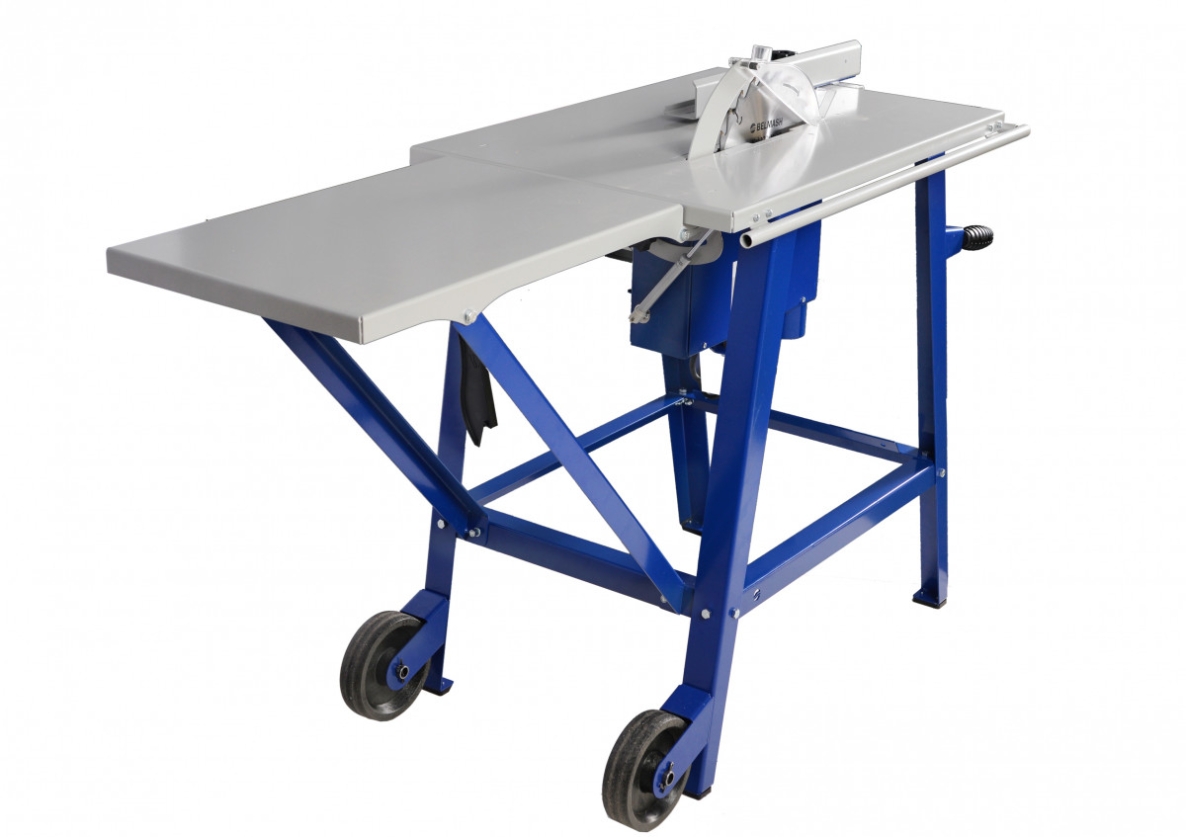

Belmash CBS2400 Table Saw 230 Volt
Portable and compact table saw 230V 3.5HP induction motor. Adjustable height up to 103mm and tiltable up to 45°.
Special features
- 230V, 3.5 HP powerful induction motor
- No carbon brushes
- 40% less noise, 30% more power
- Ability to work with groove cutters
- Compact and mobile
- Belt driven
- Saw blade height adjustable from 0 to 103mm
- Solid sheet metal tables 2.5mm thick
- Inclined saw blade adjustable from 0 to 70mm with gas spring
- Guide can be clamped both front and back for stable and precise work
- Rotary switch
- Clear measurement markings on steel band
Technical Specifications
- Sawing height (90°) 103mm
- Sawing height (45°) 70mm
- Tiltable 0 - 45°
- Planer spindle/saw blade speed 2850 RPM
- Motor 230V, 50Hz, 2400W
- Machine weight 64 kg
- Work table dimensions 800x550
- Work table cross-section with extra top 1400x550
- Saw blade 280x30mm
Standard included
- Saw blade
- Mobile base
- Miter guide
- Foldable back table
