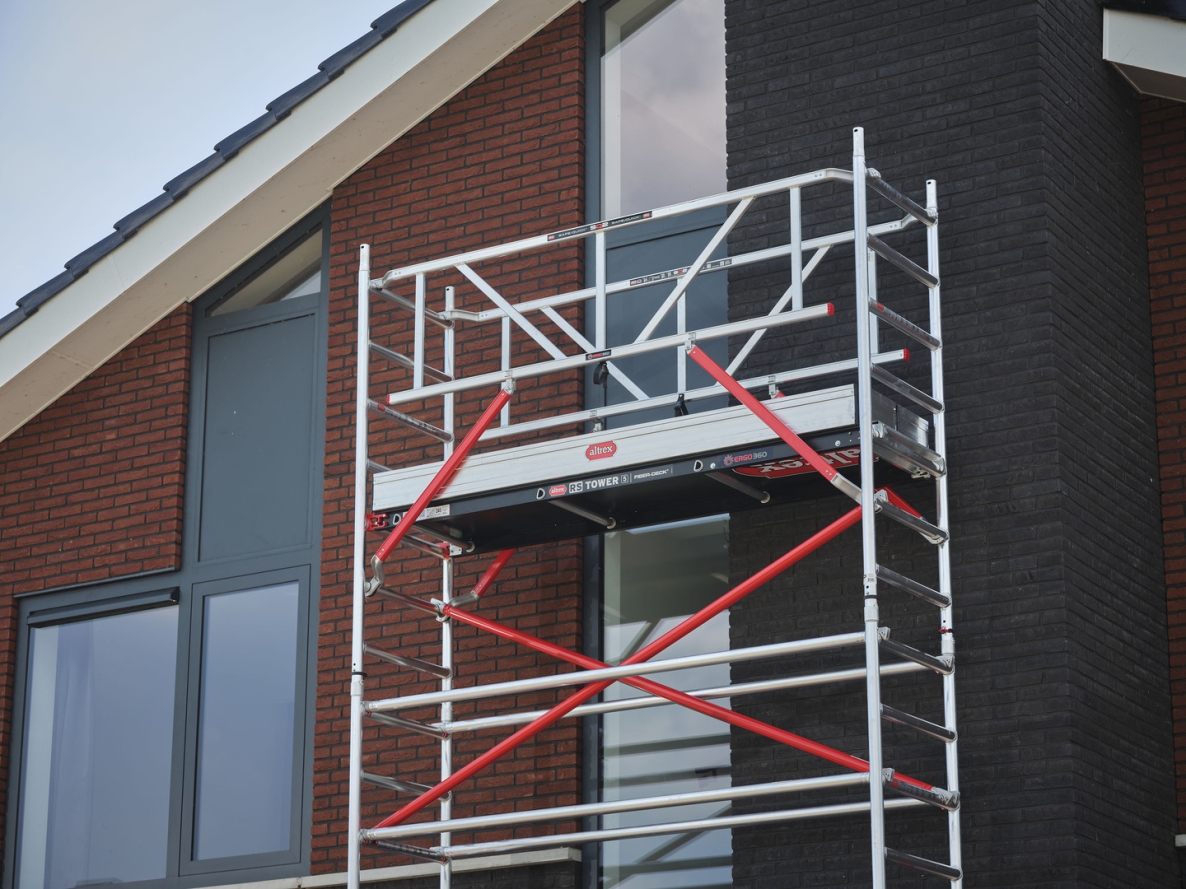

Altrex RS TOWER 51-S 8.2m working height Fiber-Deck 2.45 Safe-Quick
Special features
- RS TOWER 51 Narrow mobile scaffold
- Up to 10.2 meters working height
- Narrow mobile scaffold, for narrow spaces
- Safe-Quick complies with safe assembly method 1-1-2018
- Combinable with all components from the RS TOWER 5 series
- Wooden or lightweight Fiber-Deck platforms
- Also available in combination with braces RS TOWER 51 Narrow mobile scaffold
- The system with unprecedented possibilities The RS TOWER 51 is the mobile scaffold you can rely on, both indoors and outdoors
- The system can be expanded with all components from the RS TOWER 5-series
- Moreover, you can connect the scaffold to other applications, such as a walkway or cantilever console
- This makes your scaffold not only strong and safe, but above all very flexible
- You create your own custom solution with the RS TOWER 51
- And that up to a height of 10.2 meters indoors and outdoors
- With narrow frames of 0.75 and 0.90 meters and a load capacity of up to 250 kg per platform, this scaffold is suitable for placement in narrow spaces
- The platform is available in lengths of: 1.85, 2.45 or 3.05 meters
- All-round welded anti-slip rungs and fixed locking pins make the frame rock-solid and 100% reliable
- Narrow rolling scaffold, for narrow spaces Narrow rolling scaffolds have frames of 0.75 and 0.90 meters
- That means that one platform can be placed per level
- This makes narrow scaffolds extremely suitable if you have limited space
- Configuring and combining The mobile scaffold system can be extended with components from the RS TOWER 5 series and combined with other applications, such as a walkway and cantilever console
- Always safe with Safe-Quick With the innovative Safe-Quick GuardRail, you install a permanent handrail even before stepping onto the platform
- This ensures you are protected all around at every level
- Moreover, Safe-Quick complies with the new assembly method that is mandatory from 1-1-2018
- Strong connections Crimped claw-brace tube connections make the RS TOWER 51 extremely strong
- The connections are not welded and can take a beating
- Wooden or lightweight platforms The system is available with wooden or lightweight platforms
- Fiber-Deck platforms are 30% lighter and make assembly and disassembly quick and easy
- Integrated wind uplift protection With the innovative platform hook, you assemble and disassemble even faster
- The wind uplift protection is integrated into the unique design
- Continuation possible With the RS TOWER 5, it is possible to connect multiple scaffolds together
- This allows you to create a large working surface without any height difference occurring between platforms
- That is practical and, in particular, very safe
- Double-braked wheels Your rolling scaffold stands firmly in place with the double-braked wheels
- Easy to unlock by hand and adjustable by up to 25 cm.
Technical data
- Floor area : 4870 x 2730 mm
- Basic dimensions: 0.75 mx 2.45 m
- Platform material: Fiber-Deck
- Max. standing height: 6200 mm
- Max. working height : 8200 mm
Standard included
- Narrow assembly frame 7 rungs RS TOWER 56x
- Narrow assembly frame 4 rungs RS TOWER 52x
- Wheel stand with wheel Ø 200 mm RS TOWER 54x
- Fiber-Deck® platform 245 with hatch RS TOWER 53x
- Safe-Quick 7x
- Uncoated horizontal brace 245 RS TOWER 52x
- Easy-Lock triangular stabilizer RS5 red 4x
- Aluminum kickboard set 0.75 x 2.45 RS TOWER 51x

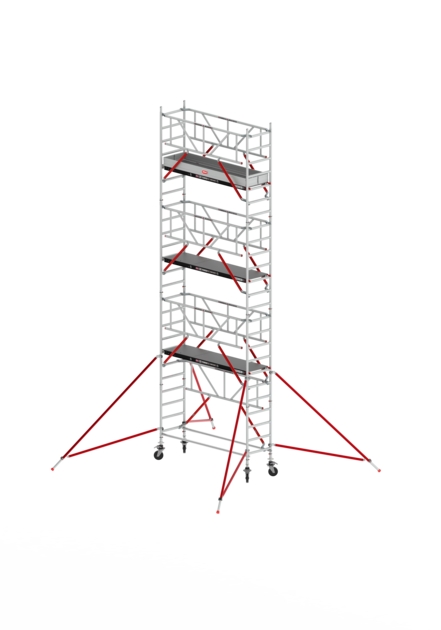

Image may vary
