Altrex C520116 Shuttle lifting system 10.20 m working height
The Shuttle is a modular scaffolding lifting system and can be equipped with a Solar Set or Carrier Set. With the Solar Set, you can safely and quickly hoist two solar panels with a total weight of up to 60 kilograms simultaneously. With the Carrier Set, you can easily and ergonomically hoist up to 30 kilograms of materials onto the work platform at a time. The Carrier Set comes with its own console. Additionally, the crate carrier also fits on the console of the Solar Set.
For the RS TOWER 52, 53, and 55 mobile scaffolds, the Shuttle lifting system is suitable for use with both the Solar Set and the Carrier Set. For the RS TOWER 51 and 54 mobile scaffolds, MiTOWER, and MiTOWER PLUS, the Shuttle is only available with the Carrier Set version. The Shuttle lifting system consists of guide profiles, a winch, and perse consoles. The guide profiles are easy to clamp to the rungs and the winch is operated with a cordless drill.
The Carrier Set (item number 520107) consists of a combination of item numbers 520104, 520105 and 520106. The Solar Set (item number C520122) consists of item numbers 520108, 520124 and 307041
Features
- Lightweight
- Quick and easy to assemble
- Operated with just a cordless drill
- Safe hoisting of tools and solar panels
- Flexibility through the use of 1 and 2 meter profiles
Operated with just a cordless drill
- The winch is operated with a cordless drill and can lift up to 30kg.
- By rotating the cordless drill counterclockwise, the console is lifted.

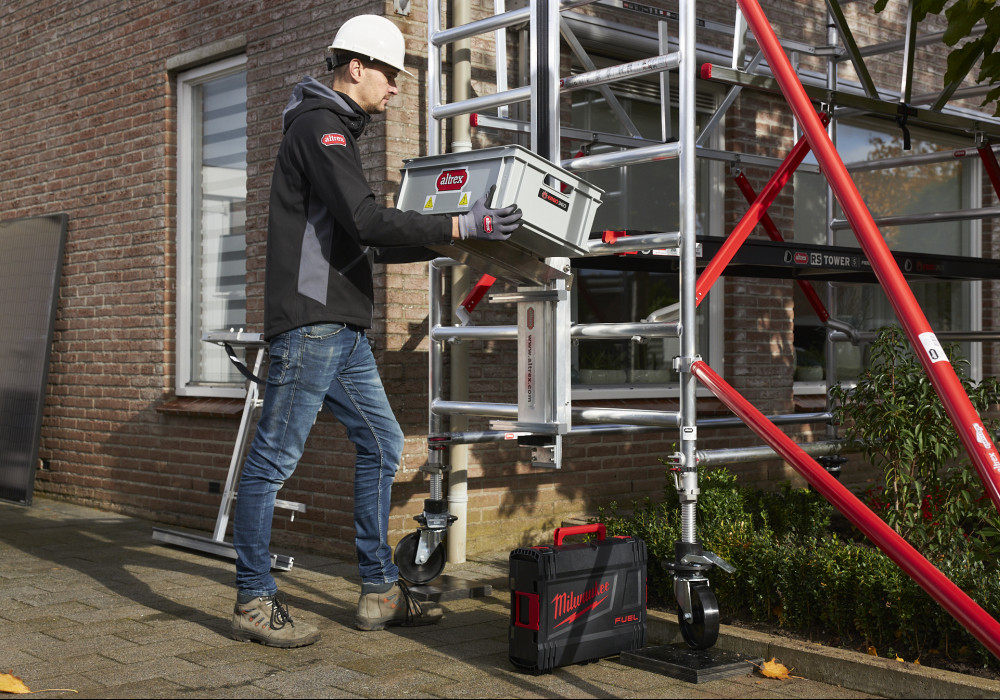

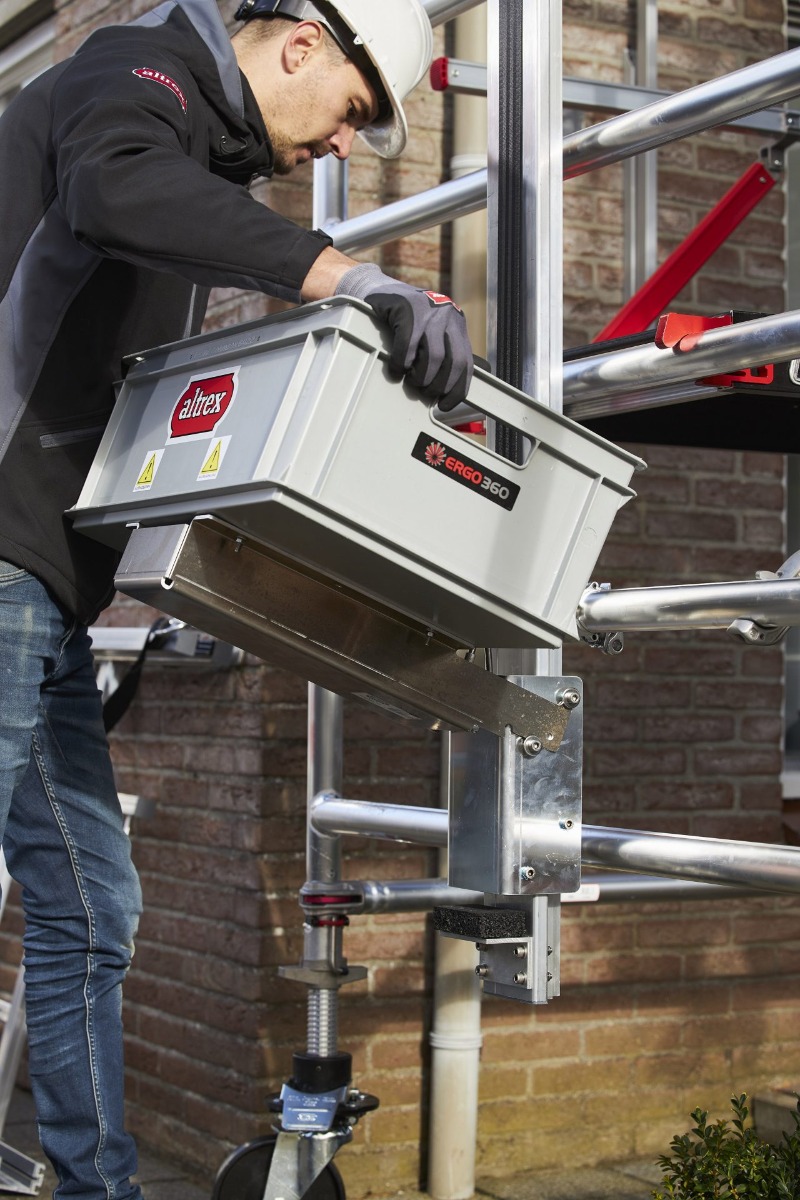

Shuttle with Carrier set
- With the Carrier Set, you safely and ergonomically hoist all materials to your workplace on the scaffold.
- The Carrier Set comes with its own console.
- Additionally, the crate carrier also fits on the console of the Solar Set.
- In addition to regular rolling scaffolds, the Carrier Set is also suitable for the one-person assembled MiTOWER and MiTOWER PLUS rolling scaffolds.

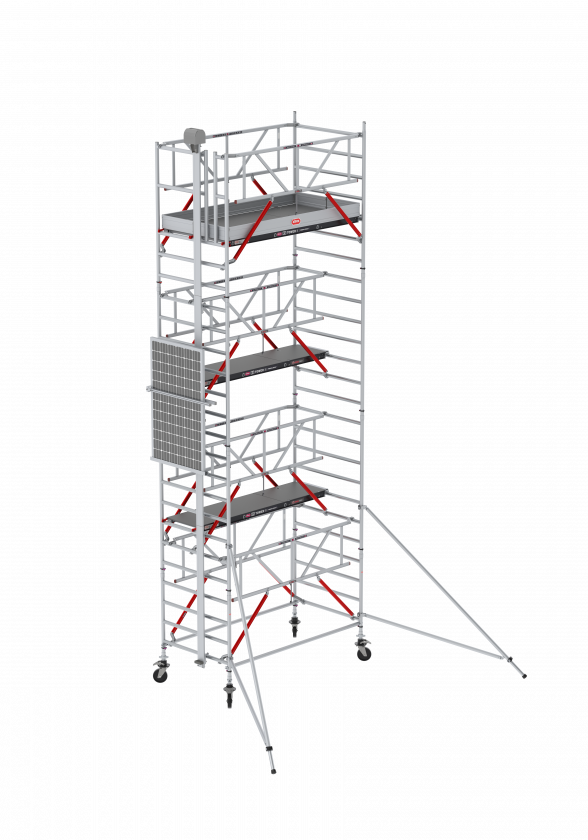

Shuttle with Solar panel
- With the Solar Set, you safely and quickly hoist two solar panels up at a time.
- When using the Solar Set, the special frame for solar panels must be placed.
Shuttle Solar panel can be rotated 90°
- Together with the Solar mounting frame, the panel can be rotated 90°.
- This allows you to safely and easily place the solar panel on the work platform.
Scope of delivery
- 1 x Shuttle base profile easylock
- 1 x Shuttle profile short without coupling
- 3 x Shuttle profile long without coupling
- 4 x Shuttle coupling easylock
- 1 x Shuttle winch 60kg
Please note!
The Carrier Set and/or Solar Set is not included but is necessary for use.
Scaffolding not included
