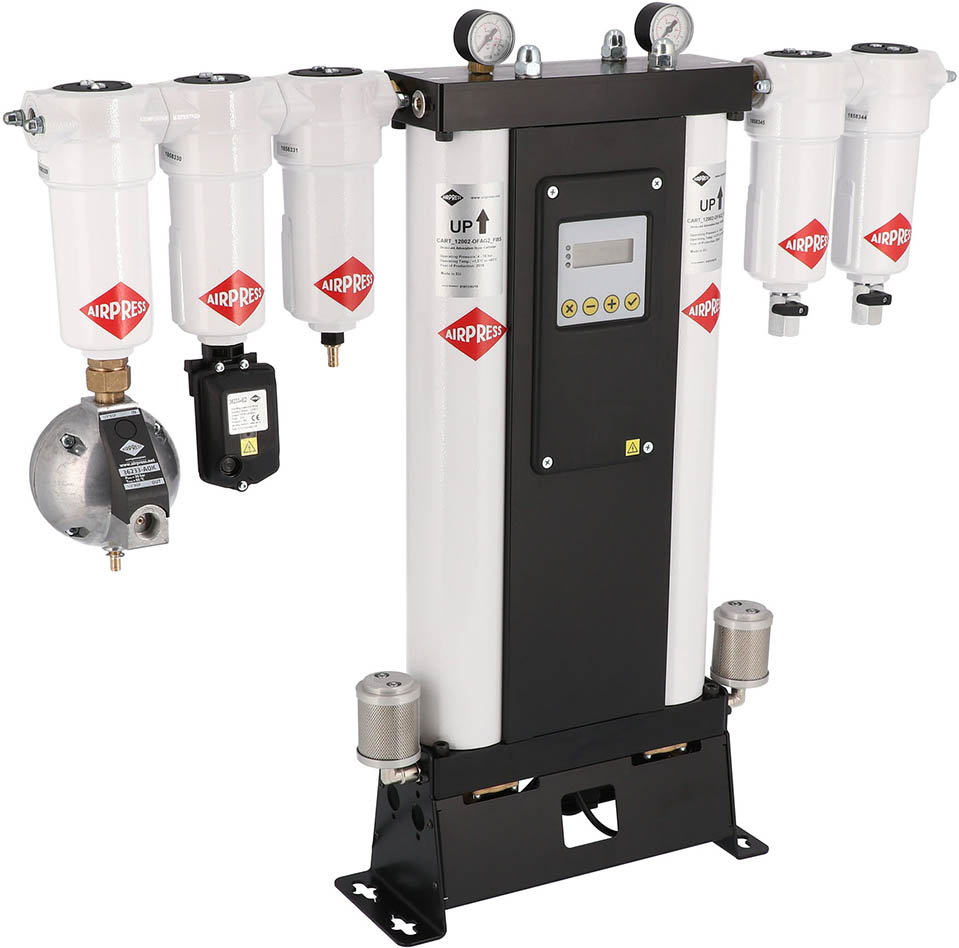

Airpress 47028-OFAG2 Adsorption Dryer Set ISO 470 l/min
Special Features
- For specific applications and very clean compressed air, Airpress has assembled a complete conditioning set.
- The filters remove the fine dust, the activated carbon (cartridge) removes the oil vapors, and the dryer achieves a pressure dew point of at least -20°C.
- A continuous process through a reliable compressed air supply is a proven fact.
- Therefore, Airpress has developed the OFAG2 for all applications where compressed air according to the ISO8573-1 standard is mandatory.
- Airpress is the only compressed air supplier to provide a ready-made solution that is delivered plug and play.
- With a continuous pressure dew point of at least -20°C, which by the By using an adsorption dryer specially developed for Airpress, moisture in your pneumatics is eliminated.
- Thanks to the R&D department, our OFAG2 sets can be ordered in 4 versions that are precisely tailored to the capacity of our compressors.
- This limits the purge air consumption, which is necessary to achieve these low values, to a minimum.
- The advantage is an efficient installation with maximum capacity and drying of the compressed air.
- Naturally, the OFAG2 series is equipped with all the necessary filtration required to completely free the compressed air from dust, moisture, and oil particles in accordance with the ISO8573-1:1.3.1 / 0 standard.
Technical data
- Weight (kg) 30.00
- Air connection 3/8"
Standard included
- Manual
