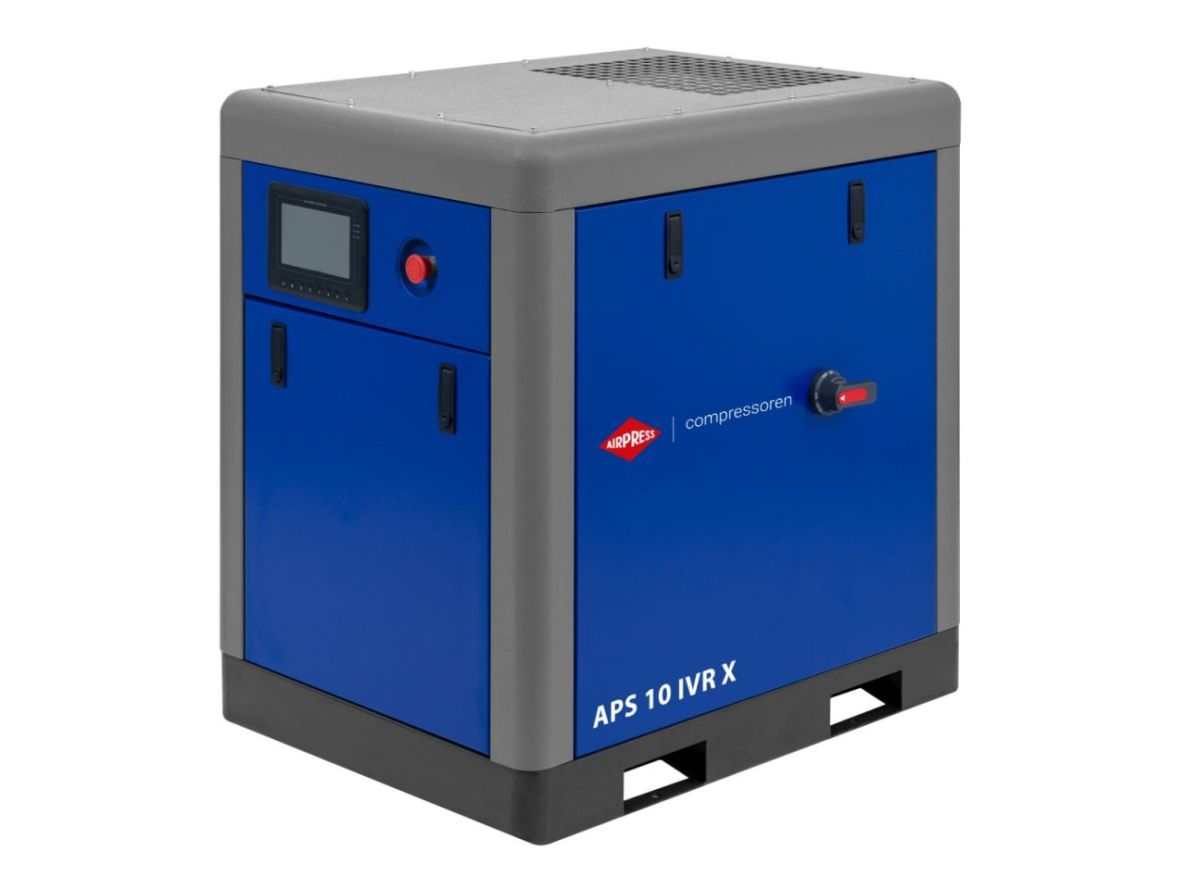

Airpress 369410-IVR APS 10 IVR X Screw Compressor 400 Volt
Features
- A compressor with great qualities and characteristics.
- This 7.5 kW, direct-drive screw compressor features the latest technologies.
- For instance, this machine features a Permanent Magnetmotor for optimal energy saving (up to 8% higher than a standard Asynchronous motor) and the compressor is equipped with a wifi module to monitor and regulate the compressor remotely.
- The output is a maximum 1120 liters per minute.
- All parameters can be read and set in the menu of the very comprehensive yet clear controller, which is equipped with a full-colour touchscreen.
- This allows every APS 10 X IVR to be adjusted per situation formaximum efficiency.
- All components are easily accessible when the panels are removed for maintenance.
- The machine has been carefully designed, resulting in fewer parts that are maintenance-prone.
- The service interval of 3,000 hours also ensures lower maintenance costs.
- This machine is highly suitable for small to medium-sized businesses, such as garages.
X-Series Compressors
- By continuously investing in the development of our products, the Airpress Group presents a new series of screw compressors.
- The screw compressors are available from 5.5 kW to 37 kW. The APS X-series is available in two versions: fixed-speed or speed-controlled.
- Machines from 15 kW are also available with a two-stage screw block.
- These versions offer increased performance with the same power consumption as a single-stage version. Depending on requirements, these machines are available as a standalone unit, mounted on a tank, or mounted on a tank and equipped with a compressed air dryer.
- X-series compressors are characterized by a new generation of screw blocks.
- Thanks to the direct drive, losses due to transmission are avoided.
- Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimal costs.
- Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary.
Technical data
- Power hp / kW 10 / 7.5
- Stages 1
- Capacity at 7 bar (l/min) 1120
- Capacity at 8 bar (l/min) 1050
- Capacity at 10 bar (l/min) 920
- Refrigerant Air
- Drive Direct
- Start Inverter
- Length, Width, Height (mm) 910 x 700 x 925
- Weight (kg) 200
- Operation Touchscreen
- Display Color
- Noise level dB(A) 63
- Air connection 3/4
Standard included
- Manual
- On Pallet
- Supplied without tank and connection material
