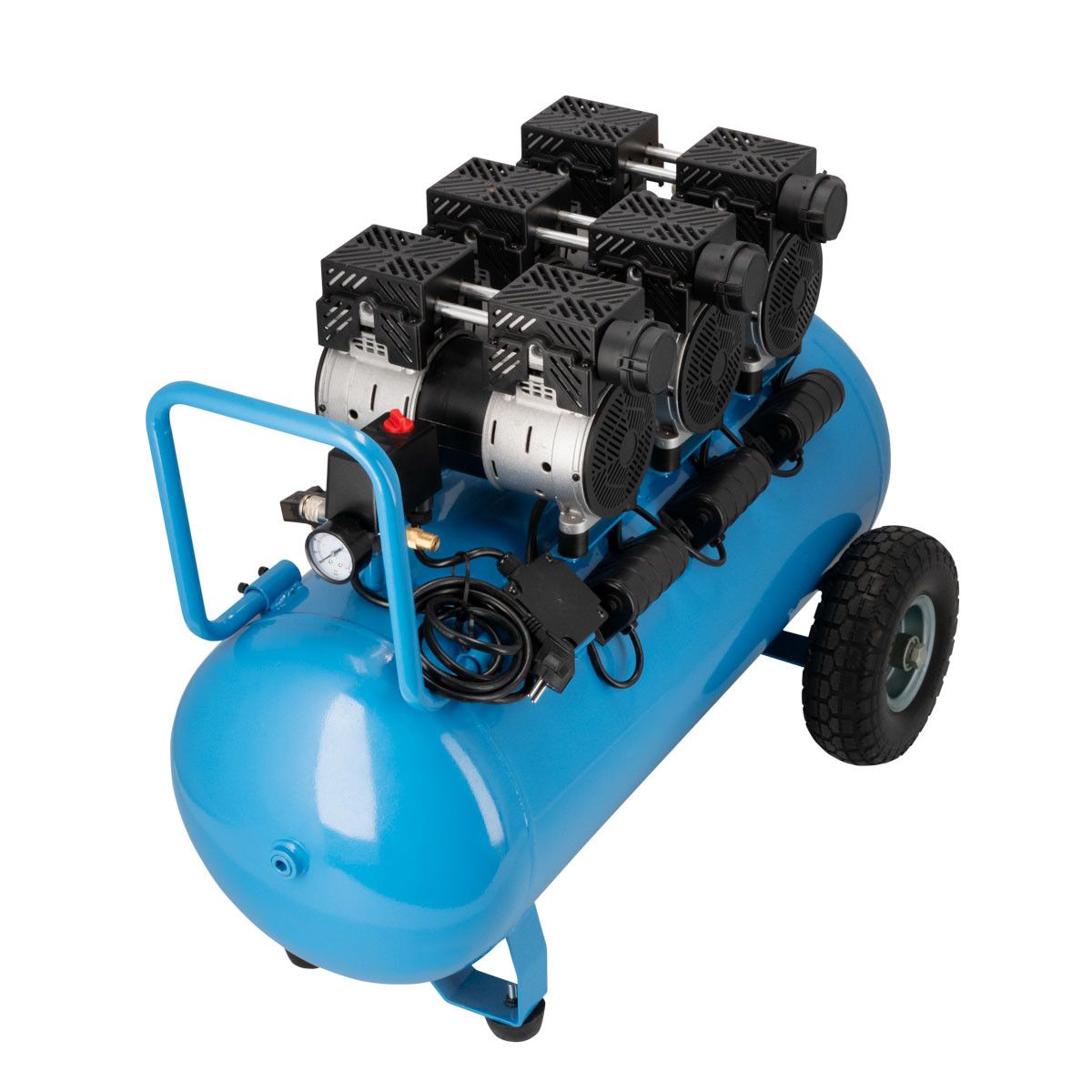

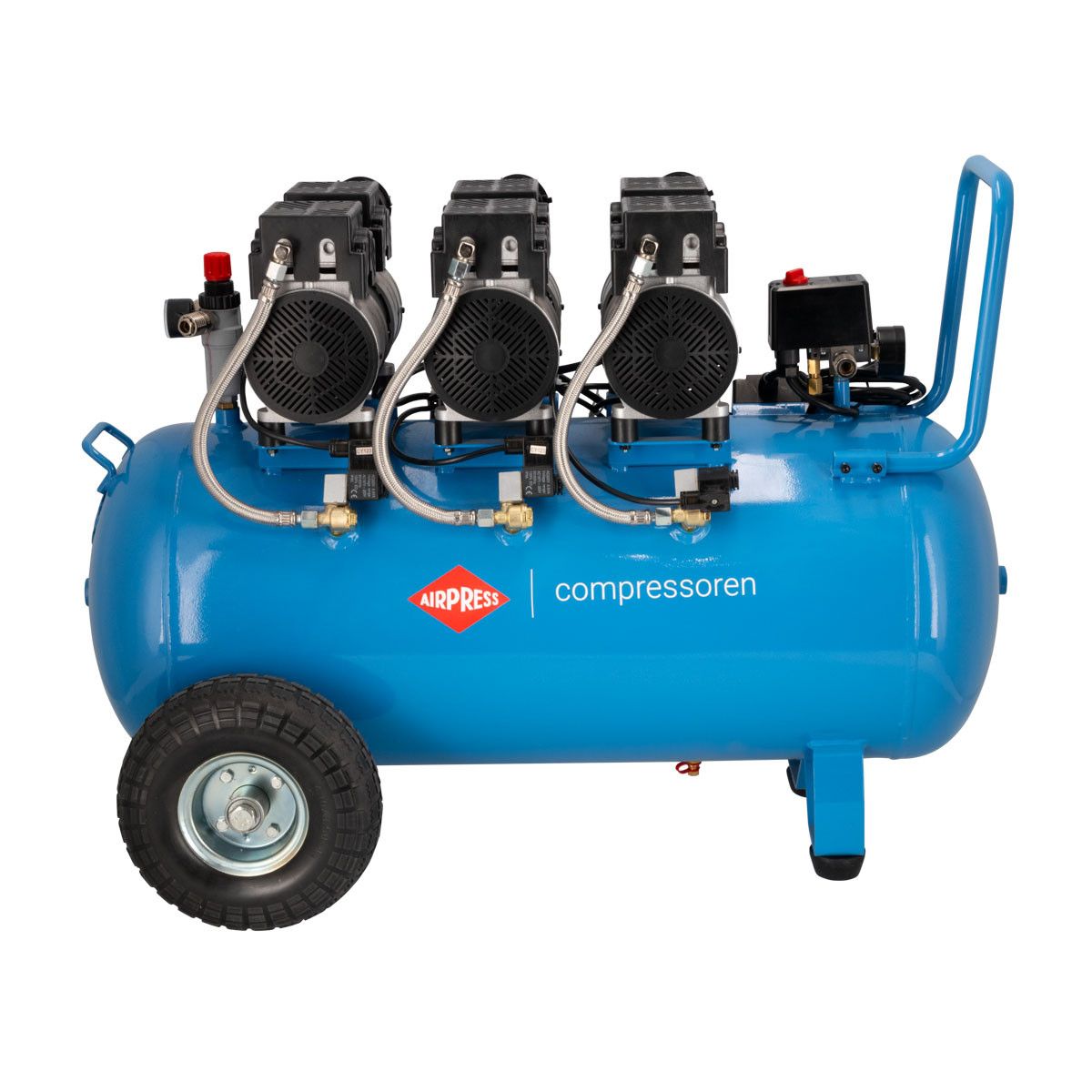

Airpress 36537 Compressor LMO 100-380 Silent Silent oil-free compressor 8 bar 3 hp (3 x 1 hp) / 2.25 kW 280 l/min 90 l
Special features:
- Silent, oil-free compressor for optimal working comfort
- Maximum pressure of 8 bar
- Capacity of 280 l/min
- 90-liter pressure vessel
- Suitable for powering pneumatic tools and workshop use
- Oil-free technology for clean compressed air
- Low noise level of only 60 dB(A) at 4 meters distance
- Large tires for easy movement
- Equipped with filter and pressure reducing valve
- Ergonomic handle for comfortable transport
Technical Data
- Weight: 65 kg
- Total weight: 76 kg
- Dimensions (L × W × H): 970 × 520 × 705 mm
- Drive: Direct driven 1:1
- Start: Direct
- Motor type: AC
- Motor efficiency class: F
- Number of cylinders: 6
- Number of stages: 1
- Pump speed: 1450 rpm
- Pressure vessel: Yes
- Galvanized pressure vessel: No
- Load (work/rest %): 20/80
- Minimum working pressure: 6 bar
- Effective capacity: 16.8 m³/h
- Effective capacity at 6 bar: 160 L/min
- Effective capacity at 8 bar: 140 L/min
- Noise level (4 m): 60 dB(A)
- Noise level (7 m): 55 dB(A)
- Noise-attenuated: No
- Connection type: Universal
- Number of air outlets: 2
- Number of reducible air outlets: 2
- Ambient temperature: 5–40 °C
- Oil-free: Yes
- Amperage: 10 A
- Cable length: 2.2 m
- IP rating: IP20
- Aftercooler: No
- Intercooler: No
- Wheels: Yes
- Filter with pressure reducing valve: Yes
- Manufacturer: Airpress Polska Sp. zo oo
- Power: 3 hp (3 × 1 hp) / 2.25 kW
- Voltage: 230 V / 50 Hz / 1 Ph
- Suction capacity: 388 L/min
- Effective capacity: 280 L/min
- Pressure vessel capacity: 90 L
- Maximum pressure: 8 bar
- Noise level (0 m): 80 dB(A)
