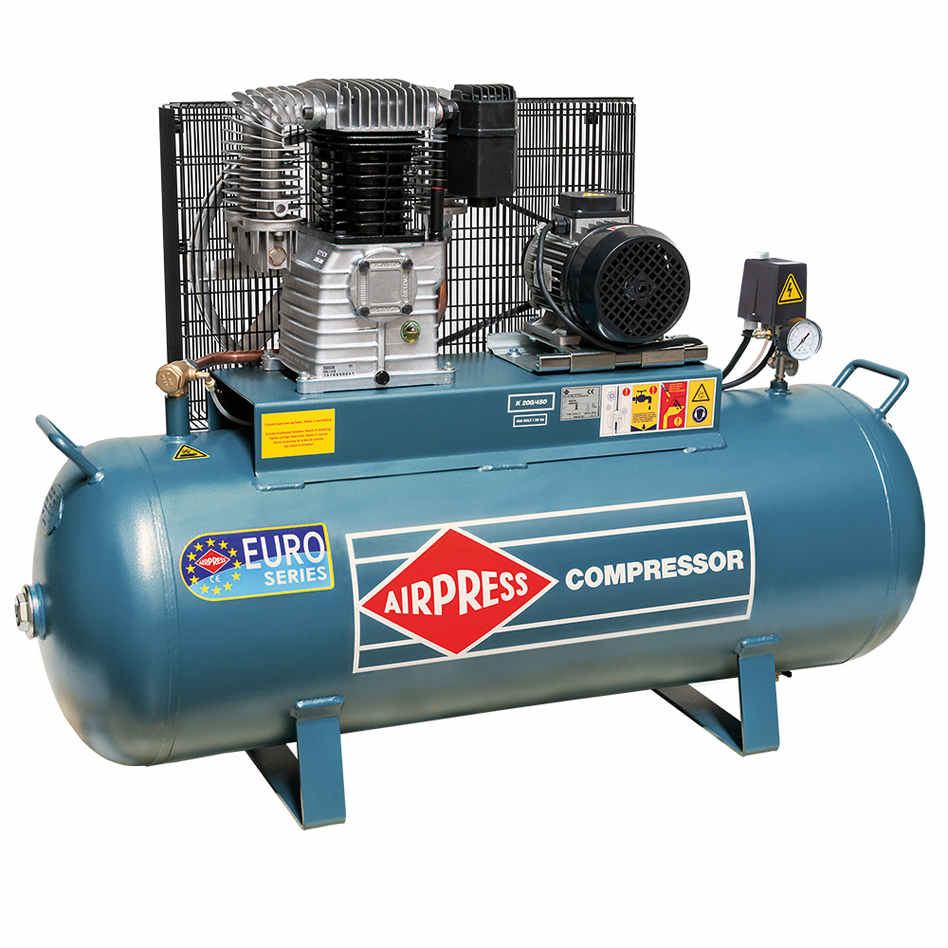

Airpress 36520-N K200-450 Compressor V-belt driven 400 Volts
K-Series industrial line equipped with the best components of the highest quality!
Features
- Extremely suitable for companies where quality and high air pressures come first.
- With the purchase of an Airpress compressor from the K-Series, you become the owner of a compressor with high industrial capacity and reliable operation.
- These compressors combine quality with professionalism.
- All compressors in the K-series run at a low speed, making them very solid and reliable.
- In addition, all compressors in the K-series are manually assembled by skilled craftsmen and are tested up to 20 bar before leaving the assembly line.
- This ensures the customer an optimal A working device that can handle the heaviest work.
- Compressors from the K-series are intended for anyone who desires flawless operation in industrial conditions and wherever an air pressure of more than 10 bar is required.
- These devices may operate in a 60%:40% ratio in a 24-hour cycle (ratio of operating time to downtime).
Technical data
- Motor power (hp/kW) 3.0/2.2
- Pump type K25
- Voltage (Volt/Hz/Ph) 400/50/3
- Operating pressure (bar) 12
- Switching (1=direct/2=Y/3=freq.) 1
- Speed (rpm) 760 (12 bar)
- Boiler capacity (l) 200
- Capacity (effective, l/min.) 314 (12 bar)
- Noise level Lwa (db(A)) 96
- Pressure (max., bar) 14
- Weight (kg) 155
Supplied as standard
- On pallet
- Manual
