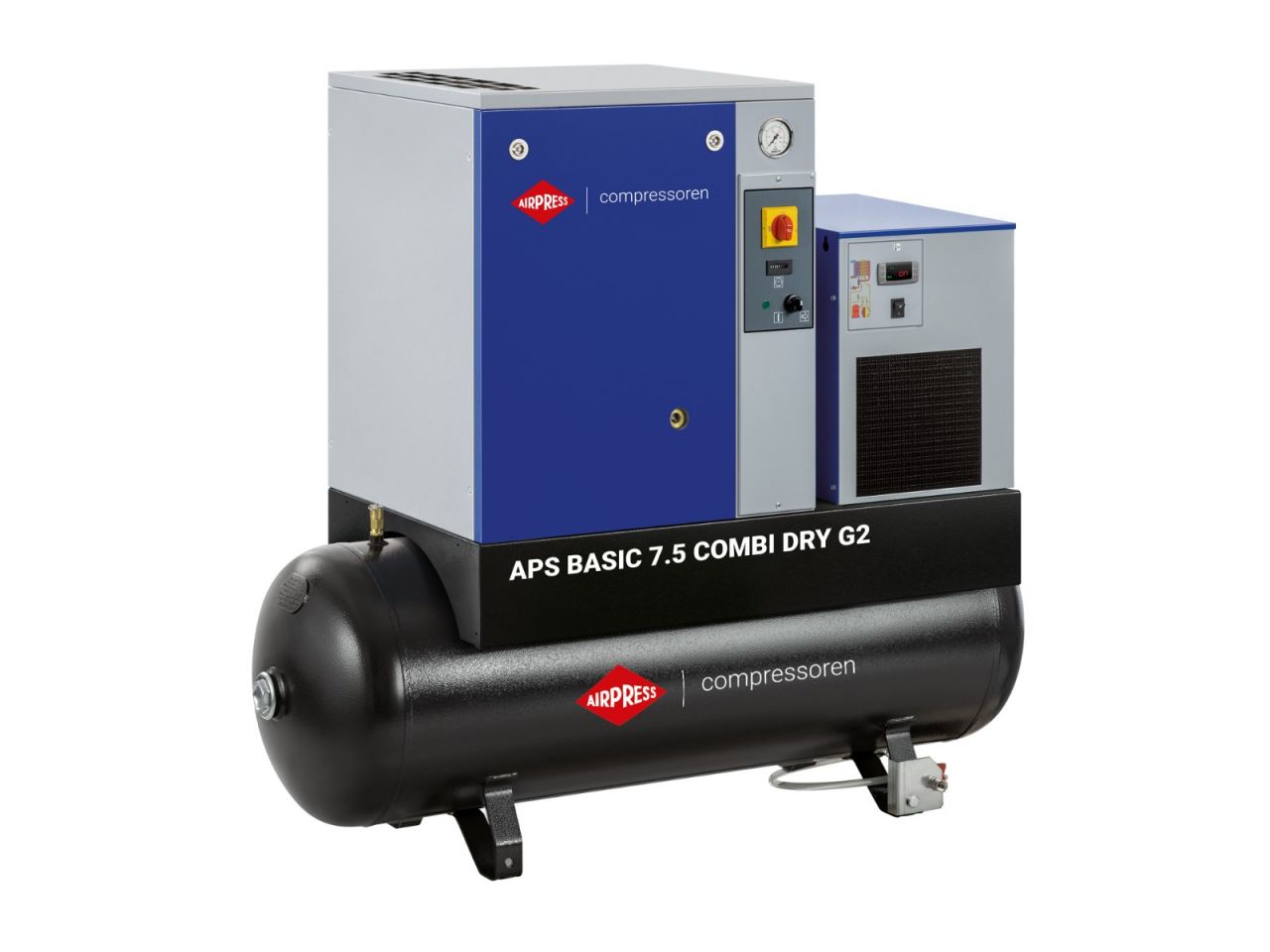

Airpress 362957 Screw Compressor APS 7.5 Basic G2 Combi Dry 10 bar 7.5 hp/5.5 kW 780 l/min 200 l
Special Features
- Screw Compressor APS 7.5 Basic Combi Dry G2 10 bar 7.5 hp 780 l/min 200 l
- The APS Basic G2 series is the entry-level series among screw compressors and consists of extremely reliable machines with low noise levels.
- The APS 7.5 Basic Combi Dry G2 is a screw compressor with a 200 l pressure vessel and APX 9 dryer featuring a more efficient screw block than its predecessor and is a compact model.
- Due to the more efficient screw block, this series of screw compressors boasts approx. 15% higher compressed air output.
- The screw compressor is easy to operate, as it features a start/stop system with overrun time, meaning all operating hours are pump hours.
- The major advantage of a screw compressor is that it has a 100% load capacity. Due to the correct configuration of the installation, its applicability is very wide.
- When a low noise level is desirable but air consumption is low, a screw compressor can still be installed, for example with a heating belt and the right pressure vessel.
- The 7.5 hp APS 7.5 Basic Combi Dry G2 features a C43 screw block and has an operating pressure between 5.5 and 10 bar.
- The new C43 screw block in the Basic series is the replacement for the C40 screw block.
- Just as reliable as its predecessor, but larger and with smaller tolerances, resulting in 15% more air output at the same power, which ensures energy savings.
- The screw block is V-belt driven, has a motor classification of IE3 and protection degree IP55.
- The rotational speed of the screw block is 2950 RPM, delivering an effective capacity of 780 l/min op.
- The ambient temperature should be between 1°C and 46°C for optimal performance. When installing the screw compressor, keep in mind that it requires three-phase power to operate.
Suitable for
- Car garages
- Horticulture
- Packaging industry
- Metalworking company
Technical data
- Weight (kg) 210.00
- Length, Width, Height (cm) 143 x 60 x 126
- Load (work/rest %) 100/0
- Power (HP/kW) 7.5 hp / 5.5 kW
- Motor efficiency class IE3
- Motor Type AC
- Drive V-belt driven
- Control panel ON/OFF
- Dryer voltage 230 V / 50 Hz / 1 Ph
- Pressure vessel Yes
- Pressure vessel capacity (l) 200
- Galvanized pressure vessel No
- Maximum pressure (bar) 10
- Effective capacity (l/min) 780
- Effective capacity (m³/h) 46.8
- Noise level dB(A) (0 m) 66
- Noise level dB(A) (4 m) 46
- Switch-on pressure (bar) 8
- Plug type(s) EU
- Refrigerant R513A
- Cooling air volume (m³/h) 504
- Main air connection (") 3/4
- Oil-freeNo
- Oil capacity (l)3.20
- Pump speeds (RPM)7263
- Screw block C43
- Steps1
- StartingY-∆
- Voltage (V)400 V / 50 Hz / 3 Ph
- Frequency regulated (IVR)No
- Start/Stop timerYes
Scope of delivery
- On Pallet
